WIP-Macross YF-Type02

[ImChris5115]

[Shawn]

Could you tell us more about this project? It looks very good.

[Knight26]

This is cool, are you designing your own VF to build as a toy or 3D print?

[ImChris5115]

On 8/15/2023 at 9:06 AM, Shawn said:

Could you tell us more about this project? It looks very good.

Hi Shawn, thank you. This little project is one of the six vf designs I’m planning. This is the second design and still a very early prototype in trial and error for parts design. Call it YF and a size of 383.60mm x 285mm x 67.50mm. Close to a 1/48 bandai VF-1. Three modes without swapping parts. Parts printing using phrozen 8k resin printer. As for the prototype, I deactivated the layers of panel linings and some small details. Printed in 0.05 layers of basic aqua resin. Hopefully, next update could bring out a finished assemble test product.

[ImChris5115]

On 8/15/2023 at 9:39 AM, Knight26 said:

This is cool, are you designing your own VF to build as a toy or 3D print?

Hi, yes as a toy and to be able to 3d print out.

[Bolt]

Looks great !

[ImChris5115]

[ImChris5115]

[ImChris5115]



Edited August 17, 2023 by ImChris5115

[ImChris5115]

[ImChris5115]

Type 01 & 02

[Knight26]

These look awesome, do you plan to sell/release the STLs?  Or are you going produce them yourself for sale?

[Bolt]

On 8/17/2023 at 9:51 AM, ImChris5115 said:



Very nice 👍🏼

[ImChris5115]

On 8/19/2023 at 8:58 PM, Knight26 said:

These look awesome, do you plan to sell/release the STLs?  Or are you going produce them yourself for sale?

properly will release STLs to specific 3D Market sites. For now, i don't have any plans to produce it. I am now trying on all parts fittings, adjusting tolerance in between parts.

[ImChris5115]

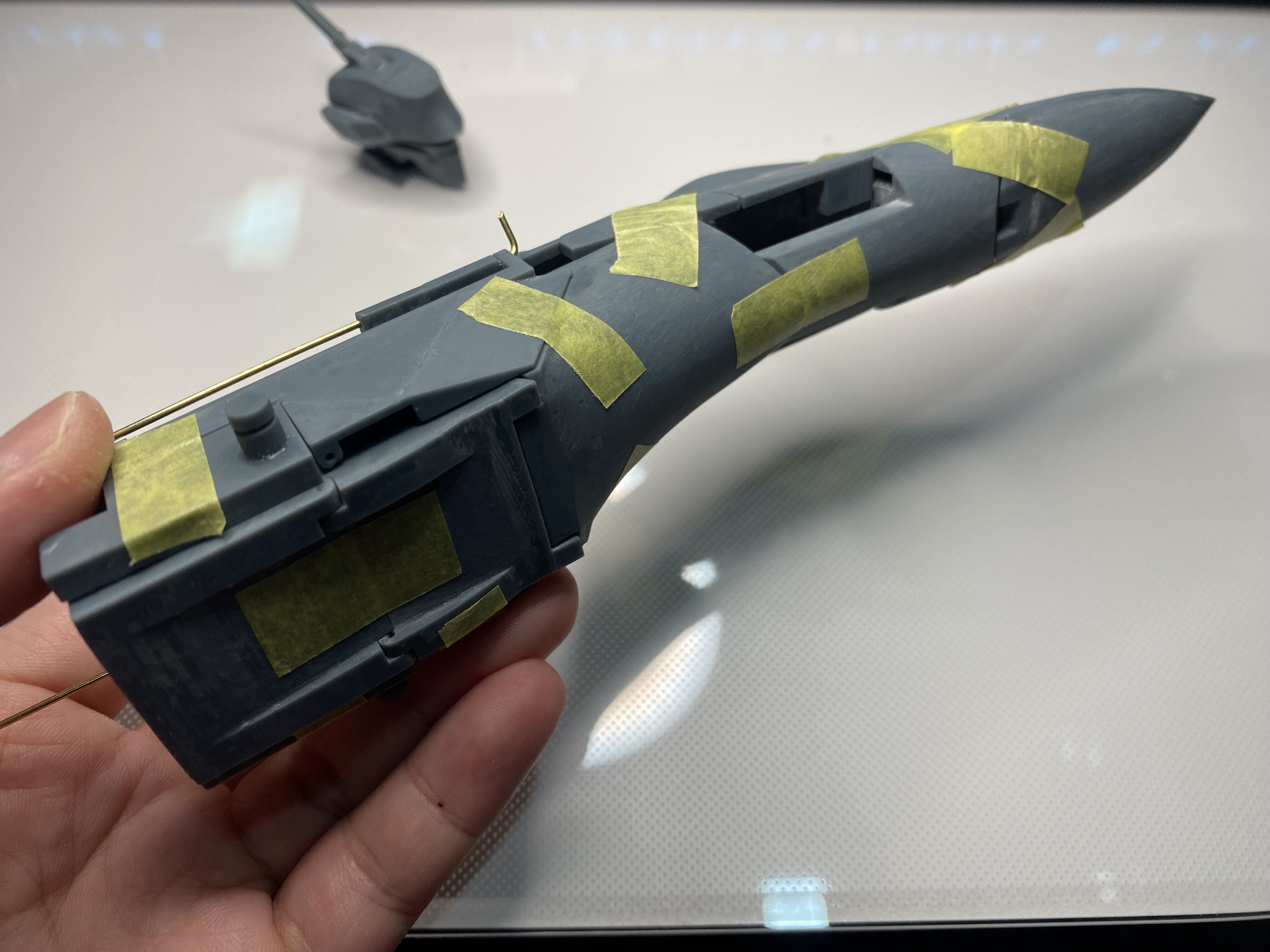

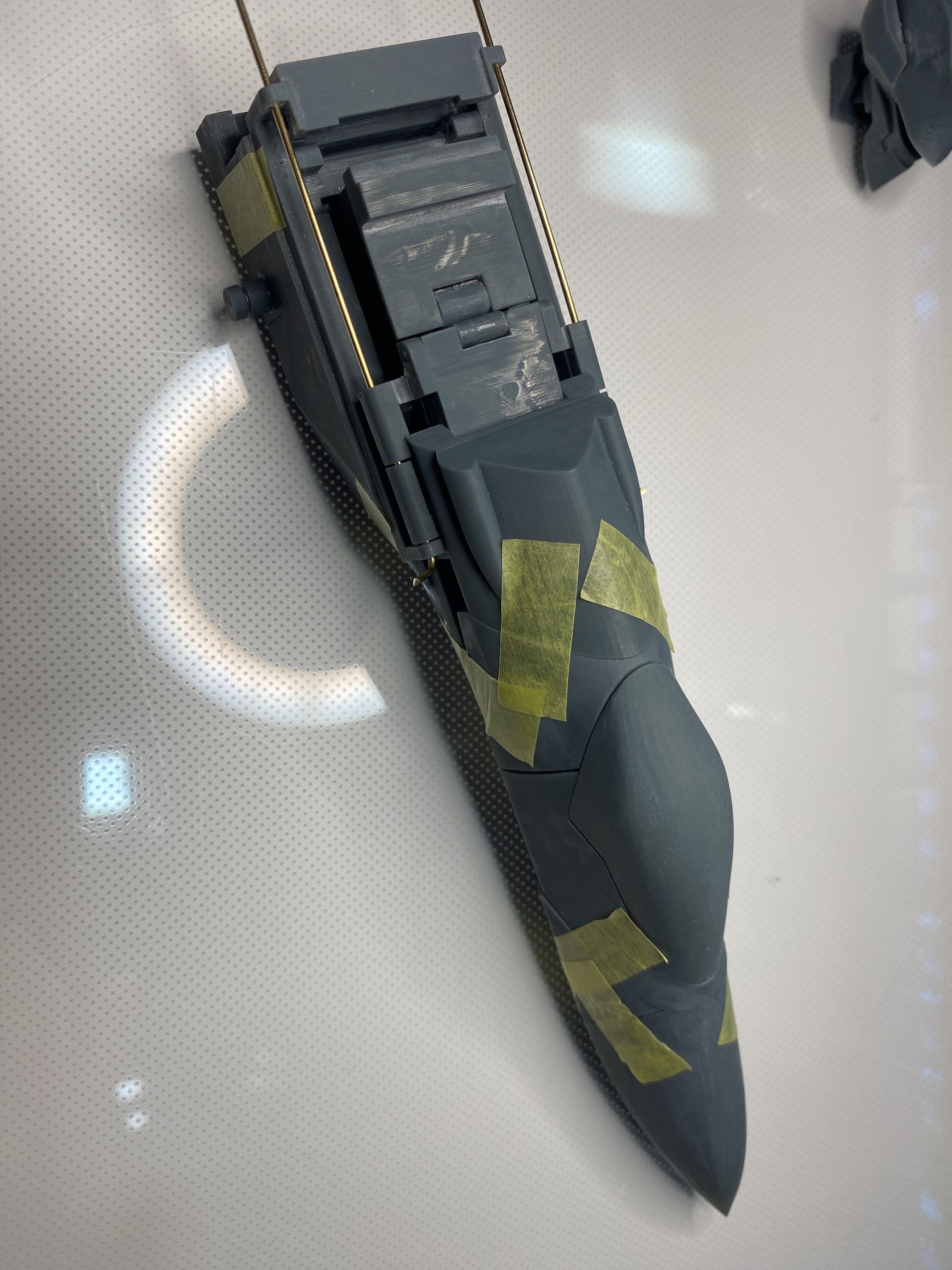

a little progress....

[Shawn]

This is insane!

Thank you the updates, I'm enjoying seeing this build progress!

[ImChris5115]

9 minutes ago, Shawn said:

This is insane!

Thank you the updates, I'm enjoying seeing this build progress!

Thank you, bro

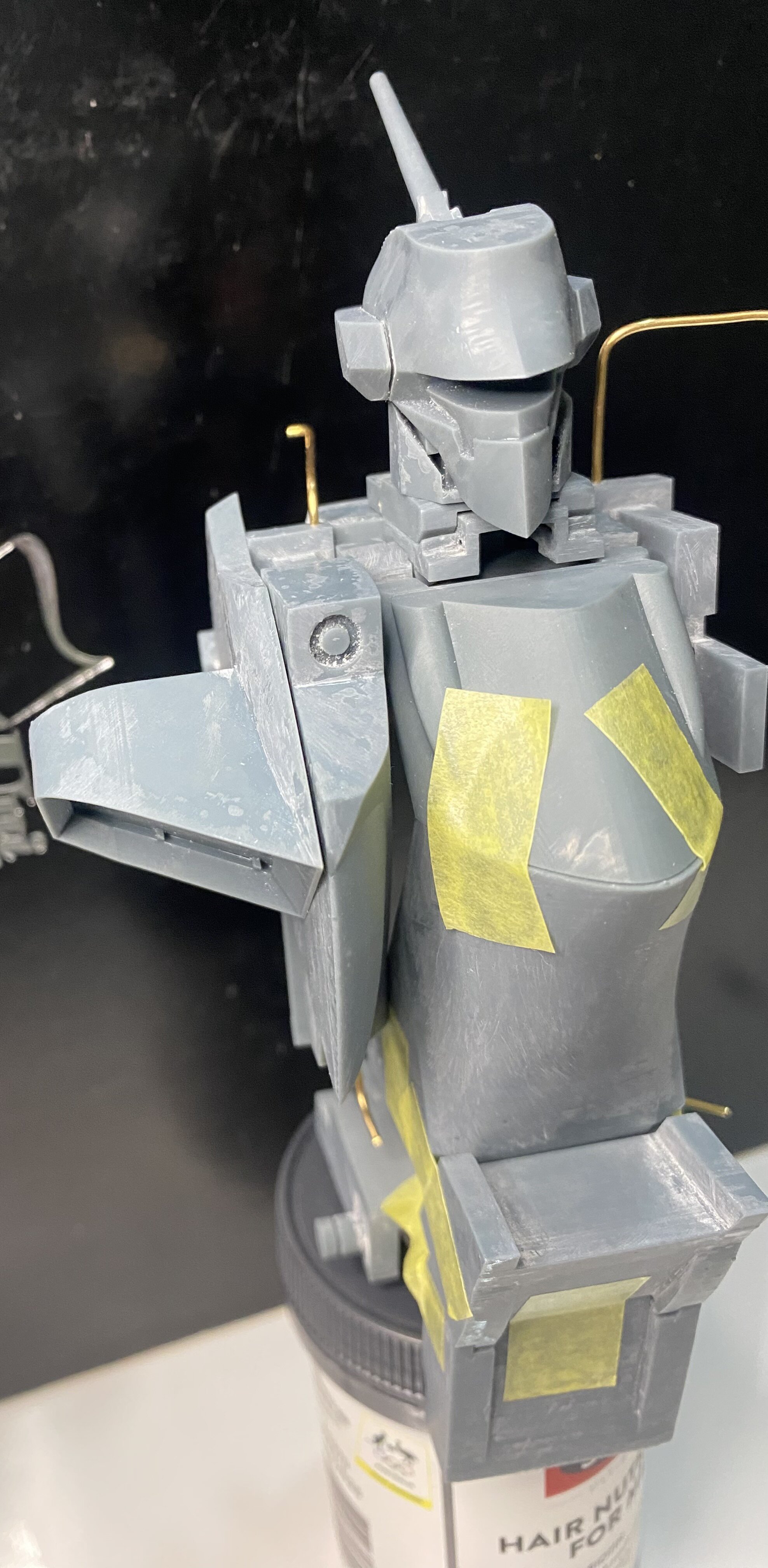

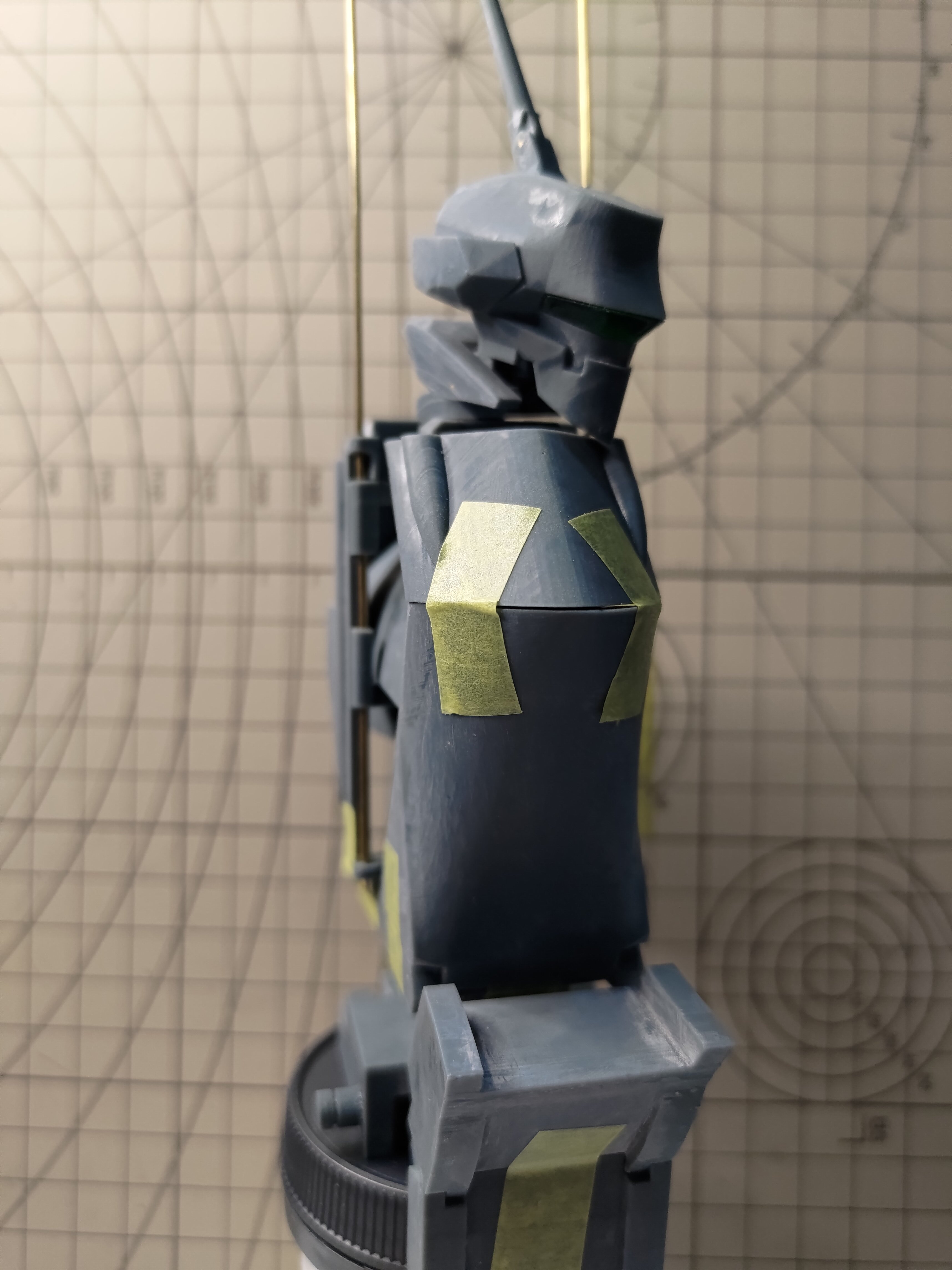

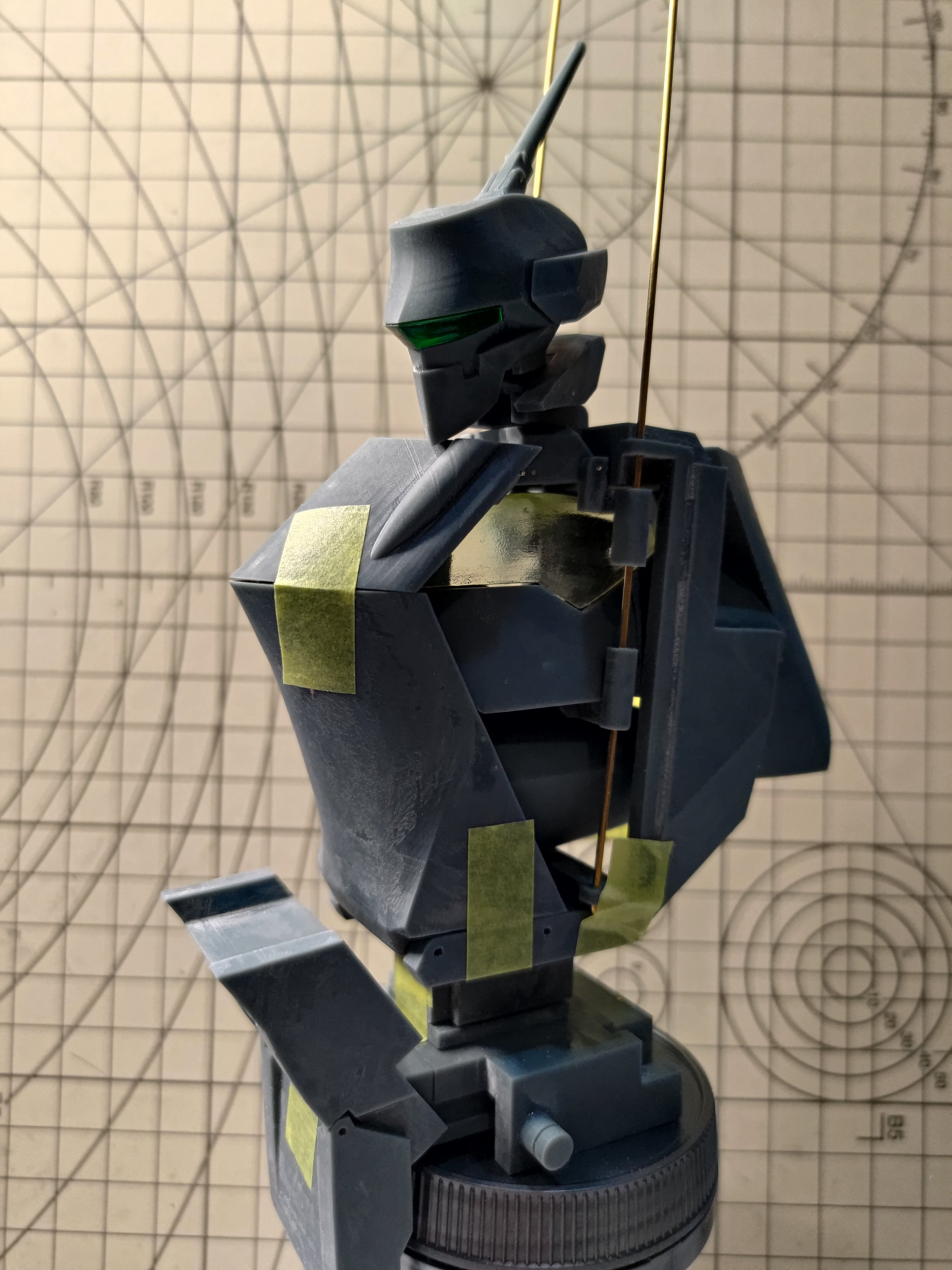

Here's the battroid mode..

[ImChris5115]

so far so good transforming from battroid mode to fighter mode..

[ImChris5115]

[Bolt]

Great job there 👍🏼

[Knight26]

Amazing wrok so far, can't wait to see the final product.

[Shawn]

This is like watching an on-line job application for someone applying to Arcadia in their design department



[Test_Pilot_2]

The hands of VF gods at work. Love that it started with fighter mode first.

[ImChris5115]

Type 02-First version test printed parts ready to be assembled......341 pcs

Edited September 9, 2023 by ImChris5115

[Bolt]

Awesome. I'm not getting a printer anytime soon, unfortunately. But great job, looking forward to seeing more 👍🏼

[ImChris5115]

Hmm....need to re-design few crucial parts....

6 hours ago, Bolt said:

Awesome. I'm not getting a printer anytime soon, unfortunately. But great job, looking forward to seeing more 👍🏼

Thanks, man; it's still incomplete and can't be uploaded to any 3D marketplace any sooner ....

[Knight26]

341 pieces, dang hope you are also putting together some robust instructions.  Looking awesome though.

[ImChris5115]

[ImChris5115]

Edited September 16, 2023 by ImChris5115

[ImChris5115]

Hello, now left Hand, Leg and wing..

[jenius]

Wow, fantastic stuff so far.

[MKT]

Very, very interesting! The valk design hits all the right notes..

Edited September 17, 2023 by MKT

[Knight26]

This is looking awesome

[twich]

It looks rather large, what scale are you aiming for? This is great work! I wish I had the money, time and ability to print and build something like this! Can’t wait for more updates!

Twich

[Knight26]

6 hours ago, twich said:

It looks rather large, what scale are you aiming for? This is great work! I wish I had the money, time and ability to print and build something like this! Can’t wait for more updates!

Twich

I'm guessing 1:48 based on the ejection seat and cockpit.
