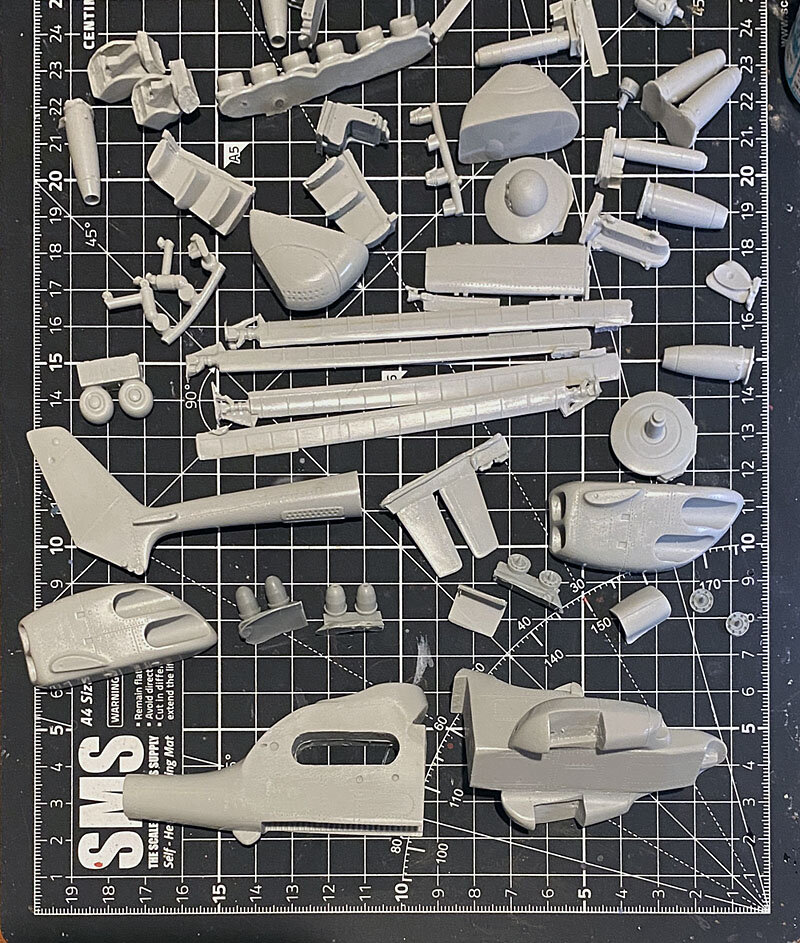

Mintox Posted July 9, 2021 Posted July 9, 2021 This is a commission build for a customer. It is Moscato 1/72 XV Commanchero Gunship. This is the initial parts breakdown of the kit. Most parts are very well cast, have some very fine details e.g. rivets and other little panels and fit is very good - so far. Customer wants it in the US Navy low vis grey. Interestingly John put a bomb bay in the middle which is kind of a nice touch. Customer wants the model displayed with the landing gear retracted. Some parts such as the gun barrel will need to be replaced as it is lacking in detail to my eye. Likewise the the rear rotor blades aren't very well done (very thin and floppy) and will need be replaced with a 1/72 Russian Hind rotors as this is what John Moscato used on the master. Quote
derex3592 Posted July 9, 2021 Posted July 9, 2021 Very cool! These are SO rare. Can't wait to see it all built up and painted! Good Luck! Quote

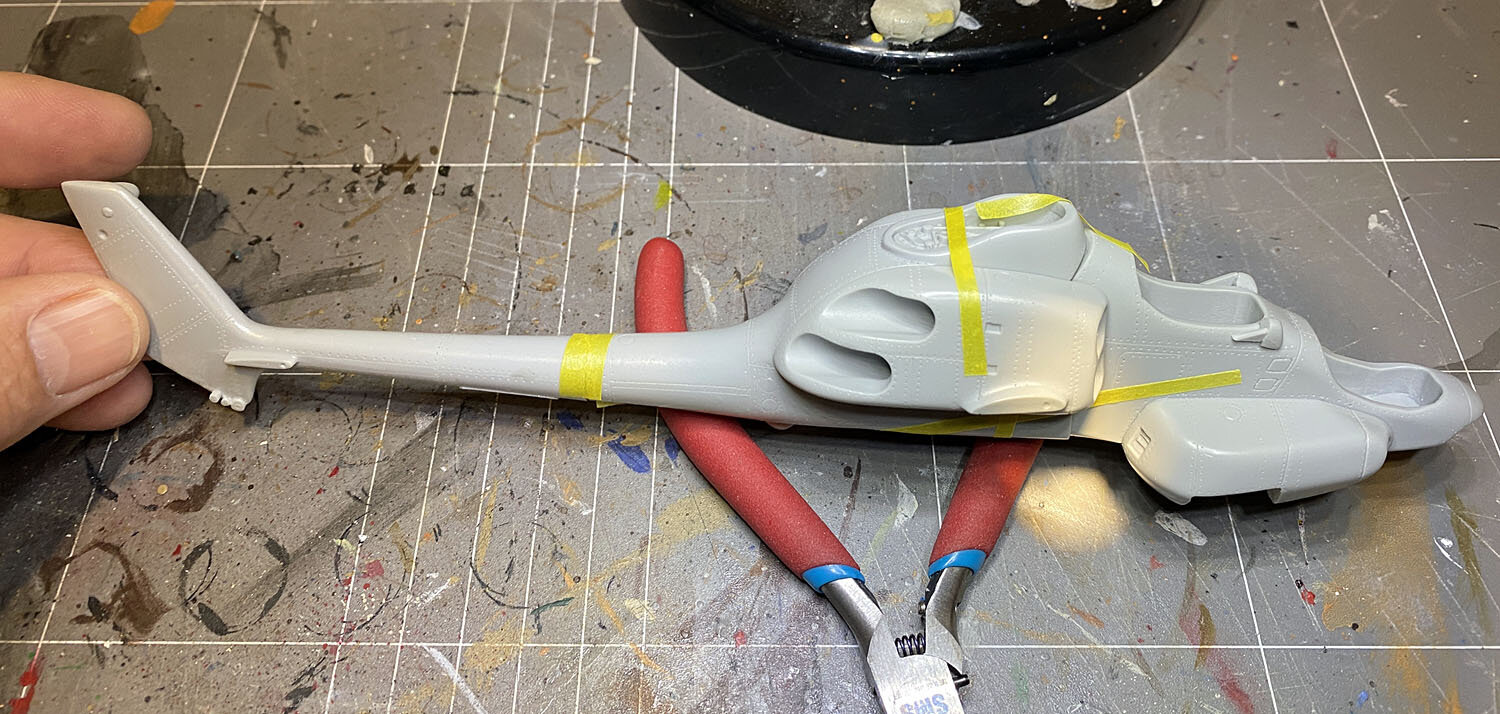

Mintox Posted July 10, 2021 Author Posted July 10, 2021 A quick part fit of the main fuselage halves, the engine pods and tail. You can see some of the fine detail on this kit. Very tasty. Quote

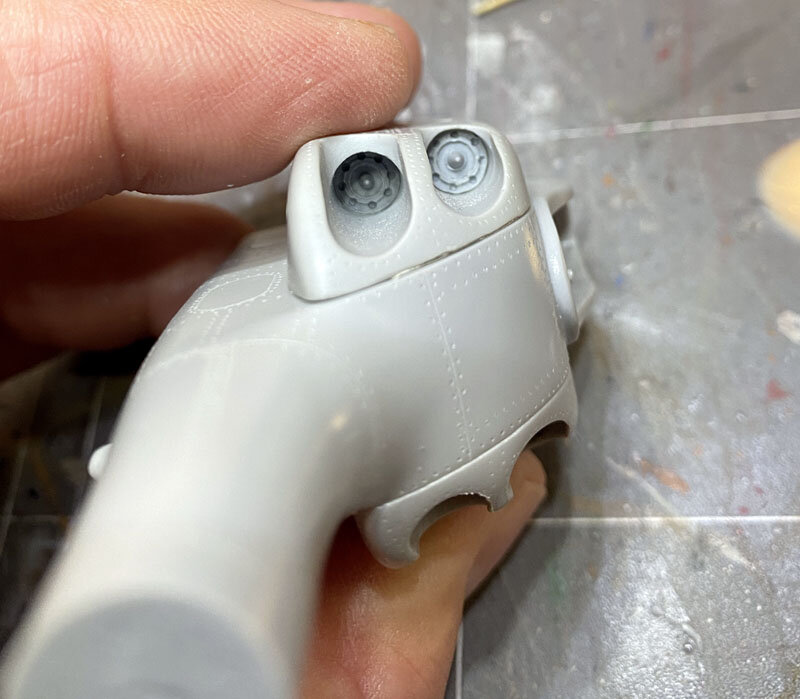

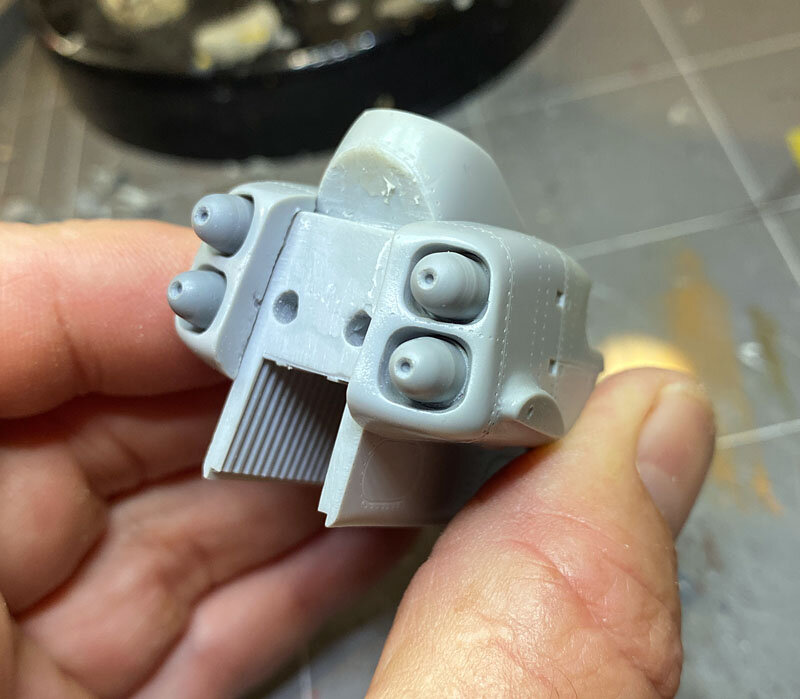

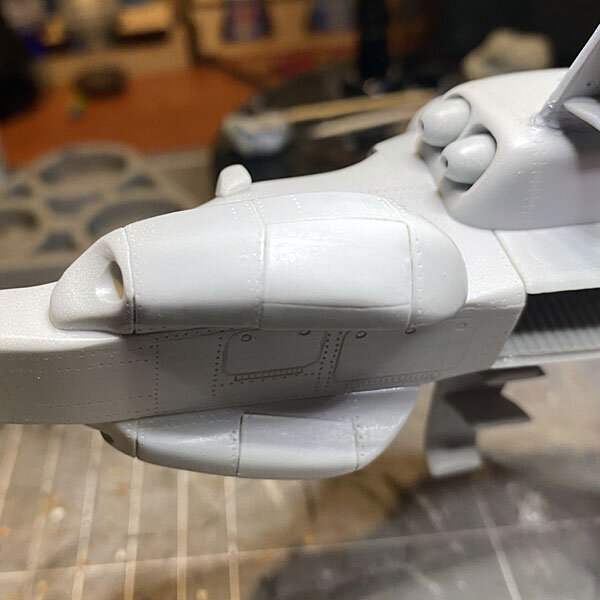

Mintox Posted July 10, 2021 Author Posted July 10, 2021 More progress shots. Here Ive fitted the engine intake thingies and exhausts. In the top picture you can see the internal weapons bay. Quote

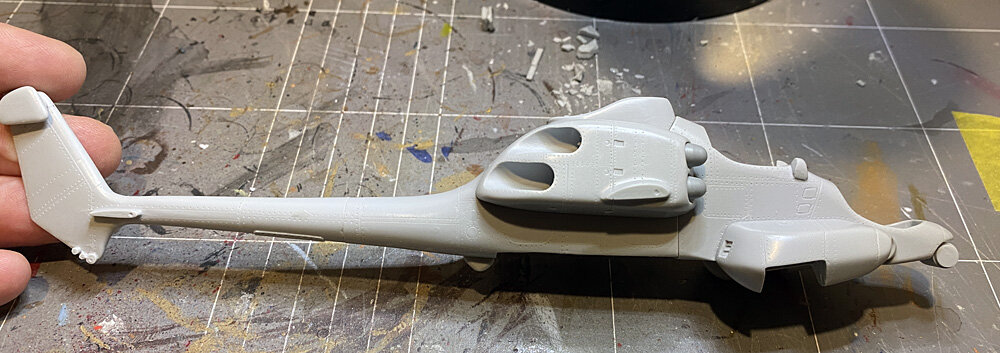

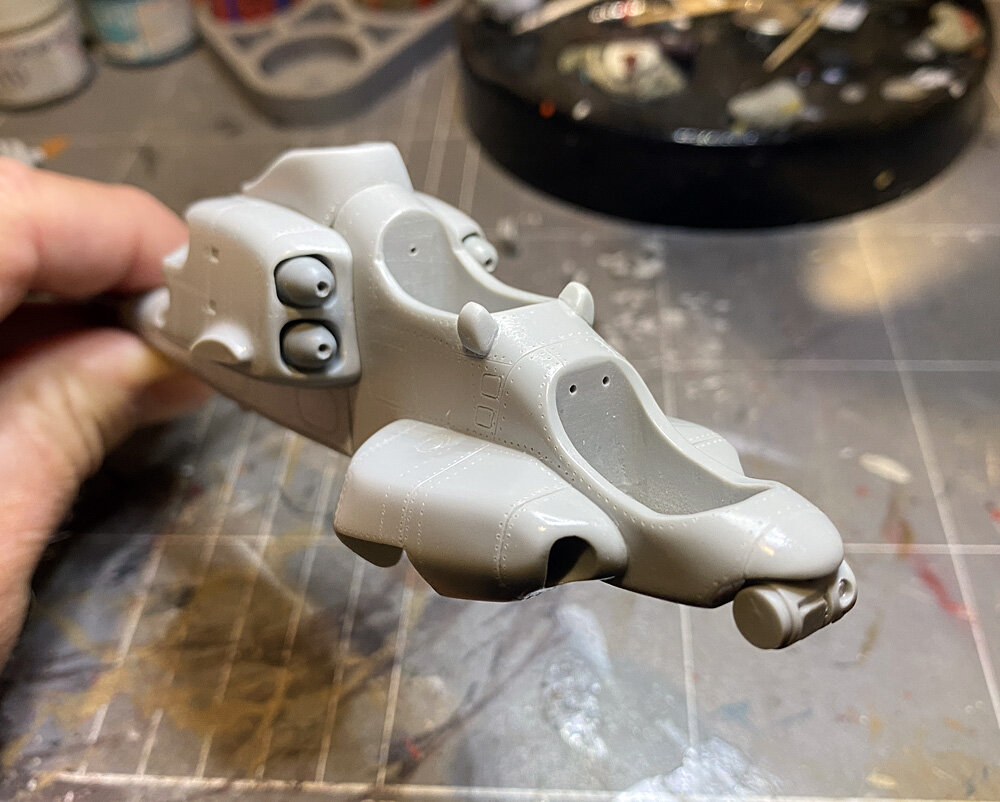

Mintox Posted July 11, 2021 Author Posted July 11, 2021 More progress shots. Fuselage is now all together including engine pods and forward sensor and rear tail mounted sensor dome. Quote
Mintox Posted July 11, 2021 Author Posted July 11, 2021 38 minutes ago, coronadlux said: I'm excited to see what you do with it. Yeah Ive always loved the "other" designs in Macross that dont get much love. This is one of them and am excited to be able to build one for a customer. Quote

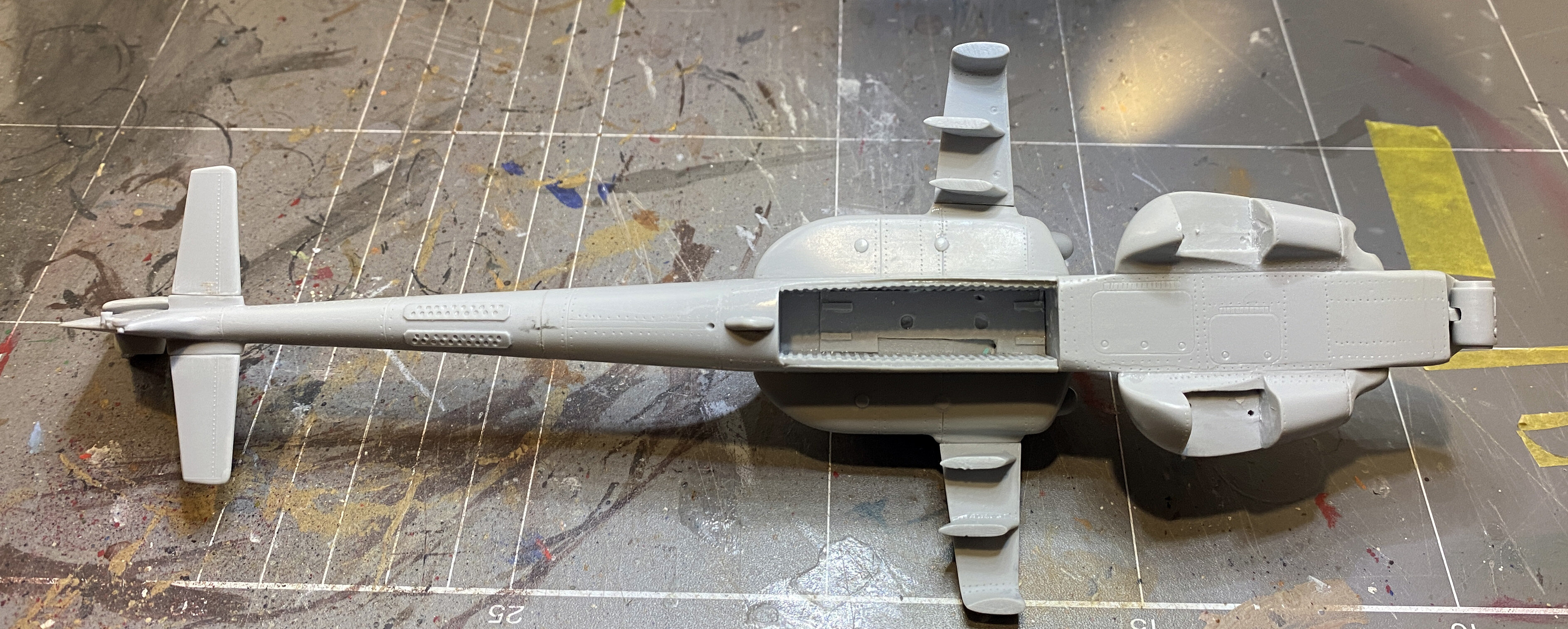

Mintox Posted July 12, 2021 Author Posted July 12, 2021 A shot of the underside showing the internal weapons bay. Its a bit spartan so I'll need to add some detail to this and find some suitable ordnance. Wings are on but need some filling and sanding to make them sit flush against their mounting points. Quote
jardann Posted July 17, 2021 Posted July 17, 2021 Looks like you're off to a great start! It's so cool to see one of these kits being completed. It's a great subject and fantastic that John produced it. Quote
Mintox Posted July 18, 2021 Author Posted July 18, 2021 16 hours ago, jardann said: Looks like you're off to a great start! It's so cool to see one of these kits being completed. It's a great subject and fantastic that John produced it. I know right? Im amazed there isnt a ton of them on the net but I could only find the one example completed. Now it'll be two! Quote

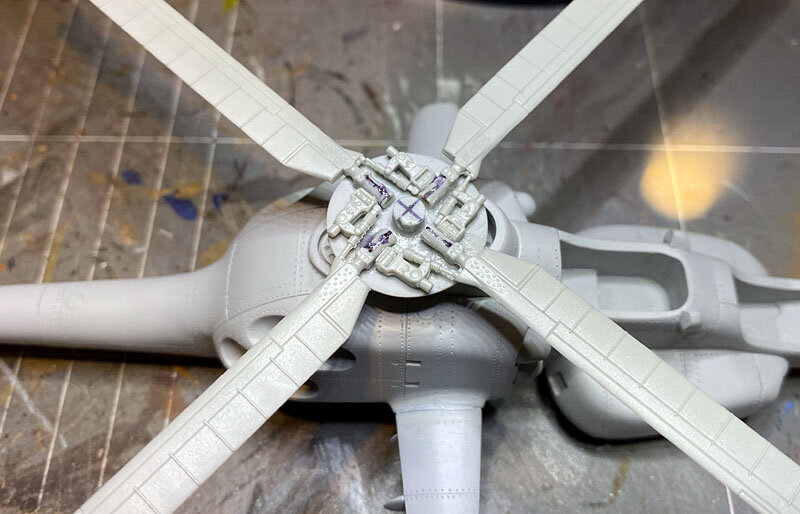

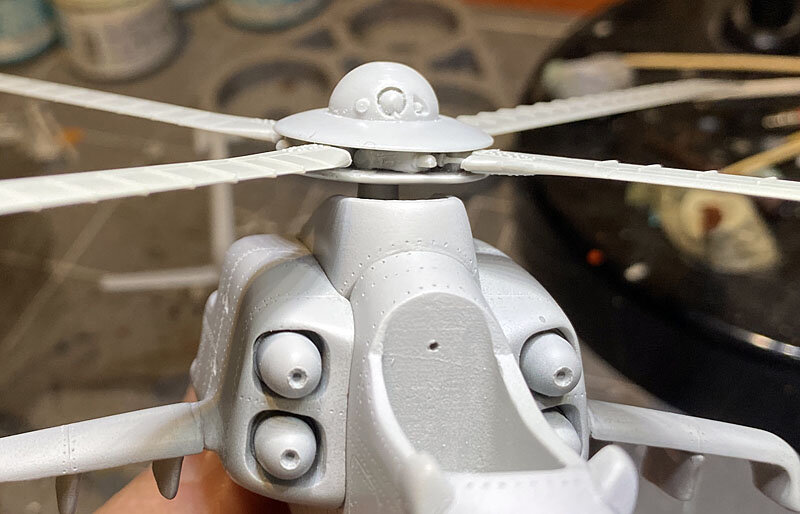

Mintox Posted July 18, 2021 Author Posted July 18, 2021 Progress has slowed a little. Filling in some gaps, redoing some of the rivets that were sanded off etc. Here Im messing around with the main rotors. Again pretty good fit and only a couple of pour tabs to cut off and sand. This is temporary and I'll need to clean up the blades and straighten a couple of them. Quote

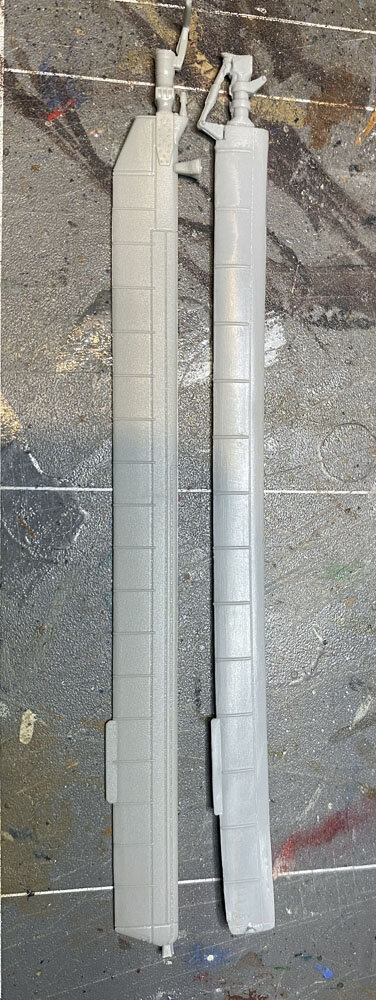

Mintox Posted July 19, 2021 Author Posted July 19, 2021 Ok picking up pace again. After reviewing the main rotors in the kit I decided to swap them out for newer kit versions. I used Hobby Boss 1/72 MI-24V HIND-E blades. Nicer and crisper and I dont need to worry about straightening things out. And they look more 'modern' than the ones John used. See the side by side comparison below. I also took the liberty of adding some rotor hub detail even though you'll never see it once the sensor mast top is glued in place. Quote

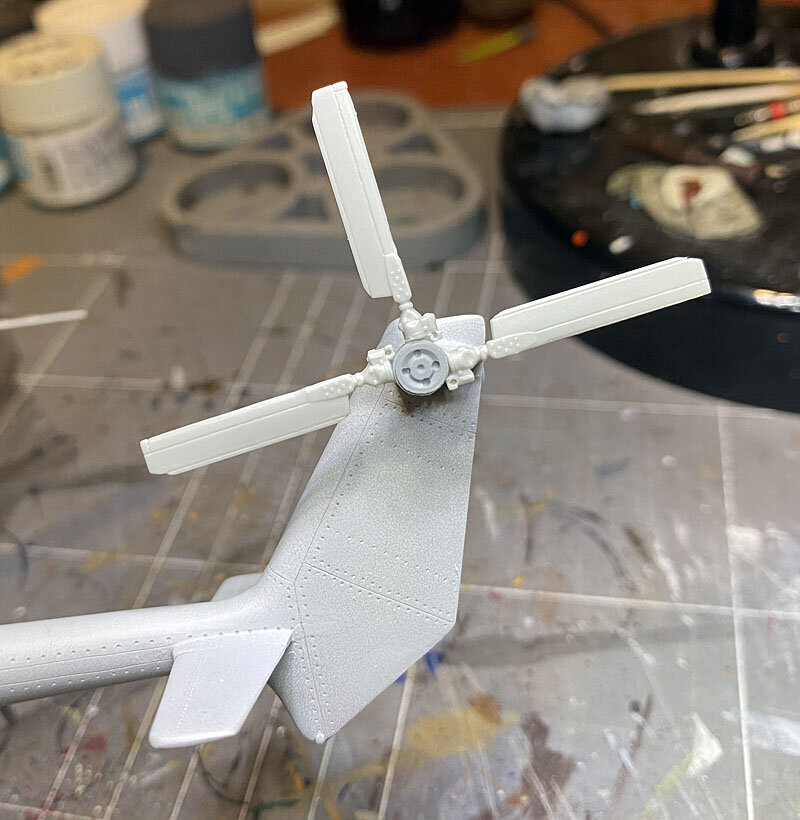

Mintox Posted July 20, 2021 Author Posted July 20, 2021 The tail rotor has gotten some attention. Kit blades replaced with HB HIND rotors using Johns hub to mount them on. Im waiting for the second kit to arrive to get the fourth blade as the HIND is a three blade tail rotor and I need 4 donor blades. Quote

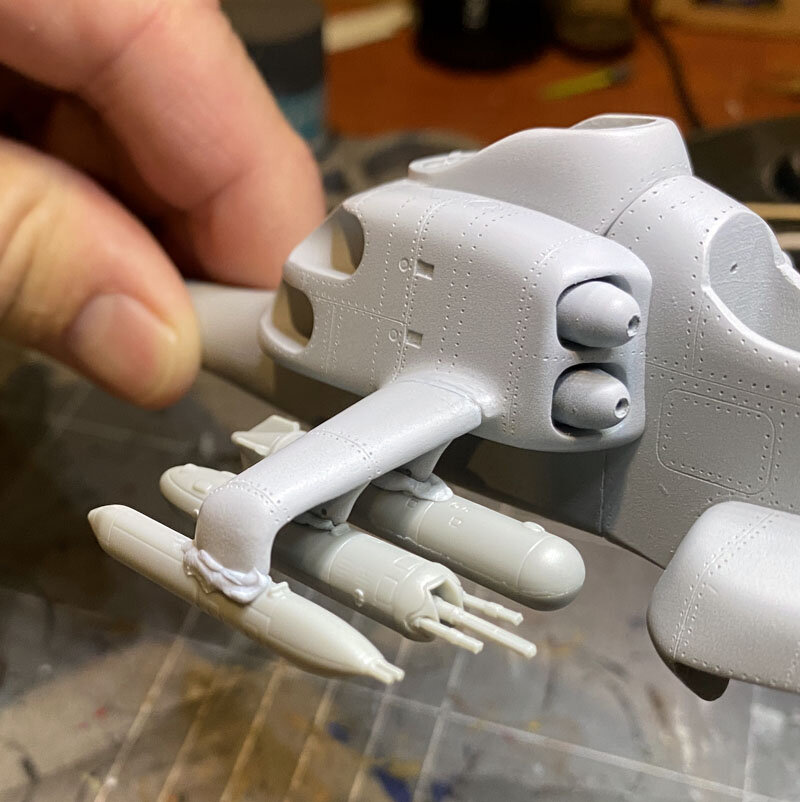

Mintox Posted July 20, 2021 Author Posted July 20, 2021 Client has asked for alternate weapons load outs. Ive put some of the funky HIND weapon pods together. The inside is a large bomb (I think), the middle one is a gun pod with three Gatling guns, two of one caliber and the center one a larger caliber? and then the outer one is a twin gun pod. The internal weapons bay will receive some attention soon. I plan on putting two bombs inside this bay once I've added some extra detail. Quote
MechTech Posted July 23, 2021 Posted July 23, 2021 That's looking great! I'm also glad to see another kit of this cool subject getting built. They're rarer than unicorns! - MT Quote
captain america Posted July 26, 2021 Posted July 26, 2021 It's been a while since I've seen one of these babies. Keep up the great work! Quote
Mintox Posted July 27, 2021 Author Posted July 27, 2021 8 hours ago, captain america said: It's been a while since I've seen one of these babies. Keep up the great work! Thanks John. Im just happy to be able to touch and build one. Ill resist asking you nerdy questions as I have your original build diary of the kit to follow which has been very handy especially being able to know what some of the donor parts you used were, like the Hind rotor blades. I just wish I had the patience to do what you do. And you keep up the great work too! Quote

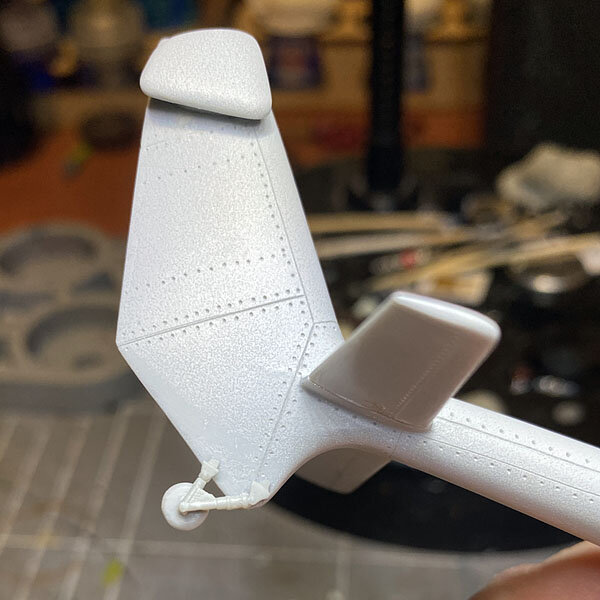

Mintox Posted July 27, 2021 Author Posted July 27, 2021 Quick progress update. Added a new tail wheel and main gear landing doors. Quote

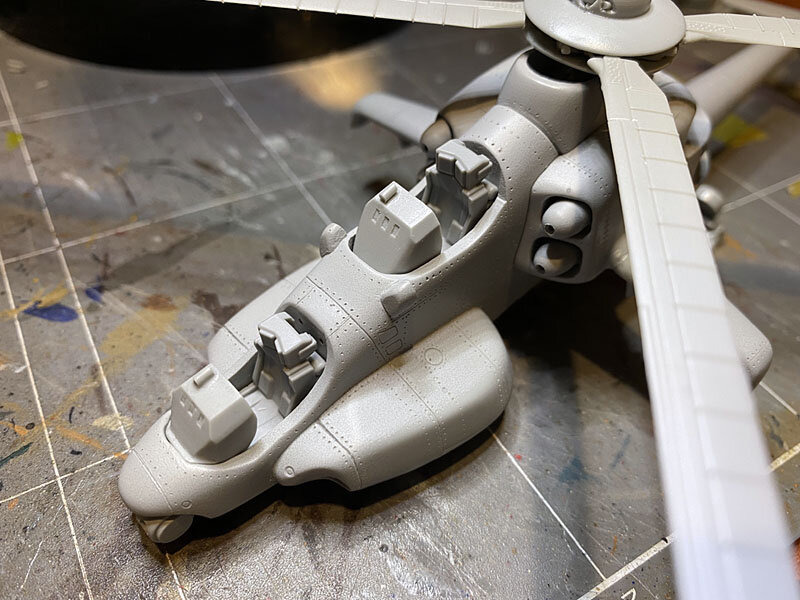

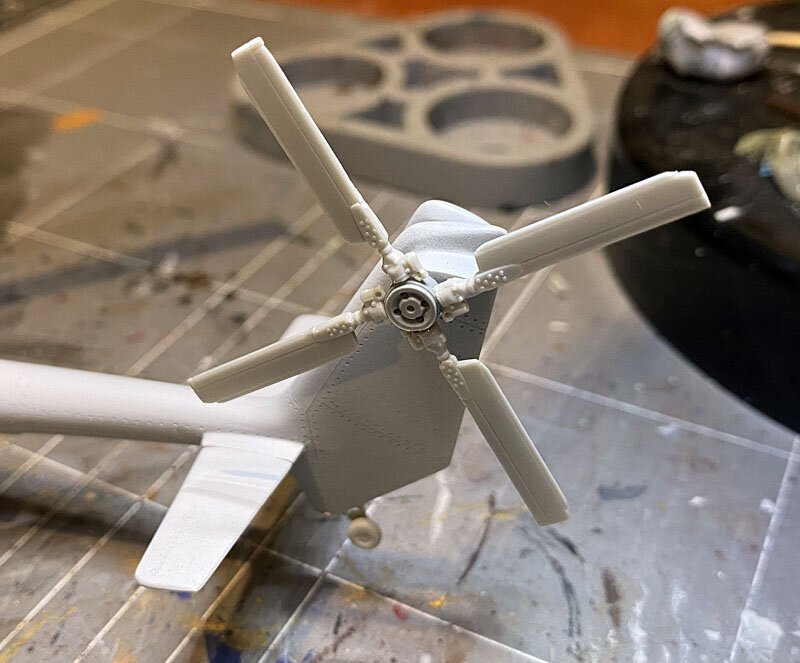

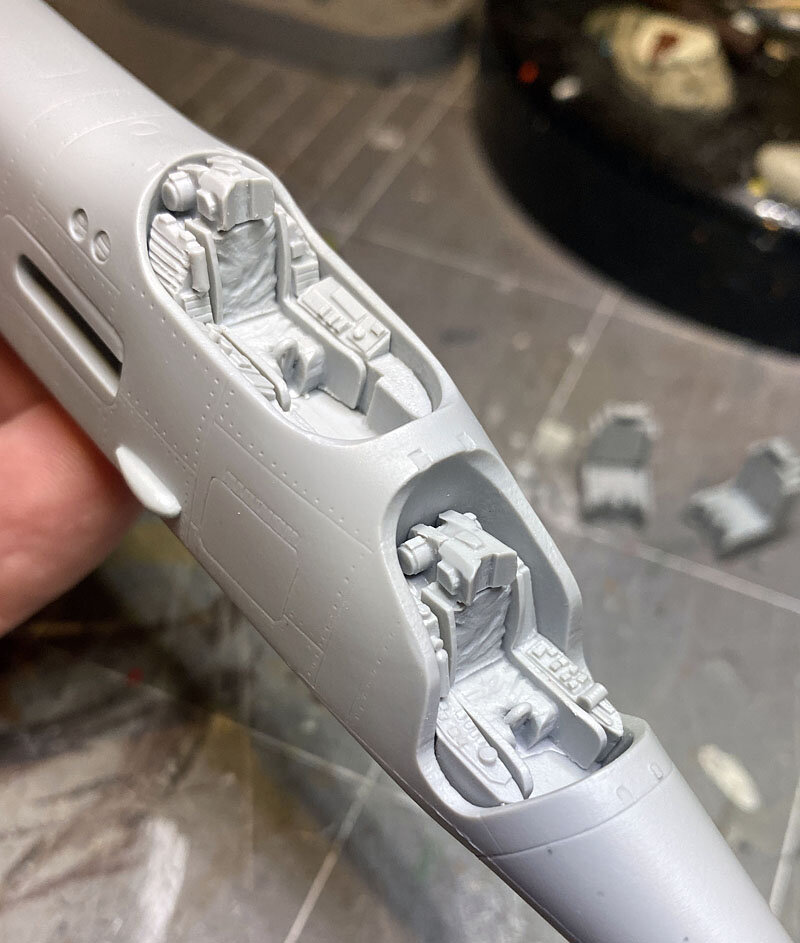

Mintox Posted July 30, 2021 Author Posted July 30, 2021 The second HIND arrived today so I was able to finish off the tail rotor Also swapped the seats from another kit as they were a little more detailed. I may need to alter them slightly to sit a smidge lower in the cockpit but I wont know until I finish cutting the canopies and test fitting them. The surprise kit donor. This will be another client build later on. Quote
sierra-ii7 Posted July 30, 2021 Posted July 30, 2021 Looks amazing! Can’t wait to see the rest of this build 😃 Quote
derex3592 Posted July 30, 2021 Posted July 30, 2021 @Mintox - I would be very interested in seeing and perhaps discussing with you the cutting and fitting the canopies on the Cat's Eye...That's the part that is keeping me from finishing mine at some point. Chopper looks great! Quote
Mintox Posted July 30, 2021 Author Posted July 30, 2021 6 hours ago, derex3592 said: @Mintox - I would be very interested in seeing and perhaps discussing with you the cutting and fitting the canopies on the Cat's Eye...That's the part that is keeping me from finishing mine at some point. Chopper looks great! More than happy to help out. And yes its a little sleep loss inducing process as there is no room for error. Which kit of the CatsEye do you have? Quote
derex3592 Posted July 31, 2021 Posted July 31, 2021 I have the Moscato one. He was nice enough to sell me one a few years back out of his stash. Quote

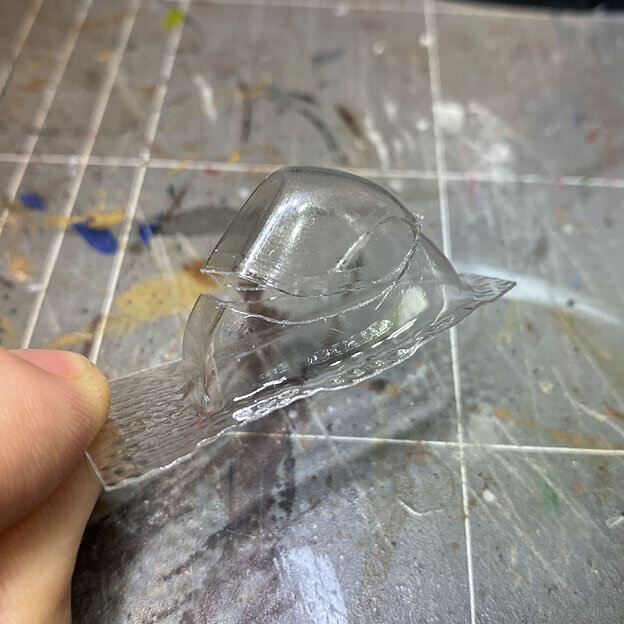

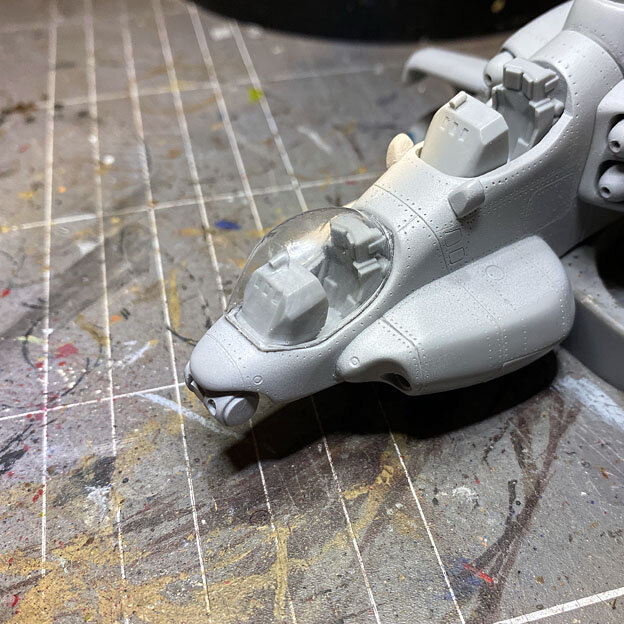

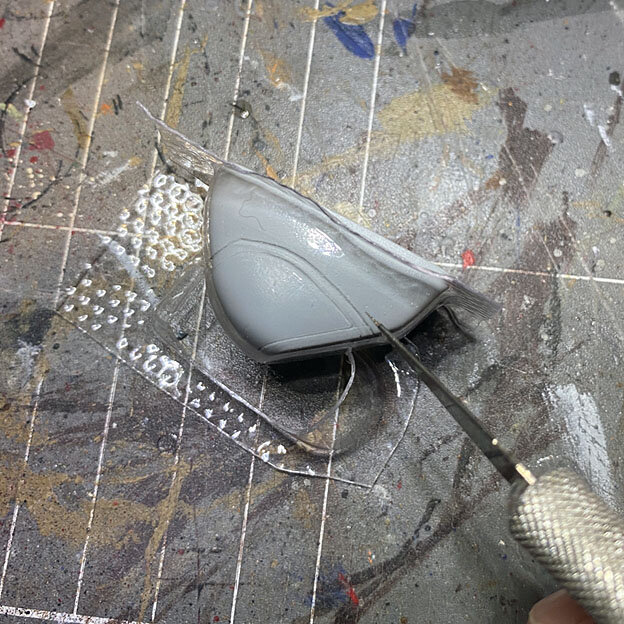

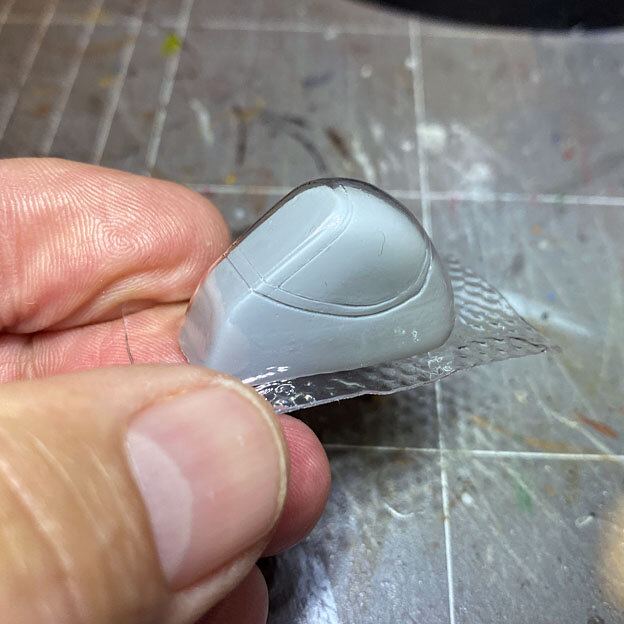

Mintox Posted July 31, 2021 Author Posted July 31, 2021 Ok here is my process for cutting the vacformed canopy for the Commanchero. John supplied solid versions of the canopy (Im assuming these are the molds used to vacform the canopies). So I started by inserting the mold into the vacform part: Then using a new blade I starting by cutting as close but not ON the canopy edge line to give me some room to sand the canopy to shape. I probably left about 0.5mm clearance to use to shape and sand and test fit. Partially cut canopy: ...And you should be left with something that will kind of fit in a crude way: After what seemed like hours of VERY careful sanding, this is the fit I managed to get. I still need to polish the canopy to try and get it clearer than it is. and to smooth the edges a bit more. Quote
Mintox Posted August 1, 2021 Author Posted August 1, 2021 22 hours ago, derex3592 said: I have the Moscato one. He was nice enough to sell me one a few years back out of his stash. Nice. Johns stuff is pretty awesome. He captures the lines of the design well. If there is something specific you want to ask please do so. Just PM me. Quote

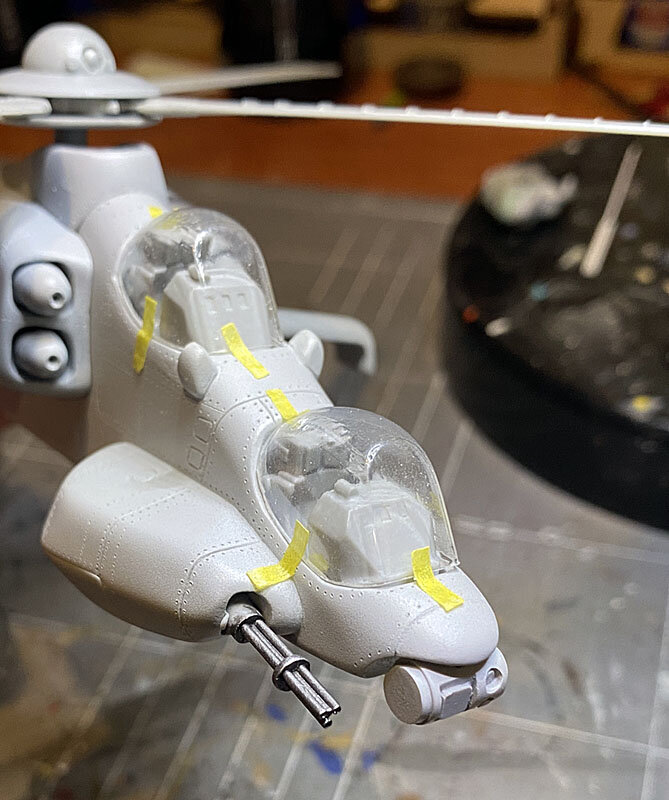

Mintox Posted August 1, 2021 Author Posted August 1, 2021 Cut and test fitting the rear - Pilot? - canopy. Also messing around with a scratch built rotary cannon. Quote

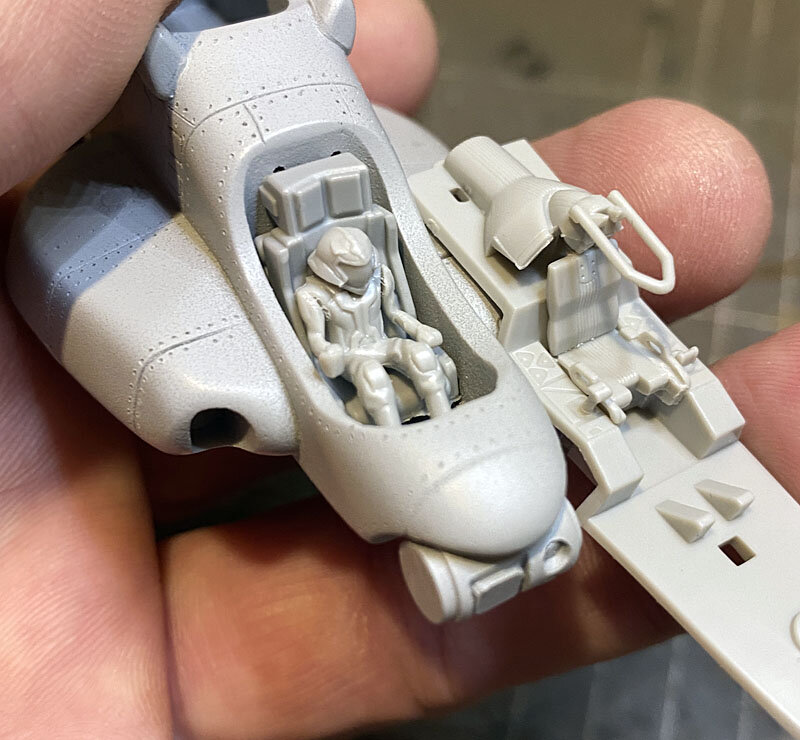

Mintox Posted August 4, 2021 Author Posted August 4, 2021 So we have a slight issue with scale or I should say a pilot scale issue. The below is a comparison between the SV-51 cockpit and the Commanchero cockpit with the SV pilot sitting in it. Either the SV is small or the Commanchero offers lounge chair rides for its pilots! Note Im not going to use the SV pilot just messing around at trying to get something that fits the Commanchero cockpit. I could pad the seat so the pilot sits higher but Im thinking that might look a bit naff. Quote

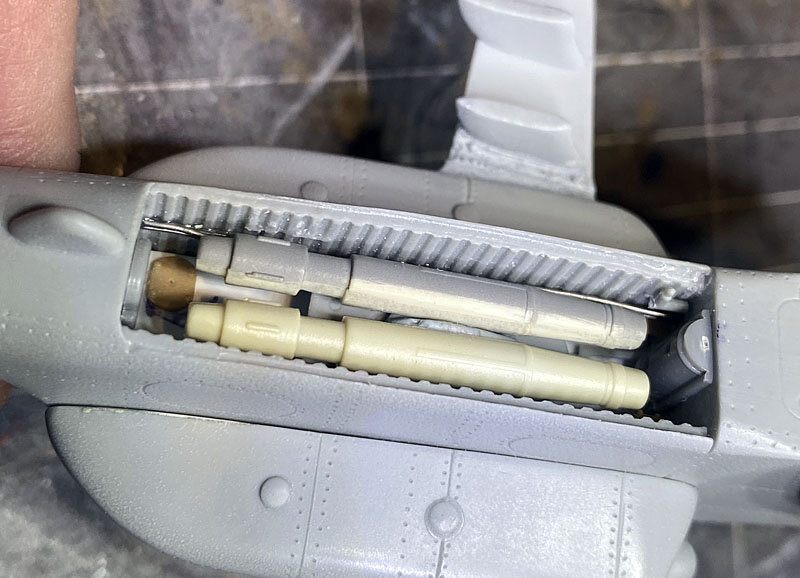

Mintox Posted August 4, 2021 Author Posted August 4, 2021 I managed to fins some old Bandai missiles from a VF-1A kit to use as bombs. Ì still have lots to do inside the bay with cleaning up some mold lines etc. Ive added some greeblies inside to make it a bit more interesting but most of it will get covered up by the bombs. Quote
Bolt Posted August 5, 2021 Posted August 5, 2021 Mm.. smaller seat would look better imo. The cockpit is quite tight , scaling a pilot for the existing seat. Everything is looking great ! Quote
Mintox Posted August 5, 2021 Author Posted August 5, 2021 4 hours ago, Bolt said: Mm.. smaller seat would look better imo. The cockpit is quite tight , scaling a pilot for the existing seat. Everything is looking great ! I have toyed with scratch building seats and I may still do that as Im running out of options for pilots. Quote
