Captain’s log: April 7th, 2021.

Mold prep for the sled begins! While this might not be the most exciting update for the casual observer, it will focus on the mold-making process and the preparation of the parts and boxes, which is perfect for all you DIY enthusiasts.

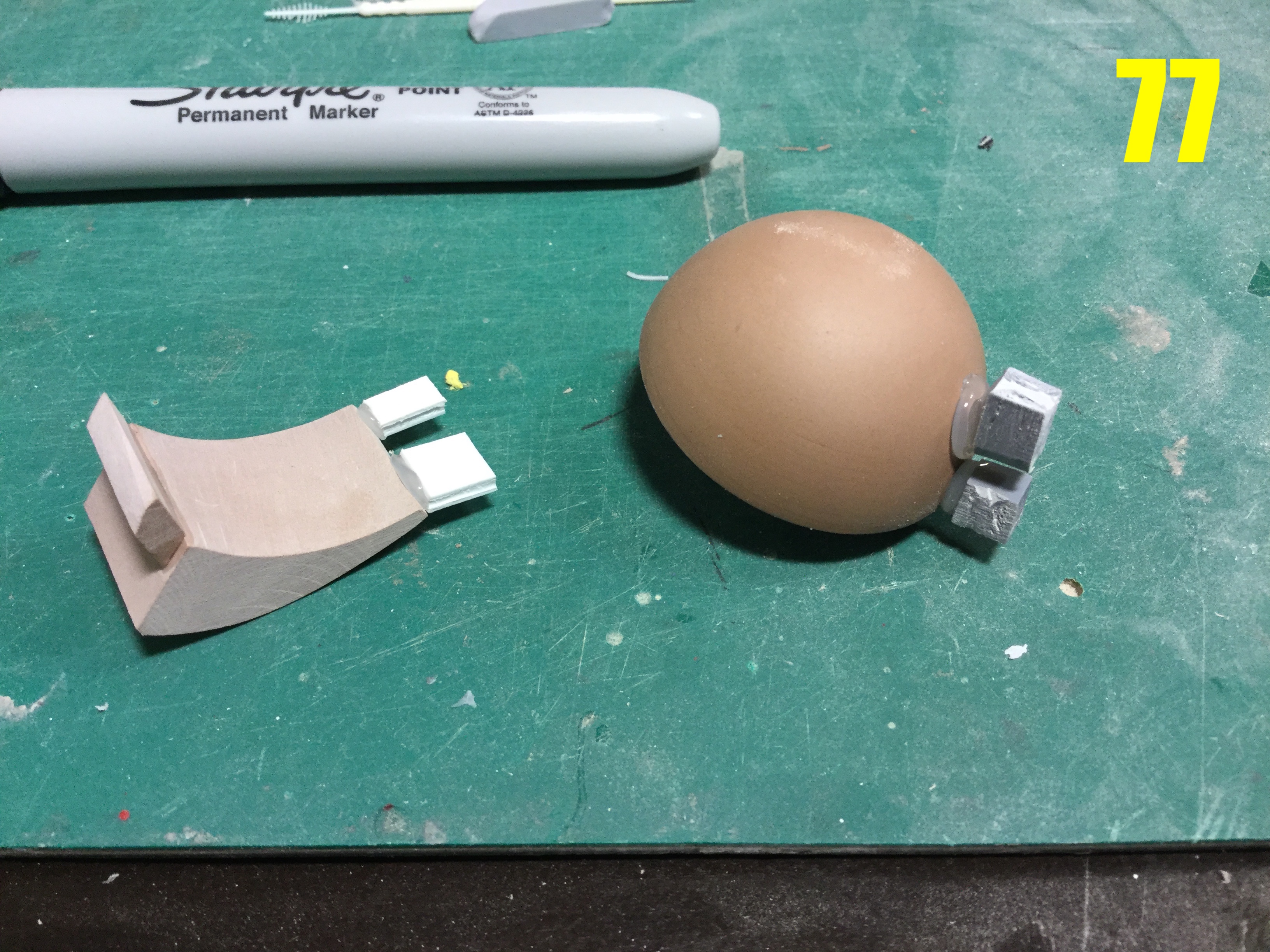

One of the first things that needs to be done is a little session of mental chess, whereby each individual part is studied, and an orientation is selected for optimal resin flow of the (future) mold cavity. At this point, any small cracks or crevices that aren’t upposed to be there are sealed with some diluted PVA glue. Once that’s done, I begin to attach flow gates to the parts using hot glue, which is what you see in pic 77.

Why hot glue? Because upon demold of the masters, I usually need to reove the gates in order to slice in the right places, and hot glue will hold most parts just firmly enough for the molding process, but can then be easily removed without damaging the masters.

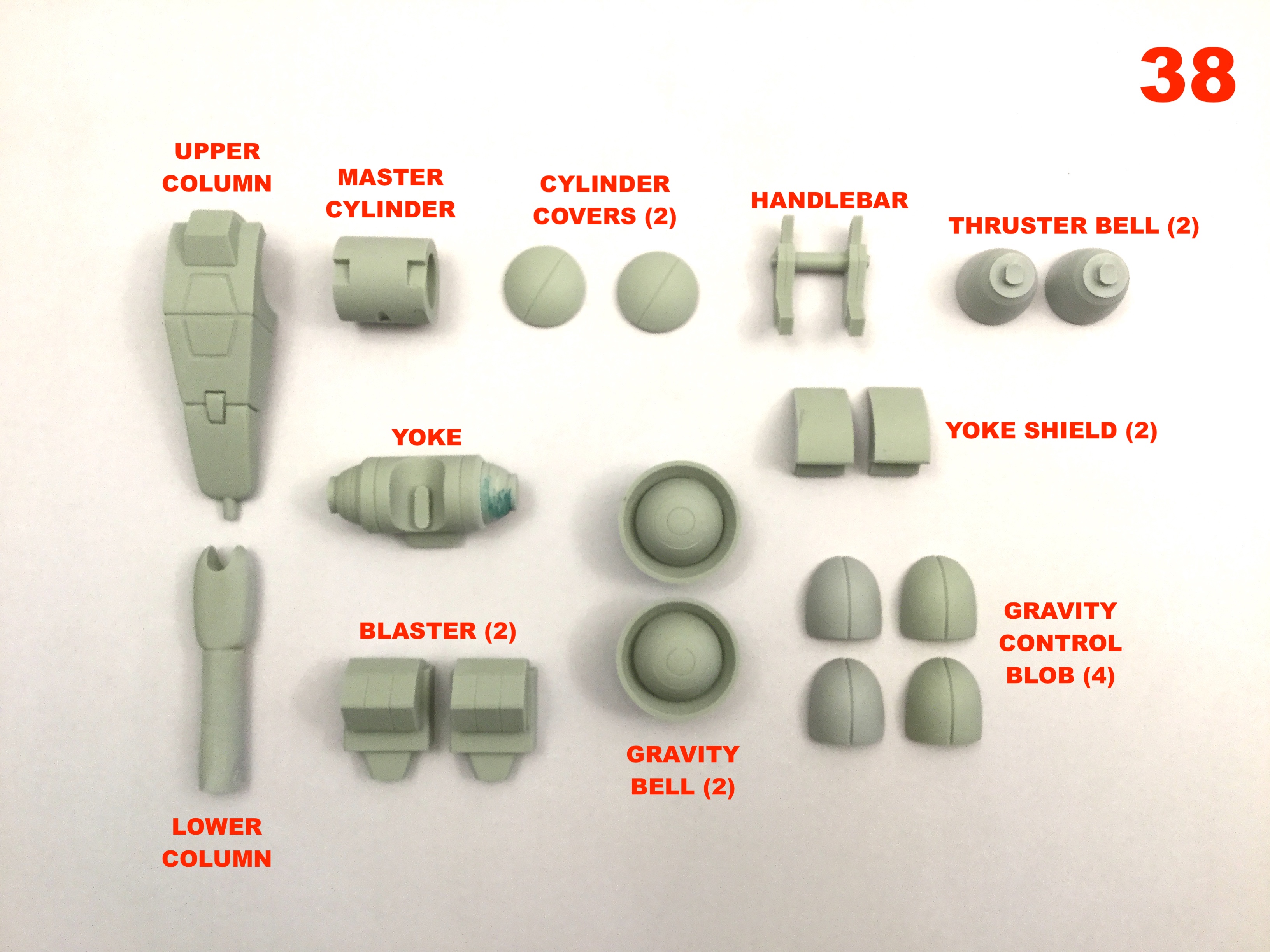

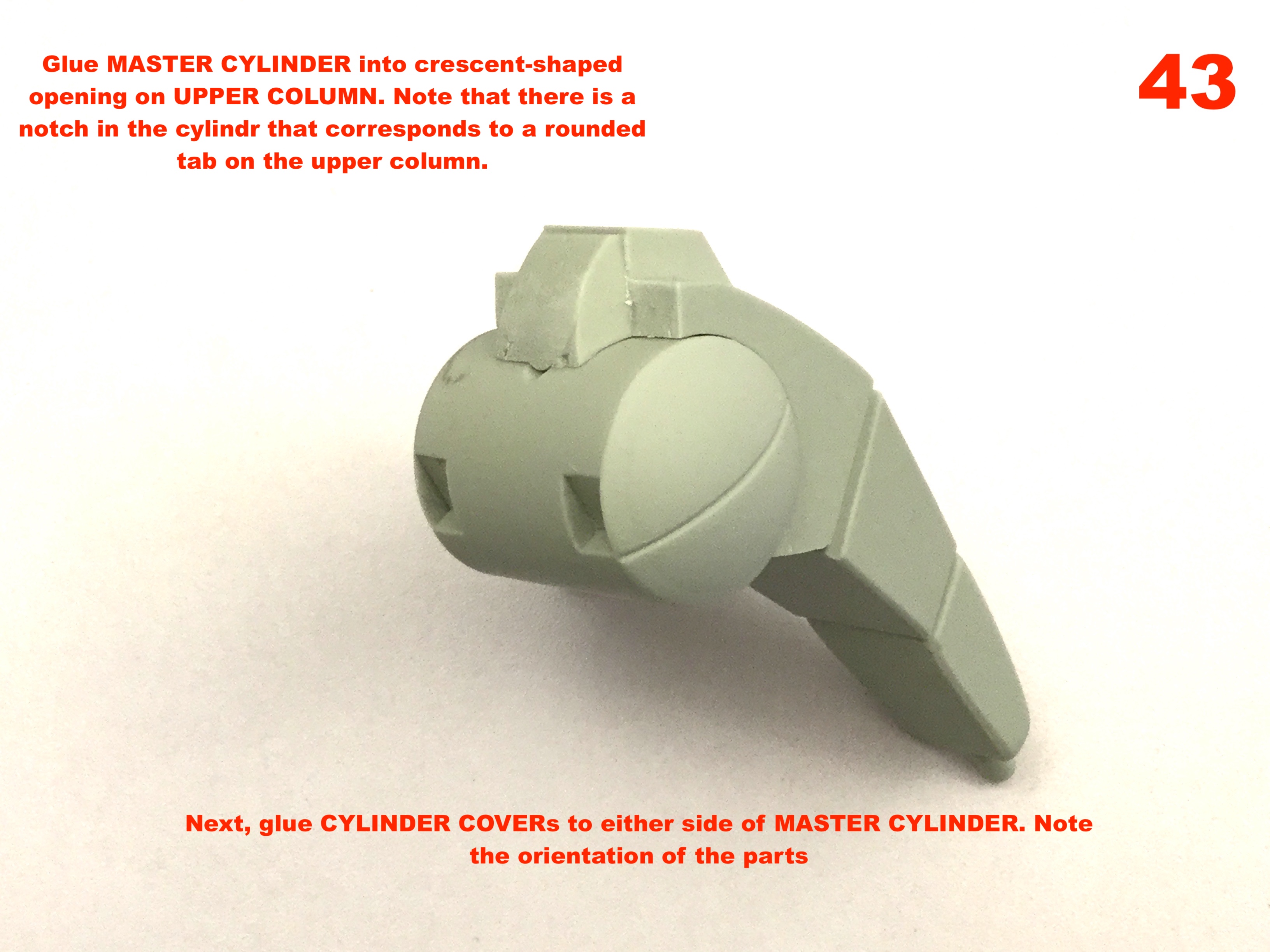

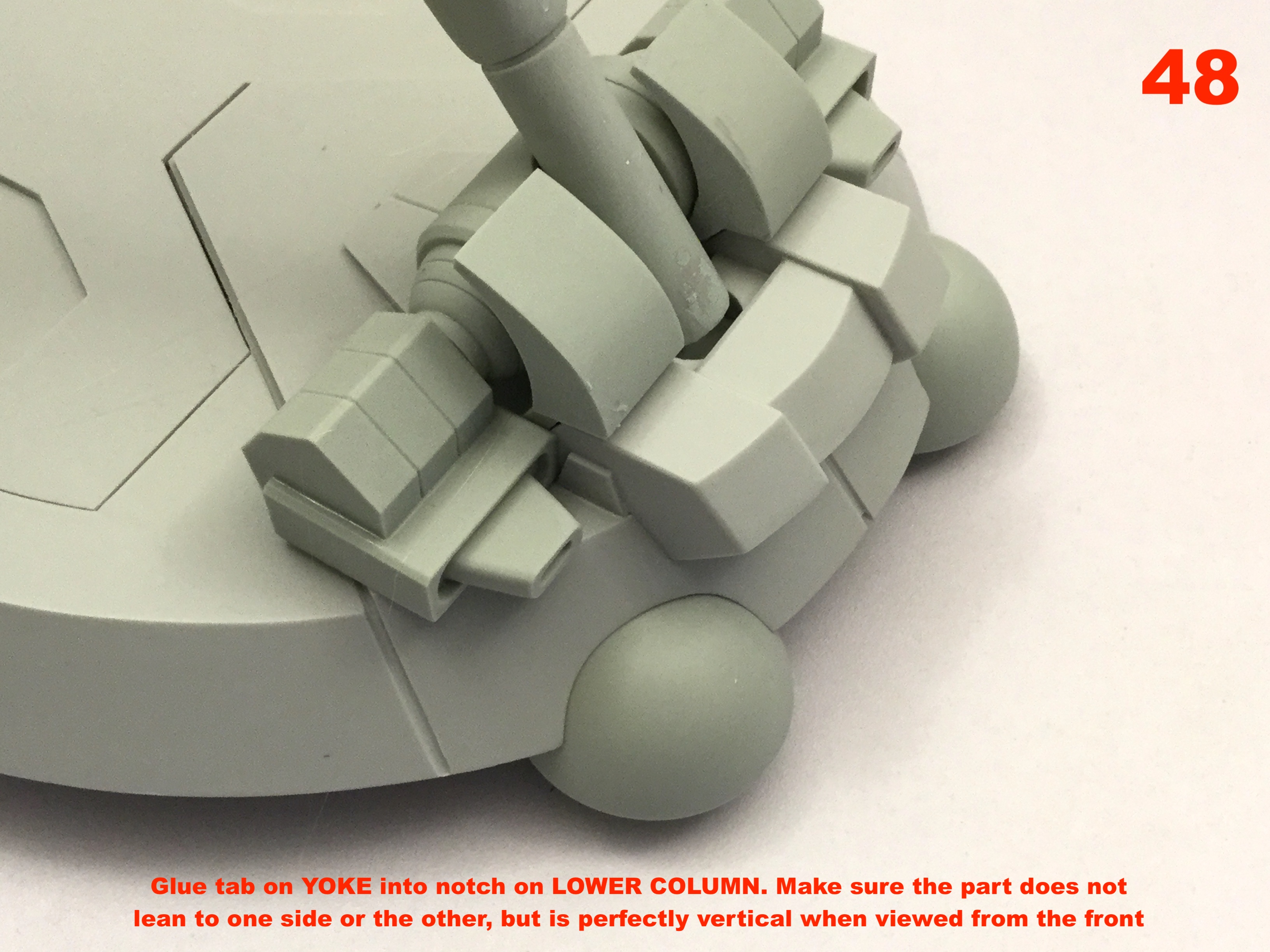

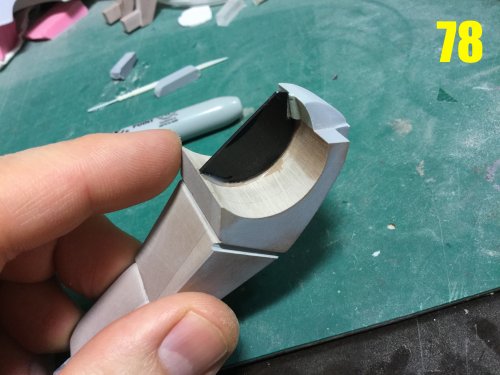

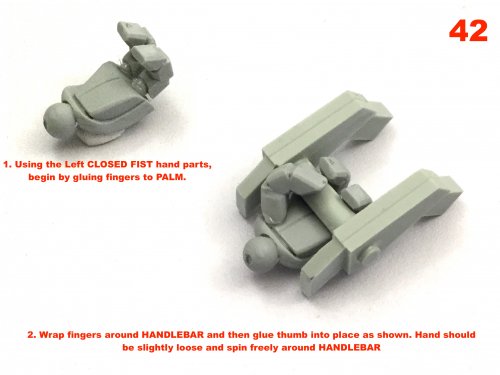

Because I tend to be rather ambitious in the creation of certain parts, I sometimes have to squirm my way out of a casting corner by adding some resin flow aids to the masters before molding them. Otherwise, you can end up with air pockets that turn to nasty voids on your castings. One such part is the top of the control column, which is what you see in pic 78. The black piece is just styrene sheet, but it is placed strategically to help air escape the mold upon casting.

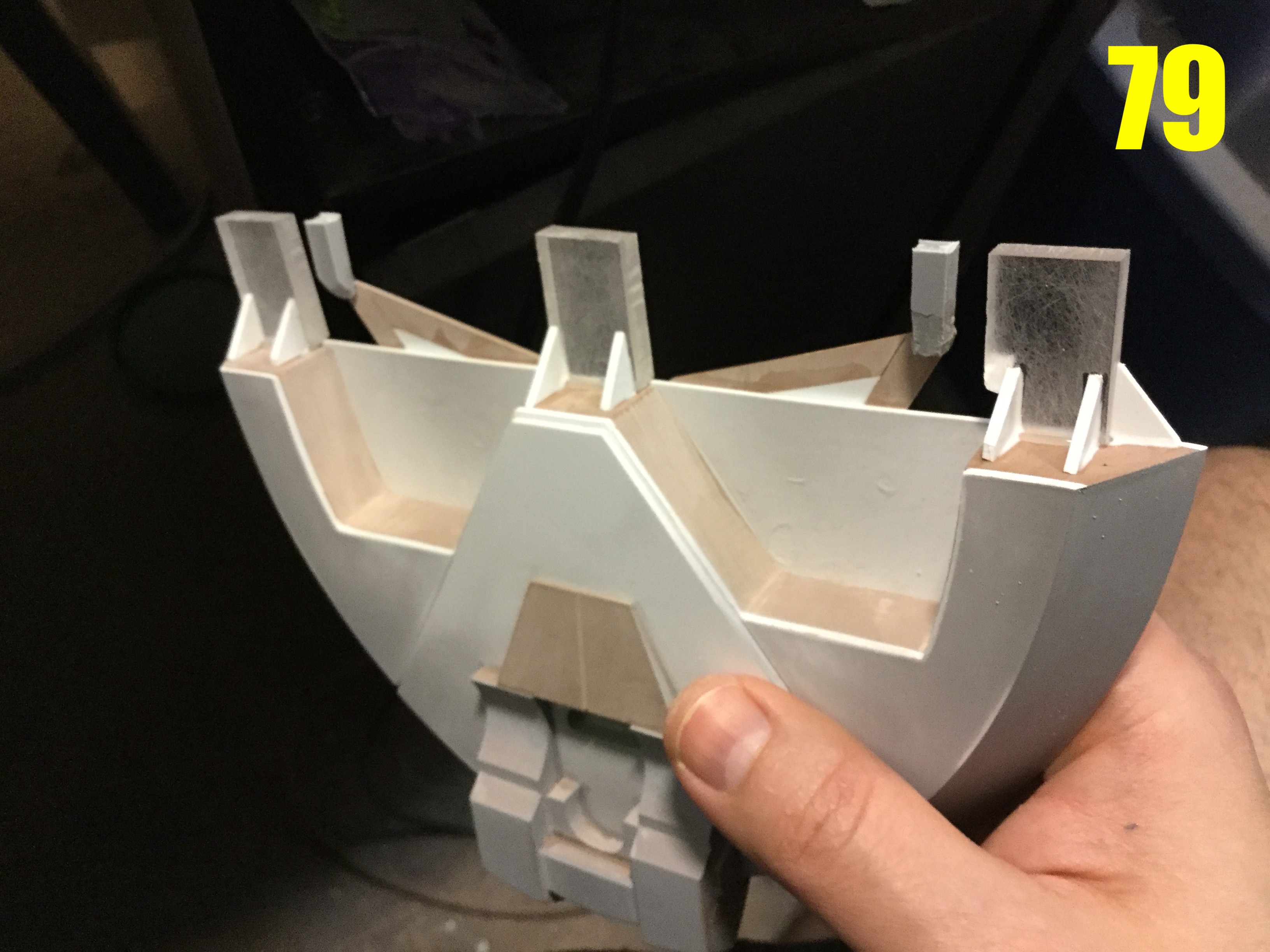

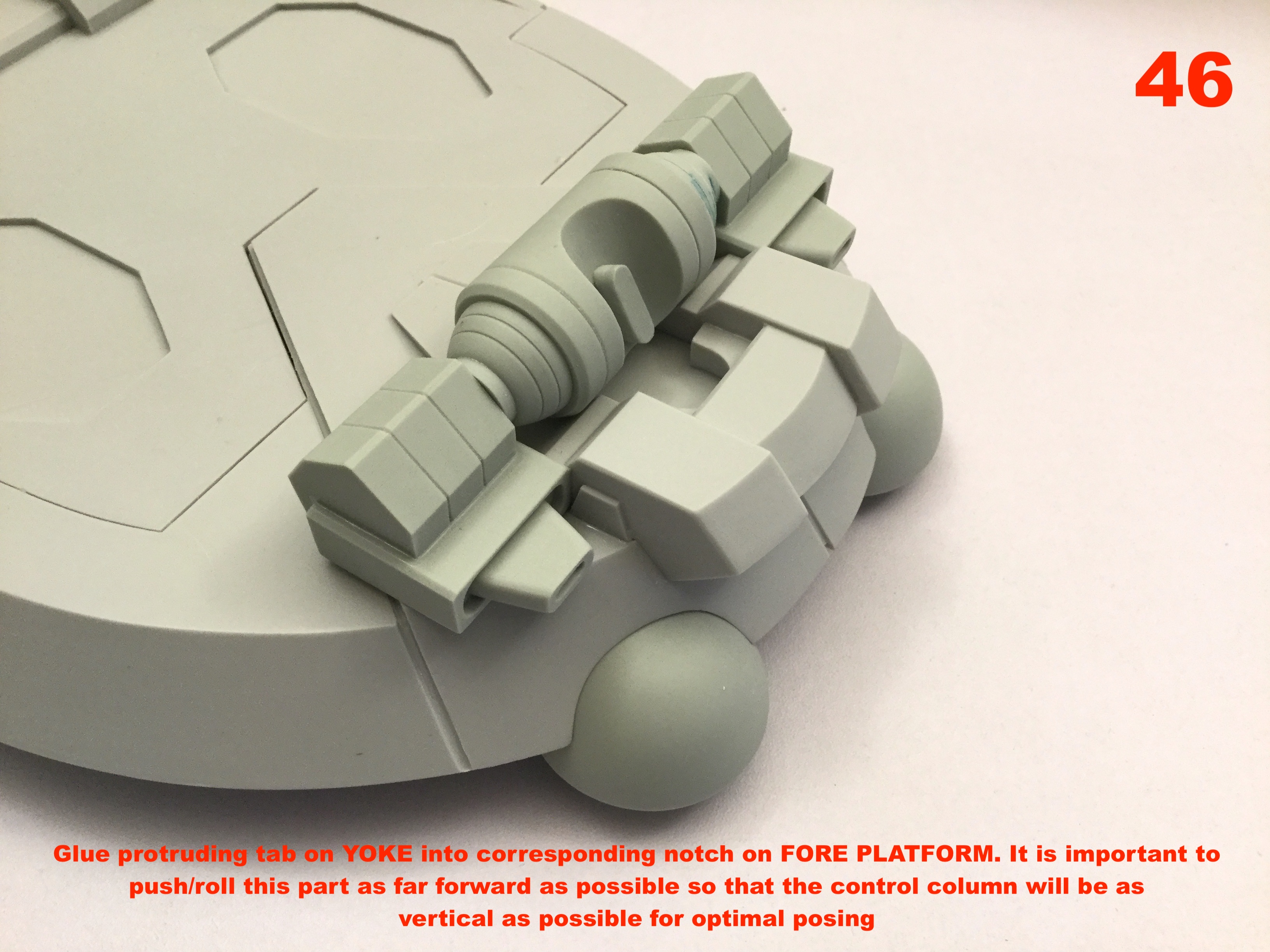

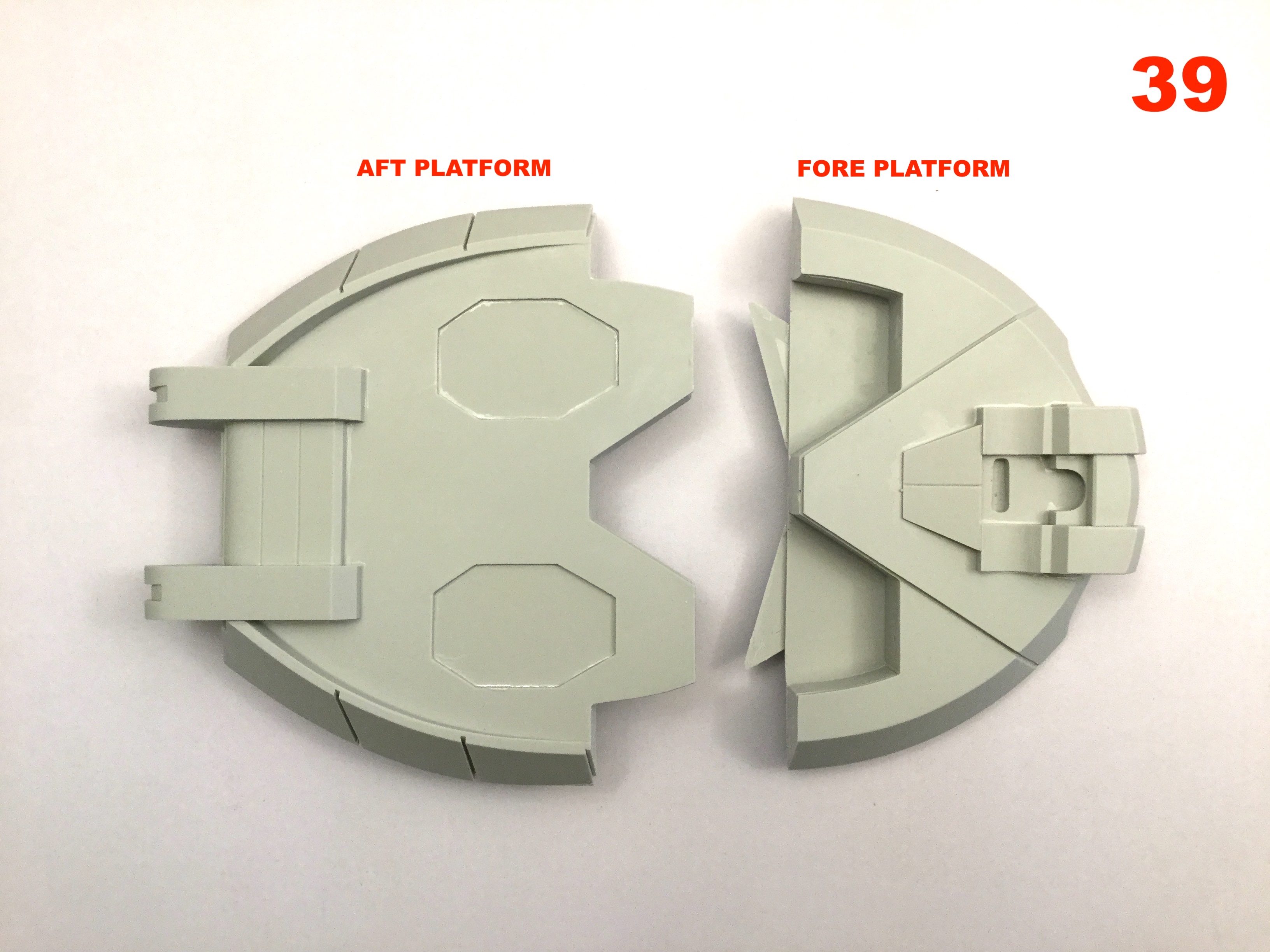

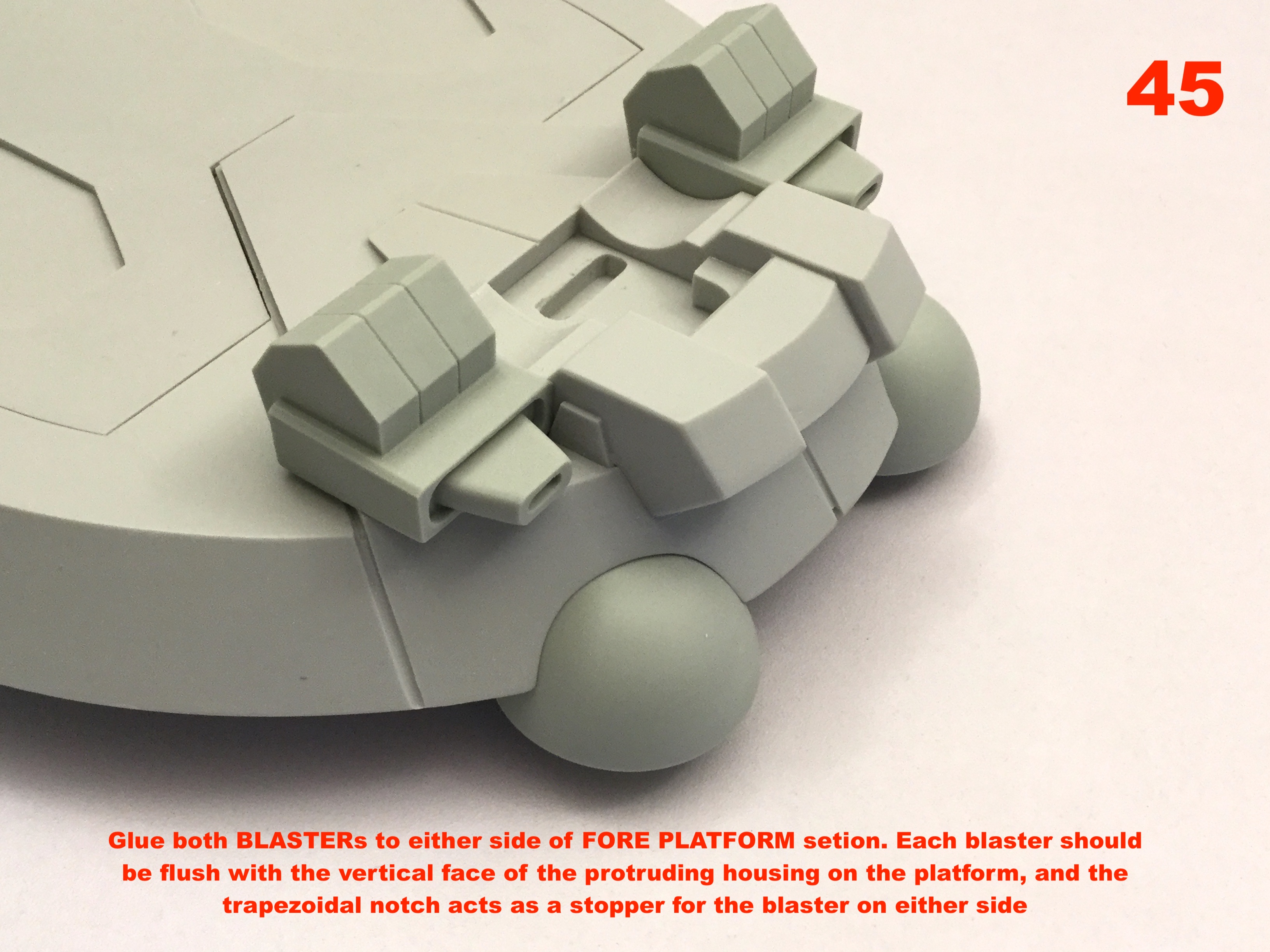

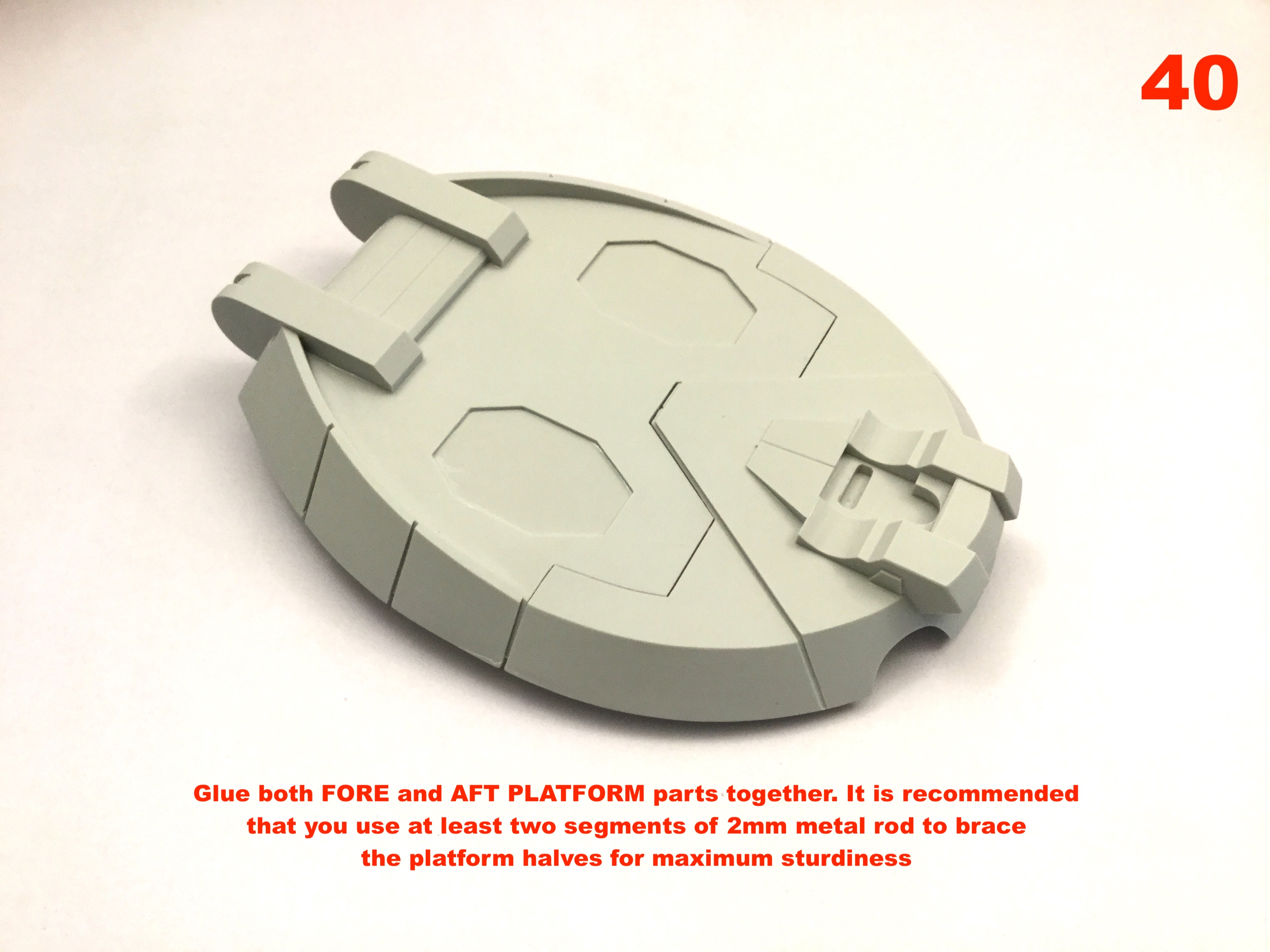

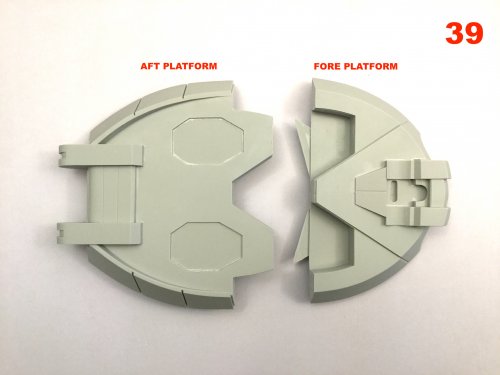

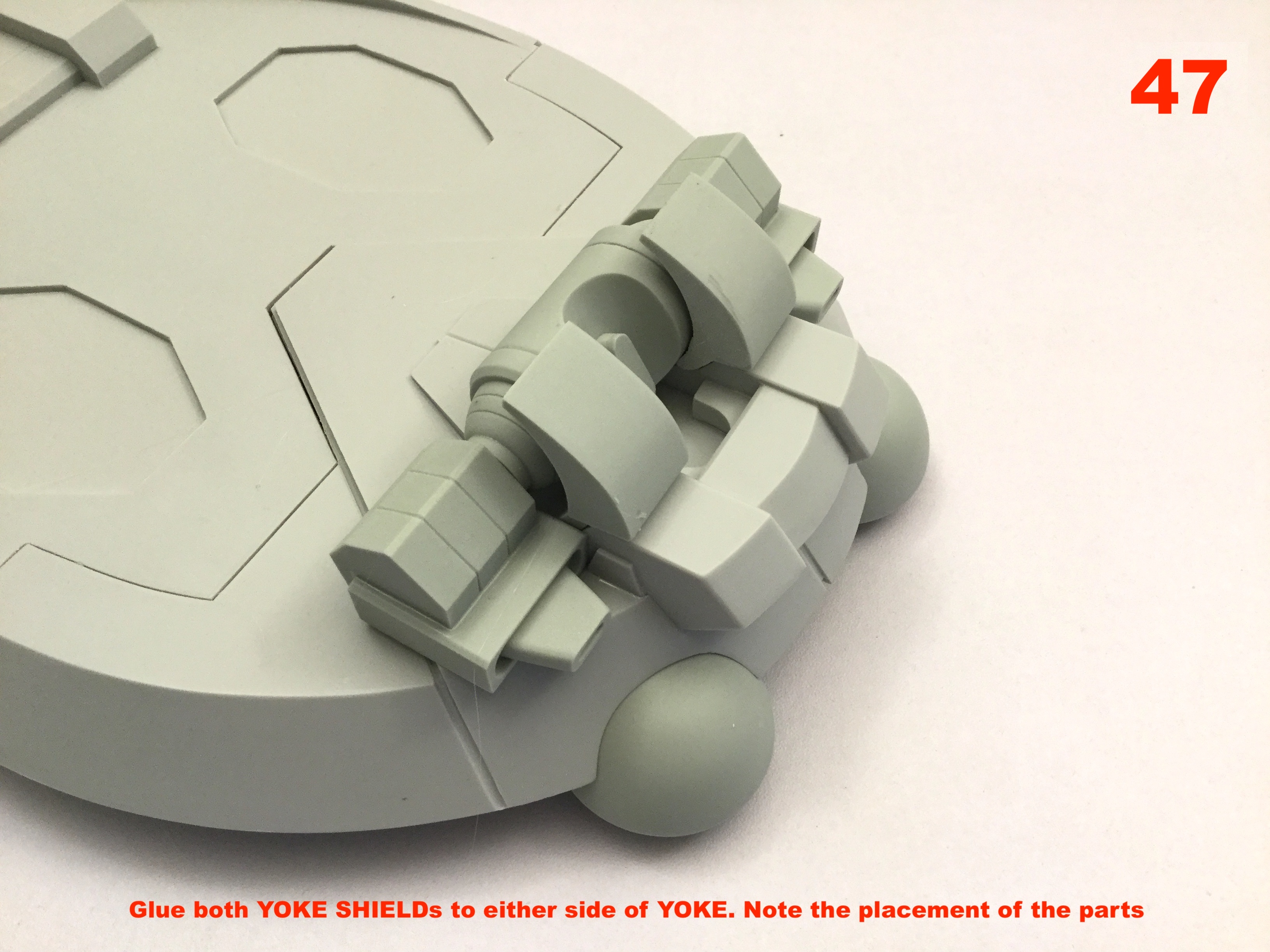

Pic 79: because the platform sections are so incredibly large, hot gluing gates won’t work: the parts are too heavy, and the glue may not hold the part securely, so these gates are bonded to the masters using CA glue, and also reinforced with styrene. This will help hold the part securely in place, but the white triangular fins also help with resin flow. Each of these parts needs to be measured, cut, and fitted into place  very carefully and deliberately to avoid obstructing details. Now that you know what these are, you’ll know to cut them off on your kit parts

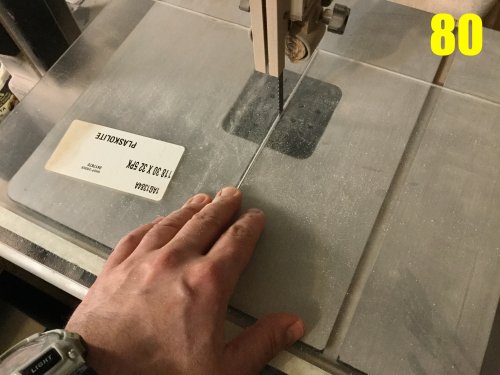

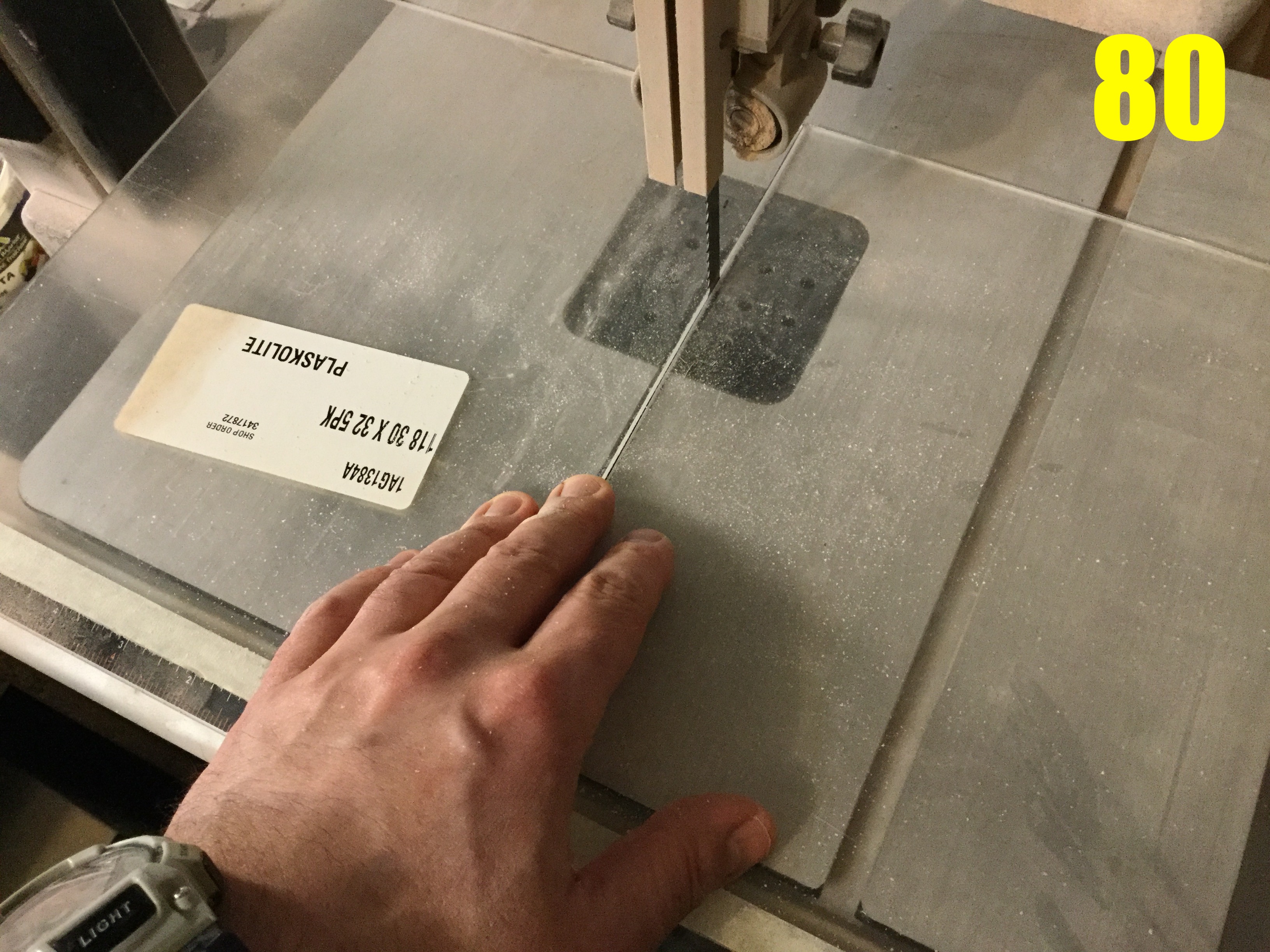

Pic 80: because the sled hull parts are so massive, I don’t have any mold containers large enough to hold them in, so I need to scratchbuild one, so here goes the plexiglass under the band saw.

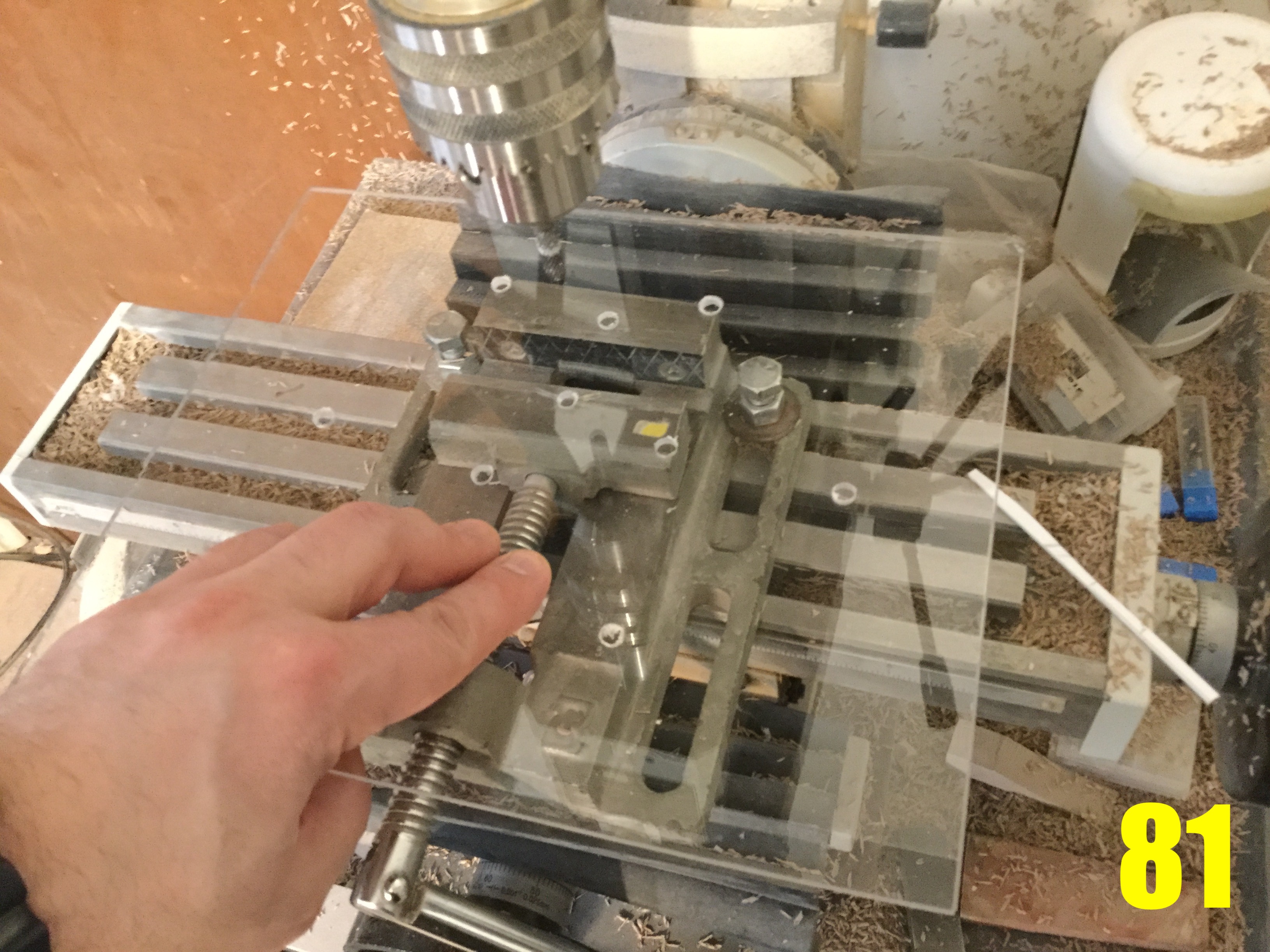

Pic 81: I didn’t have enough 5mm plexiglass for the whole mold box, so I’ll need to bond two 2.5mm sheets together to get the necessary rigidity for such a large mold. That said, it actually works out better, because I need to dril some holes on the inner plexiglass: this will create interlocking tongue-and-groove segments when the silicone is poured, thus preventing the large, heavy mold from shifting or sliding in its box.

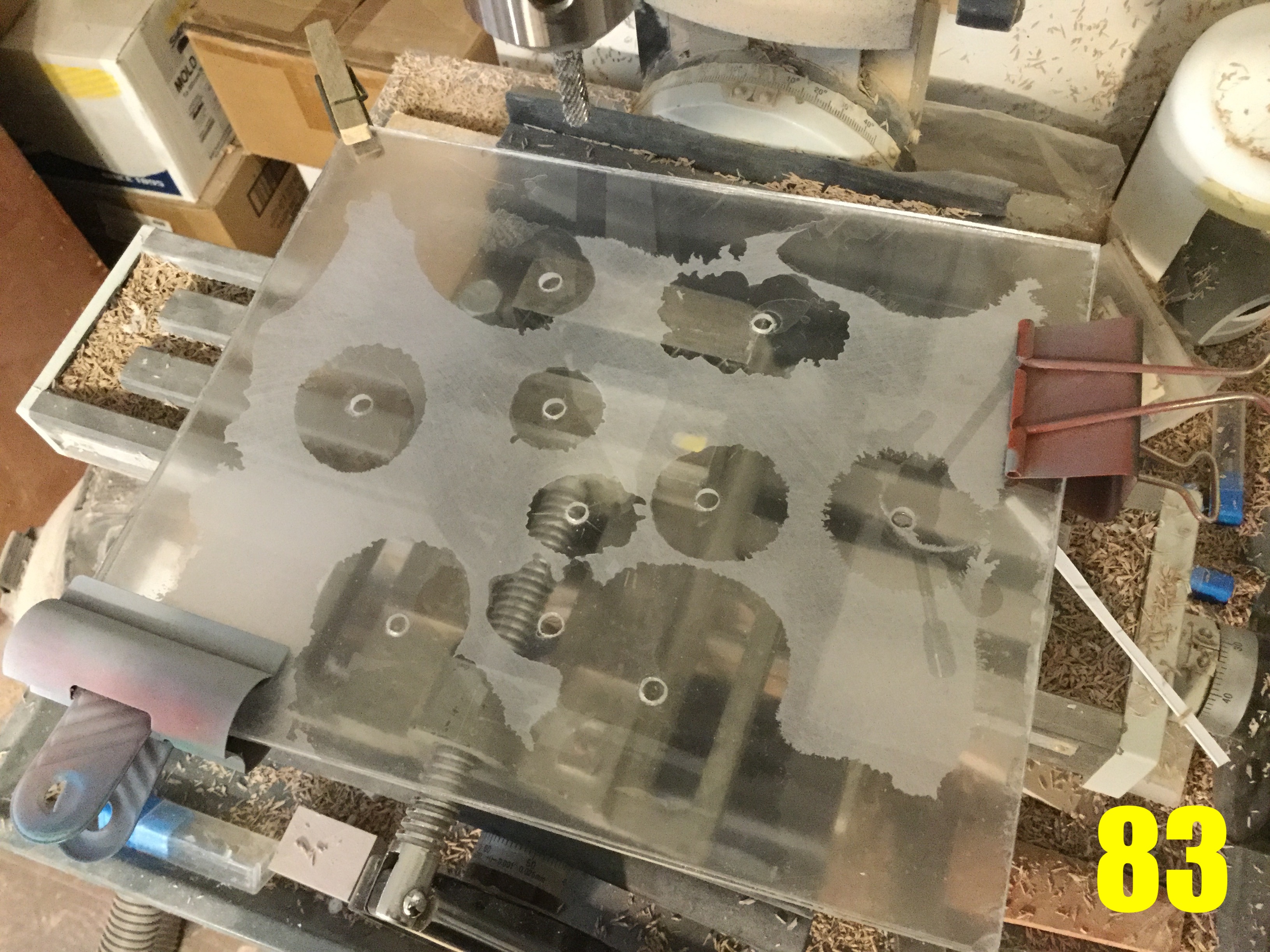

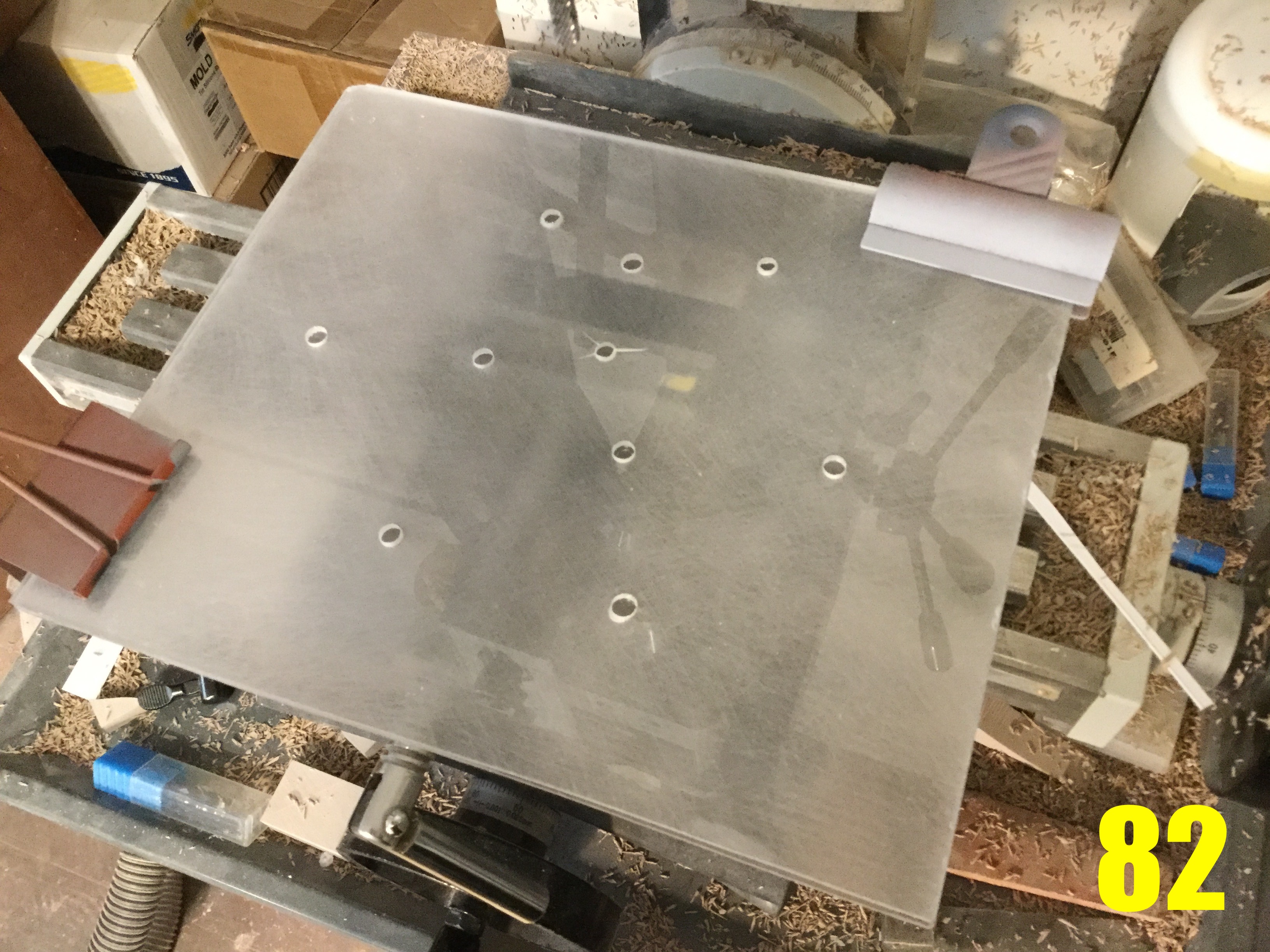

Pic 82: the surfaces of both layers of glass are then roughened with 80 grit sandpaper… Then bonded together using CA glue (pic 83.) It’s crude and not pretty, but it works, and works well!

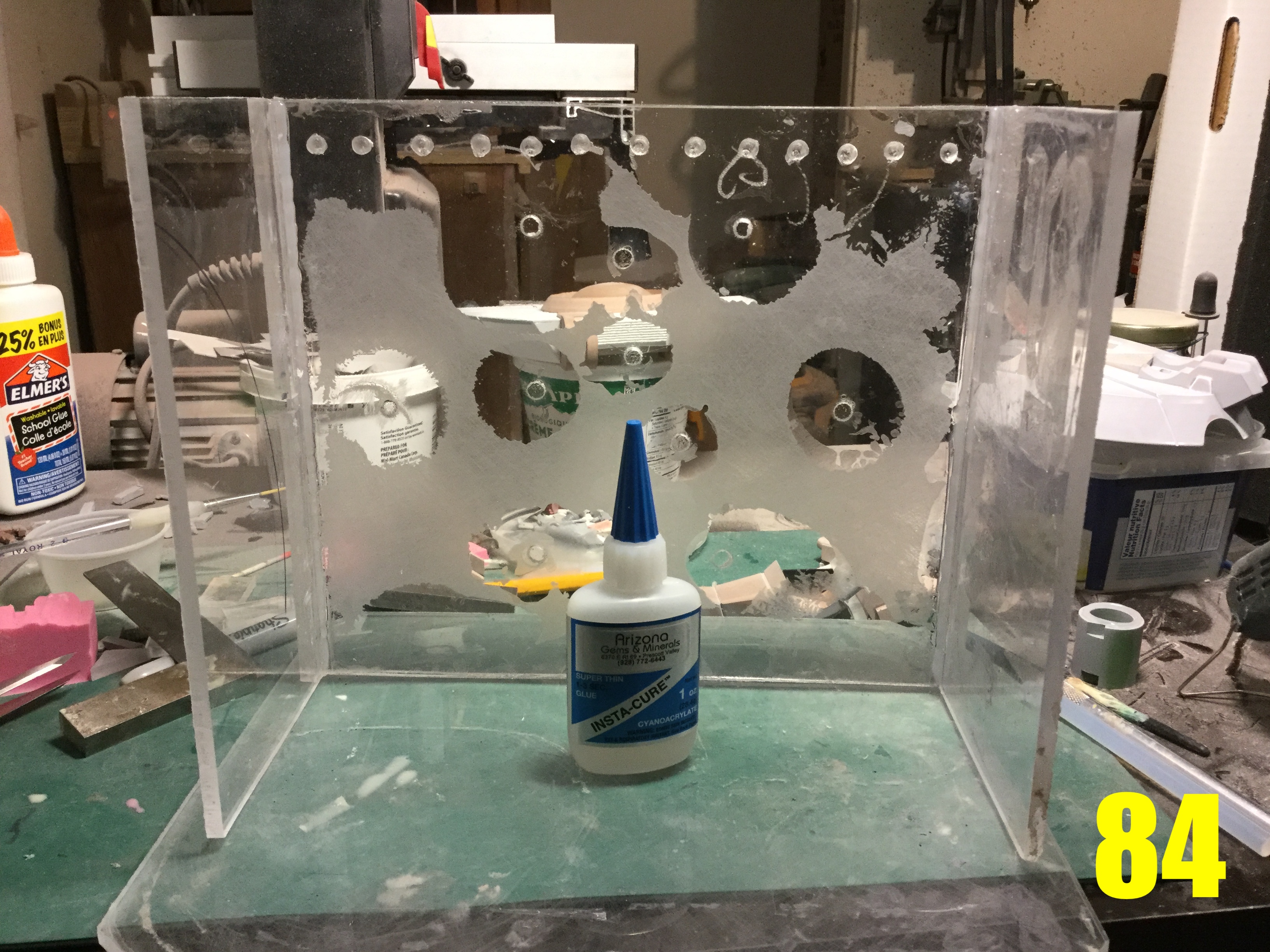

Pic 84: the pic doesn’t do it justice, but that’s a big mold box, and will require almost a gallon of mold silicone all by itself!

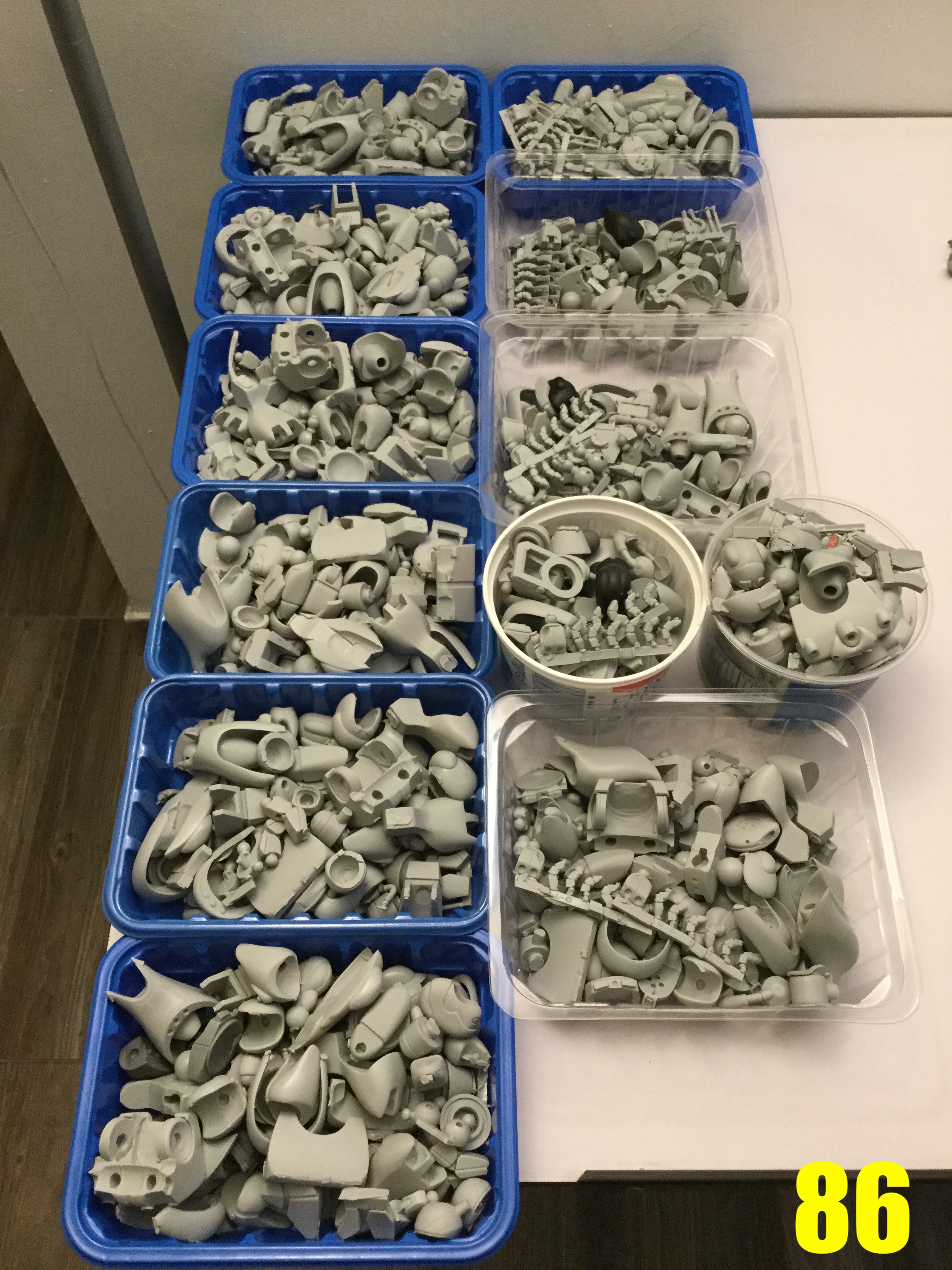

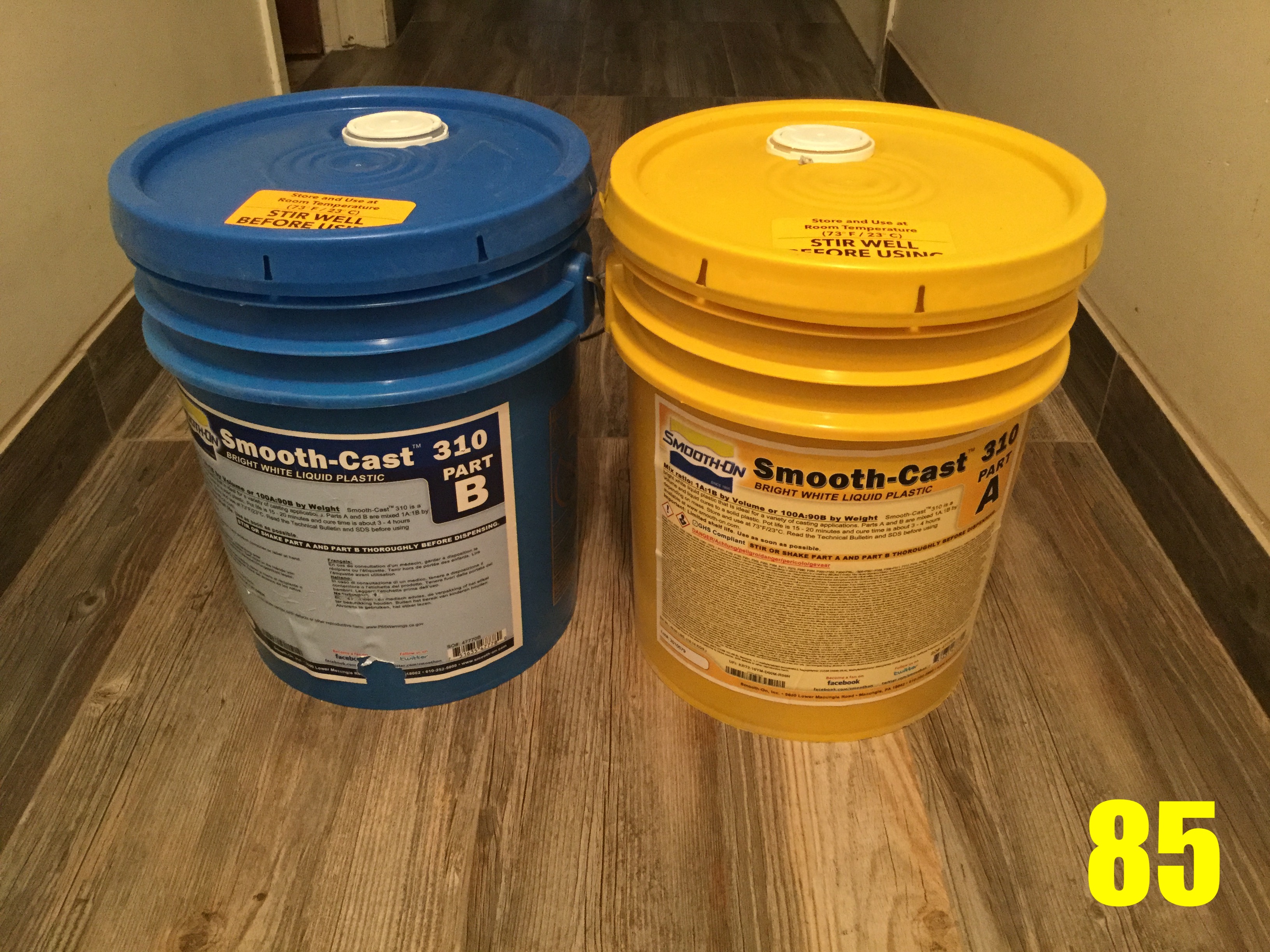

Pic 85: I roughly estimate the main sled hull parts to be about a kilo’s worth of resin, so I stocked-up. Even then, I fear I will need to re-order more resin. The pails you see are 5 gallons each.

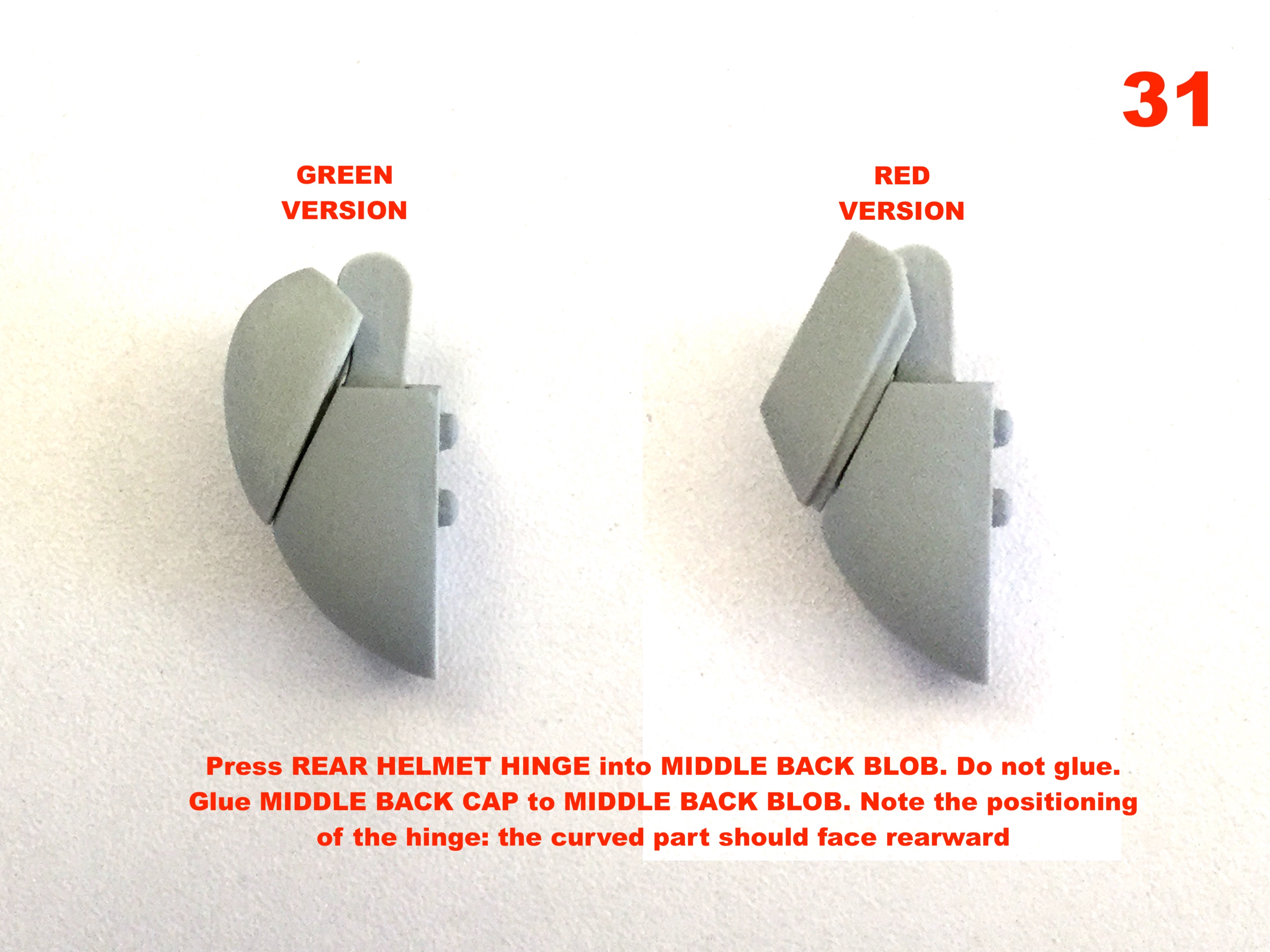

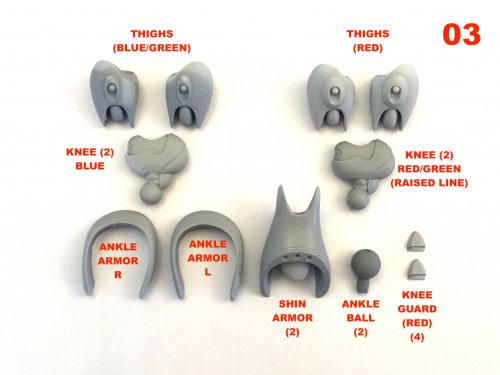

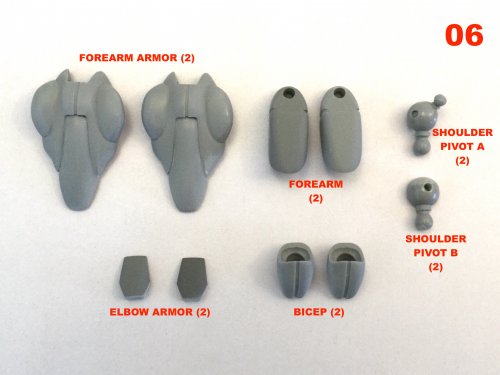

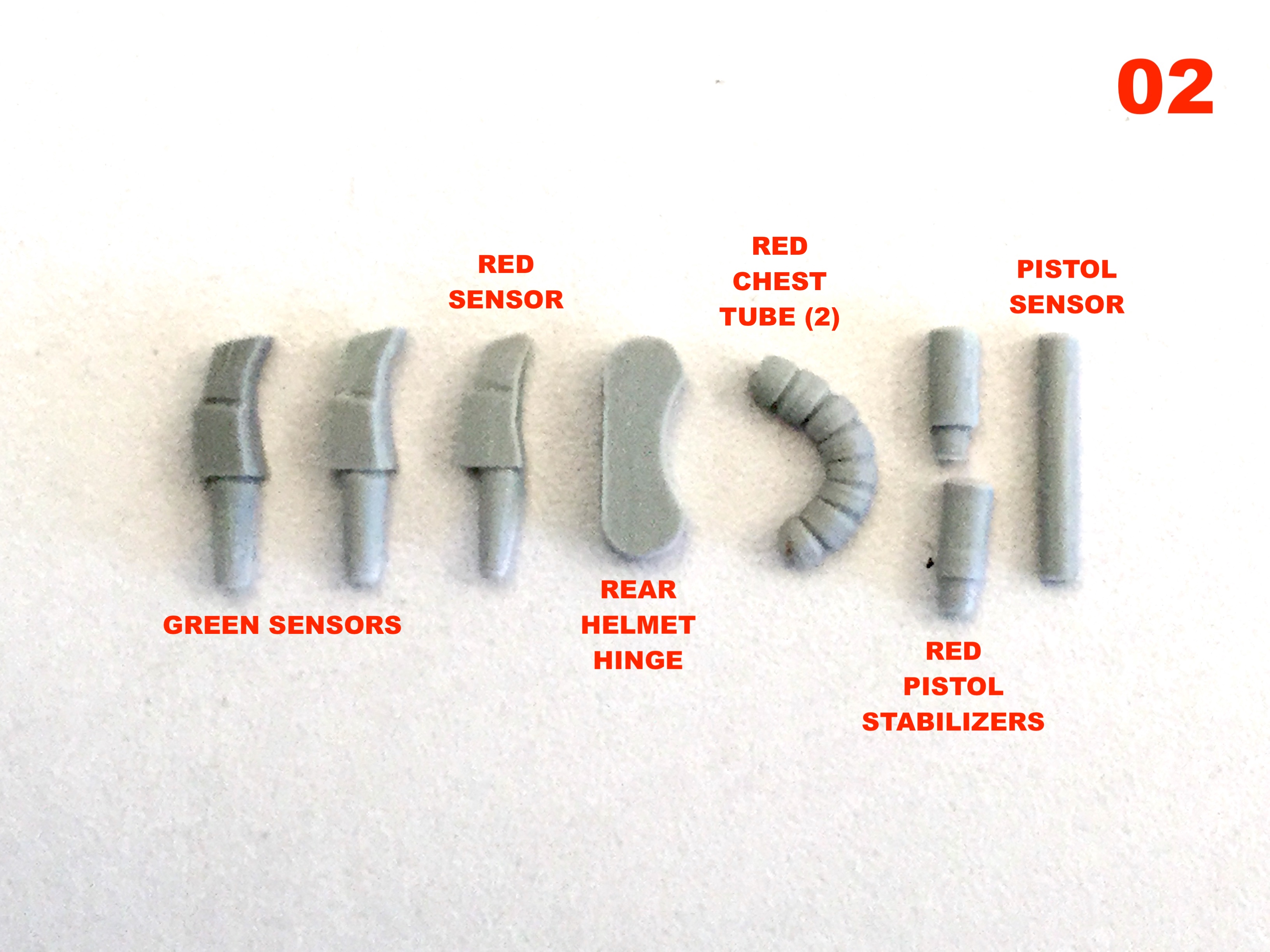

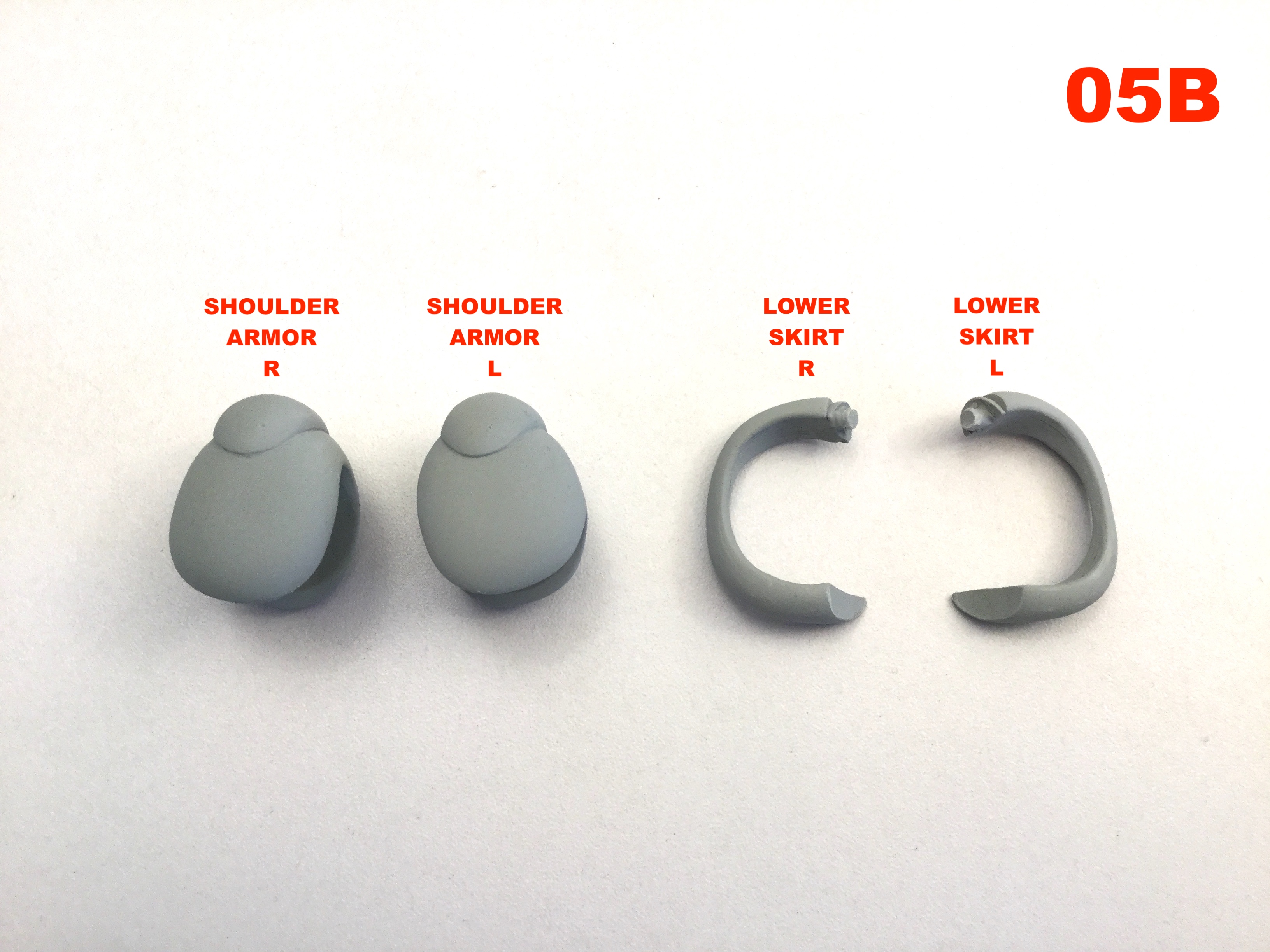

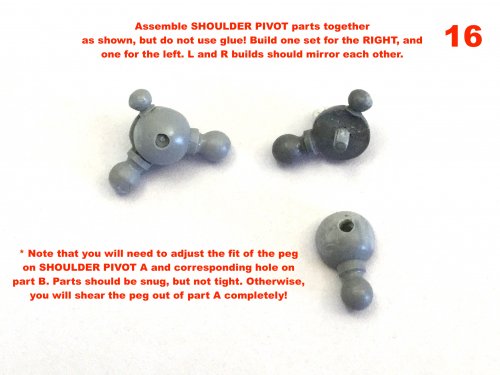

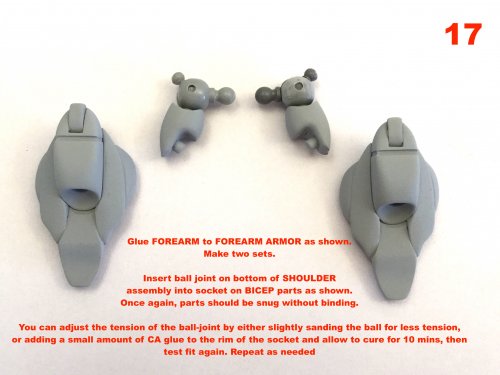

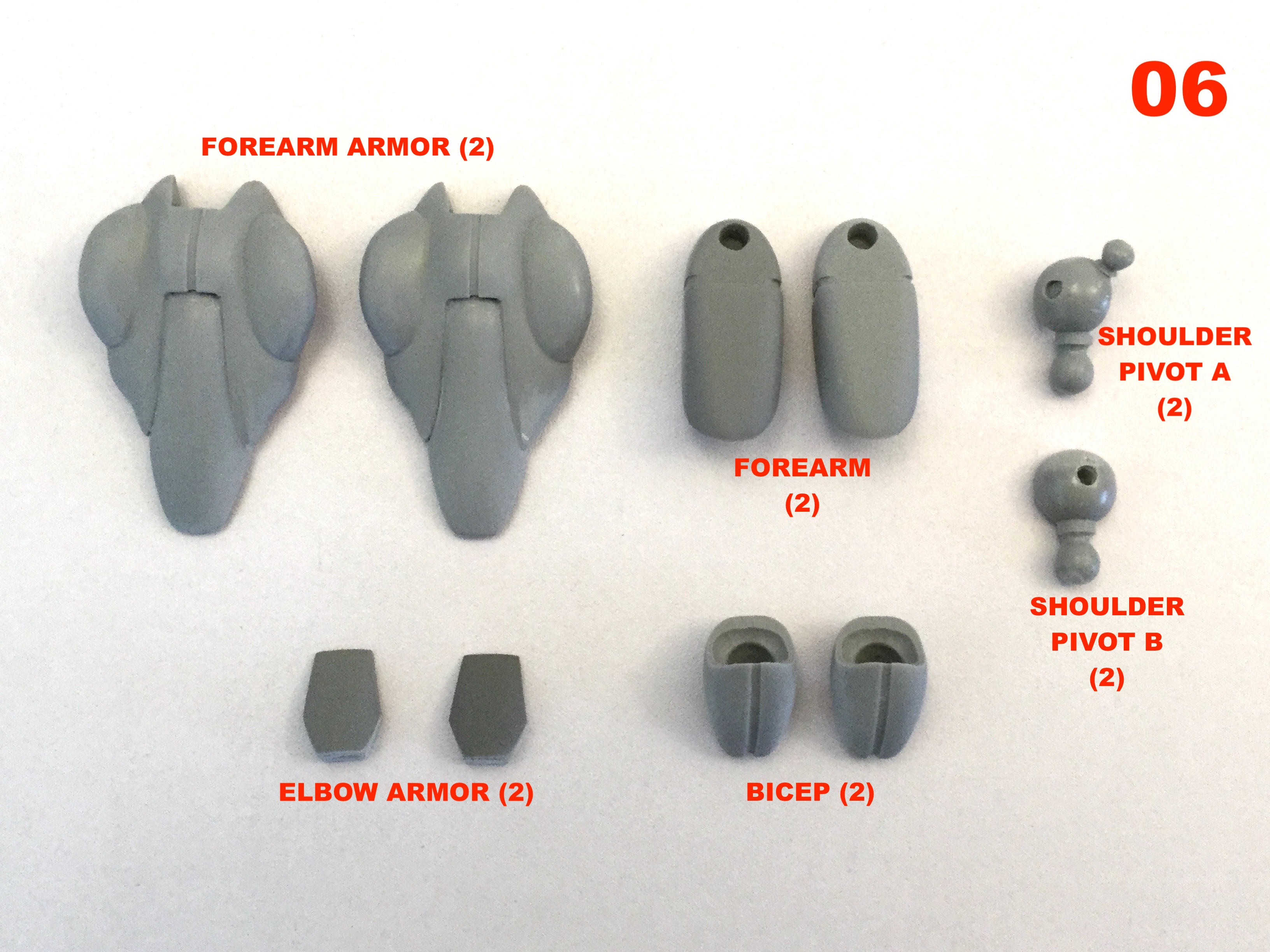

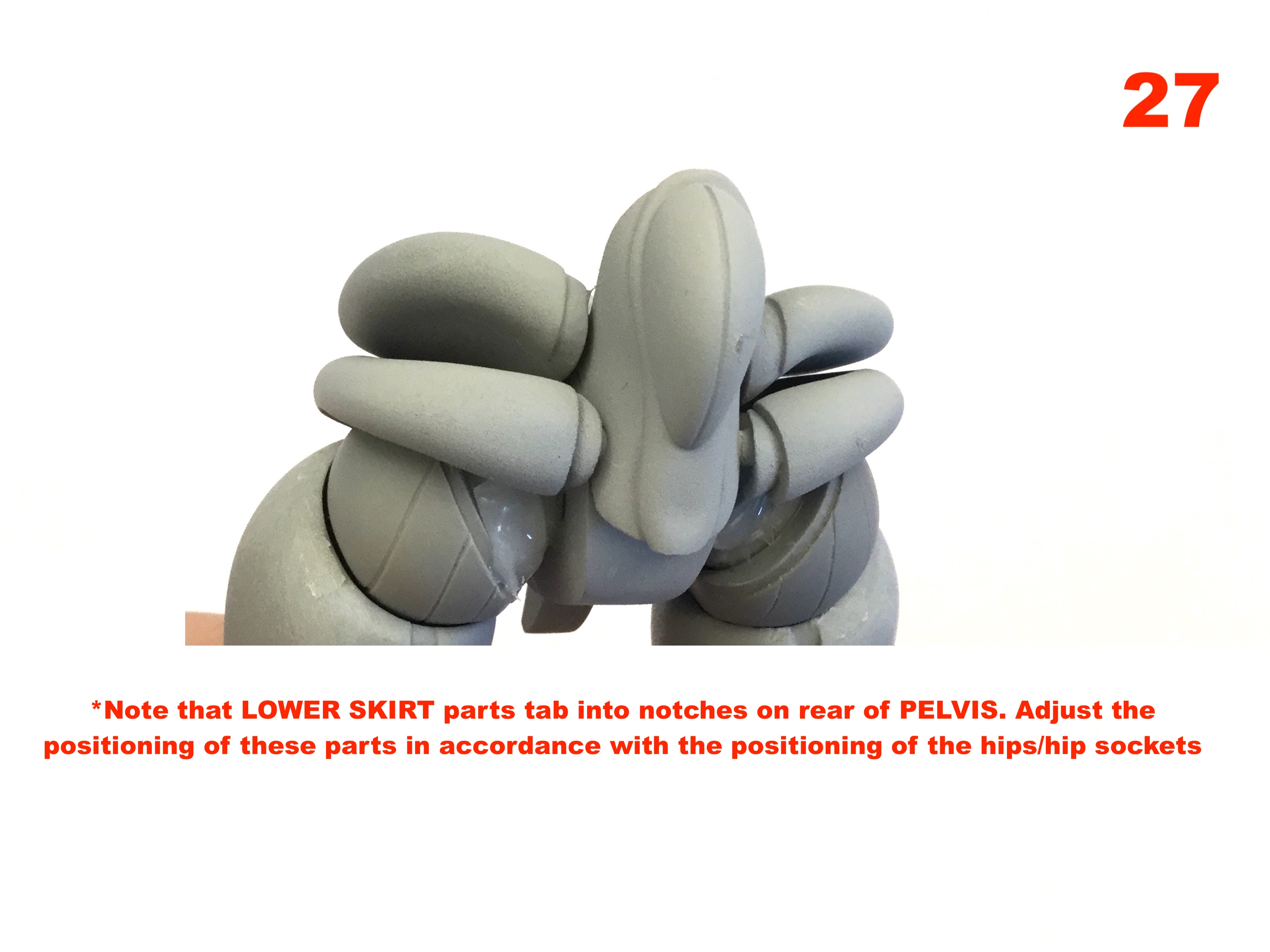

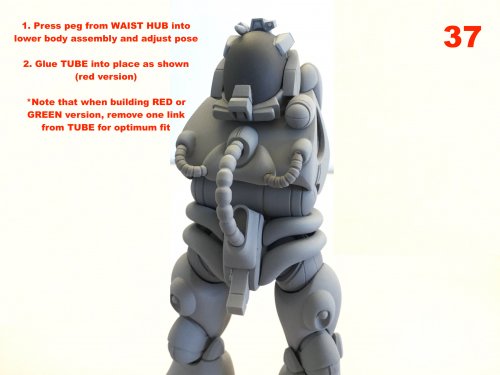

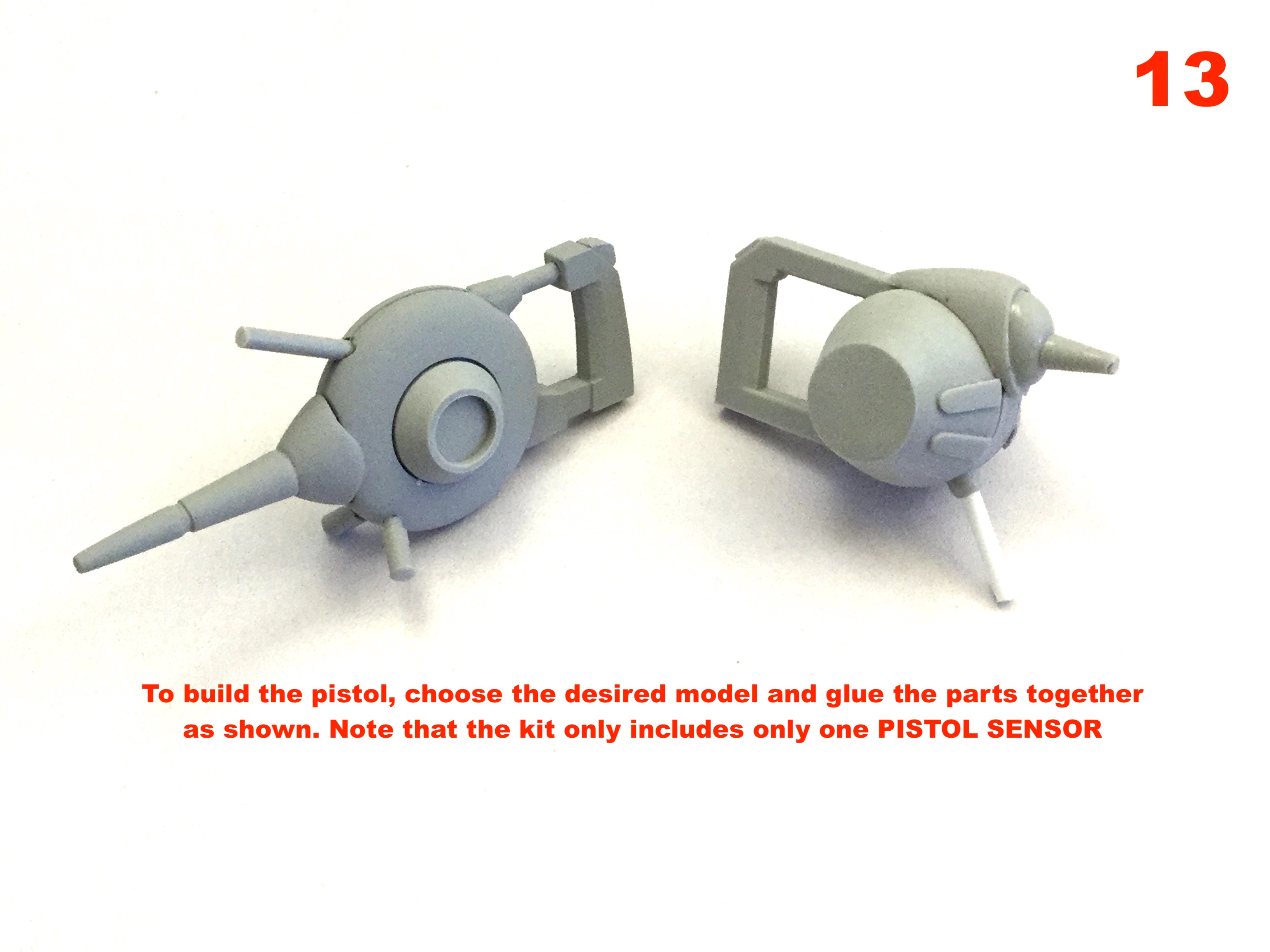

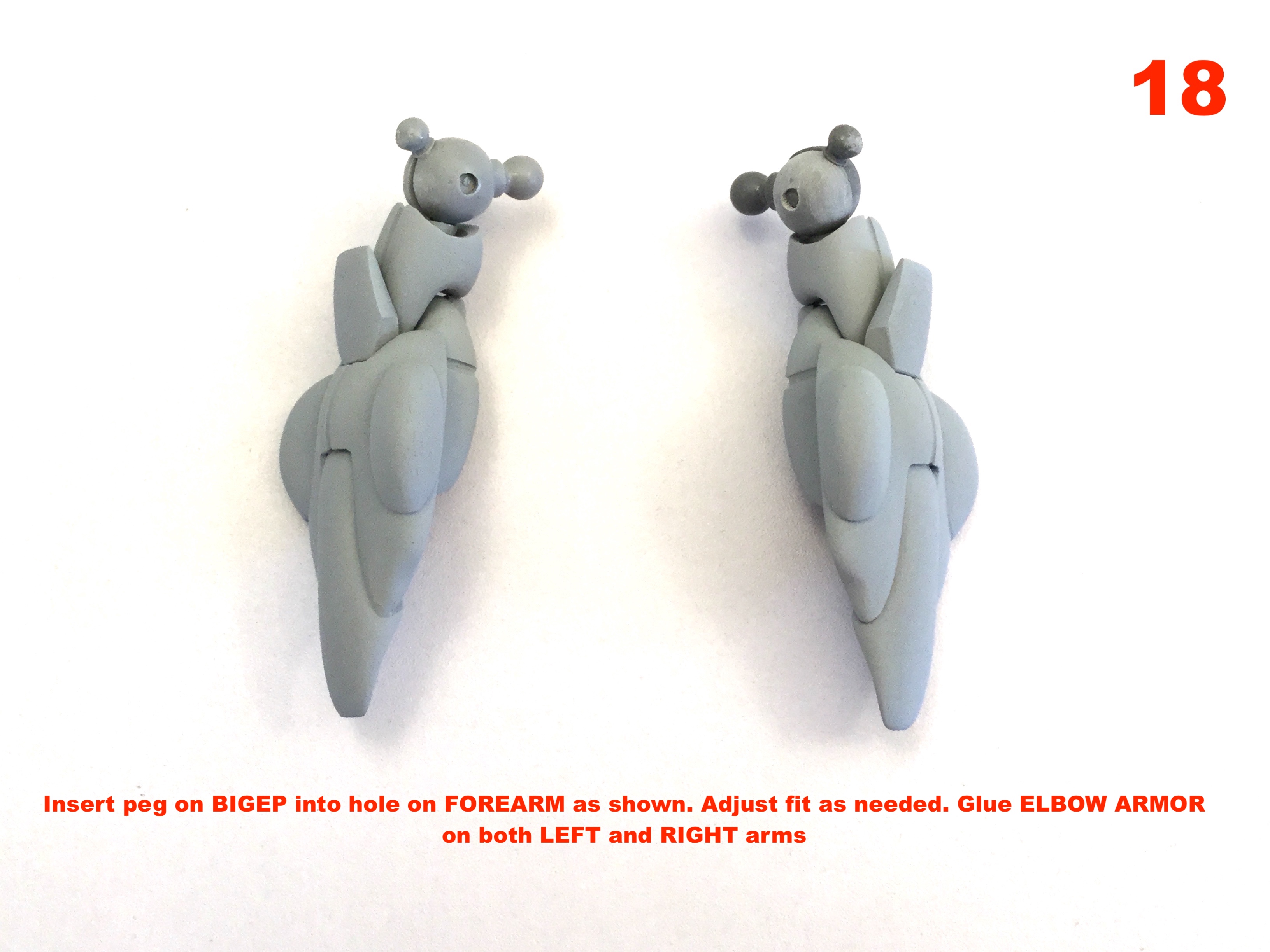

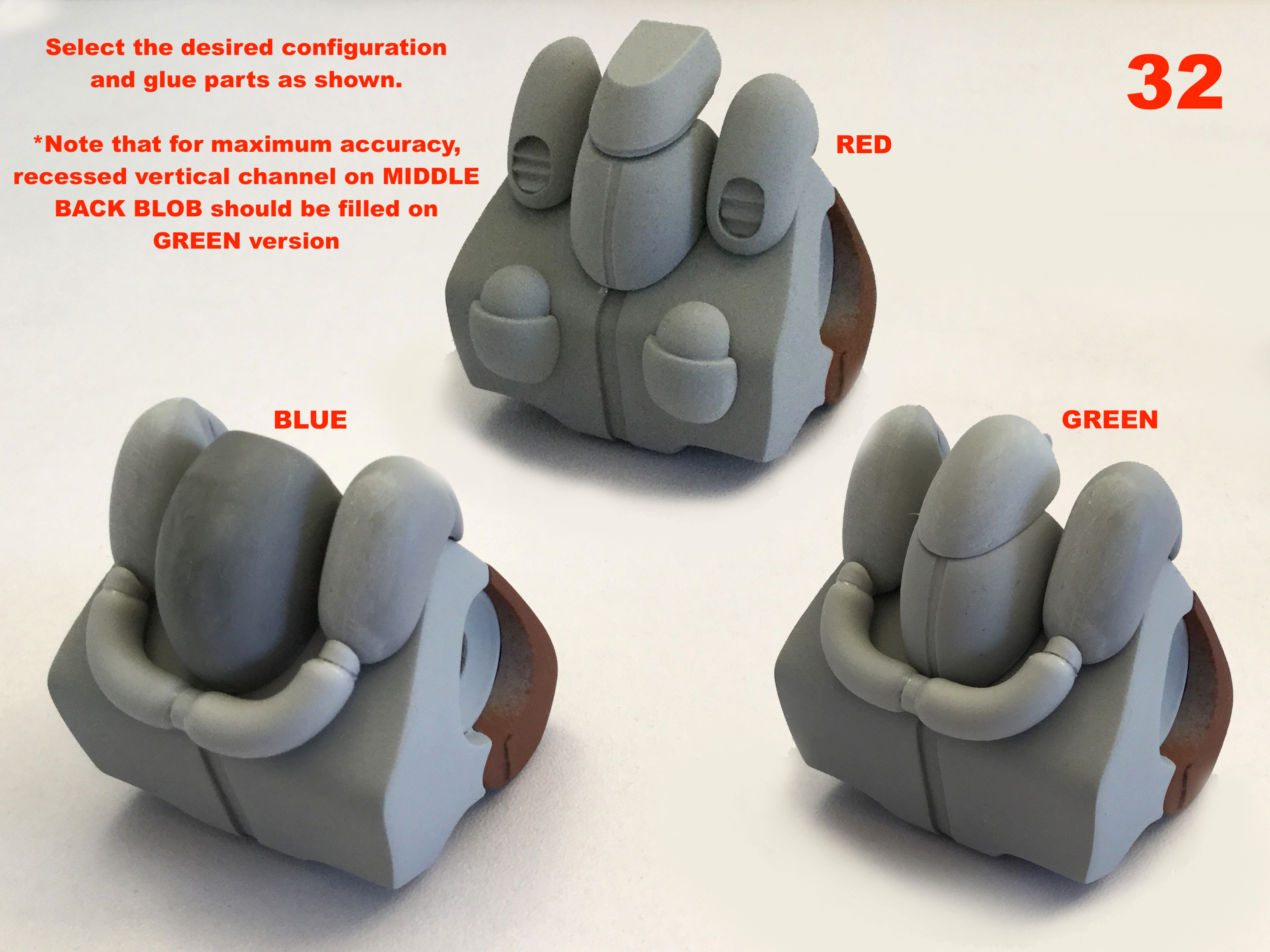

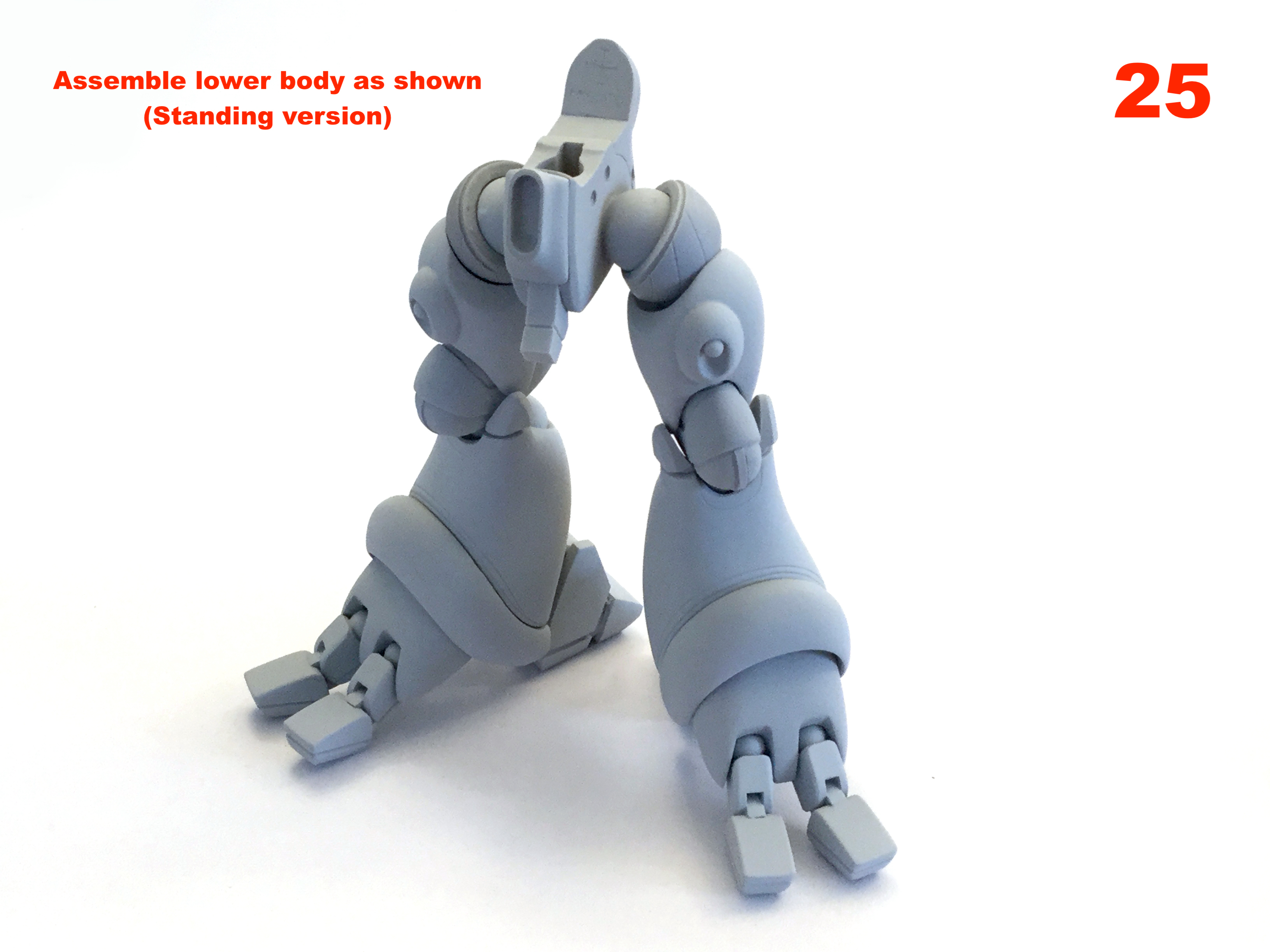

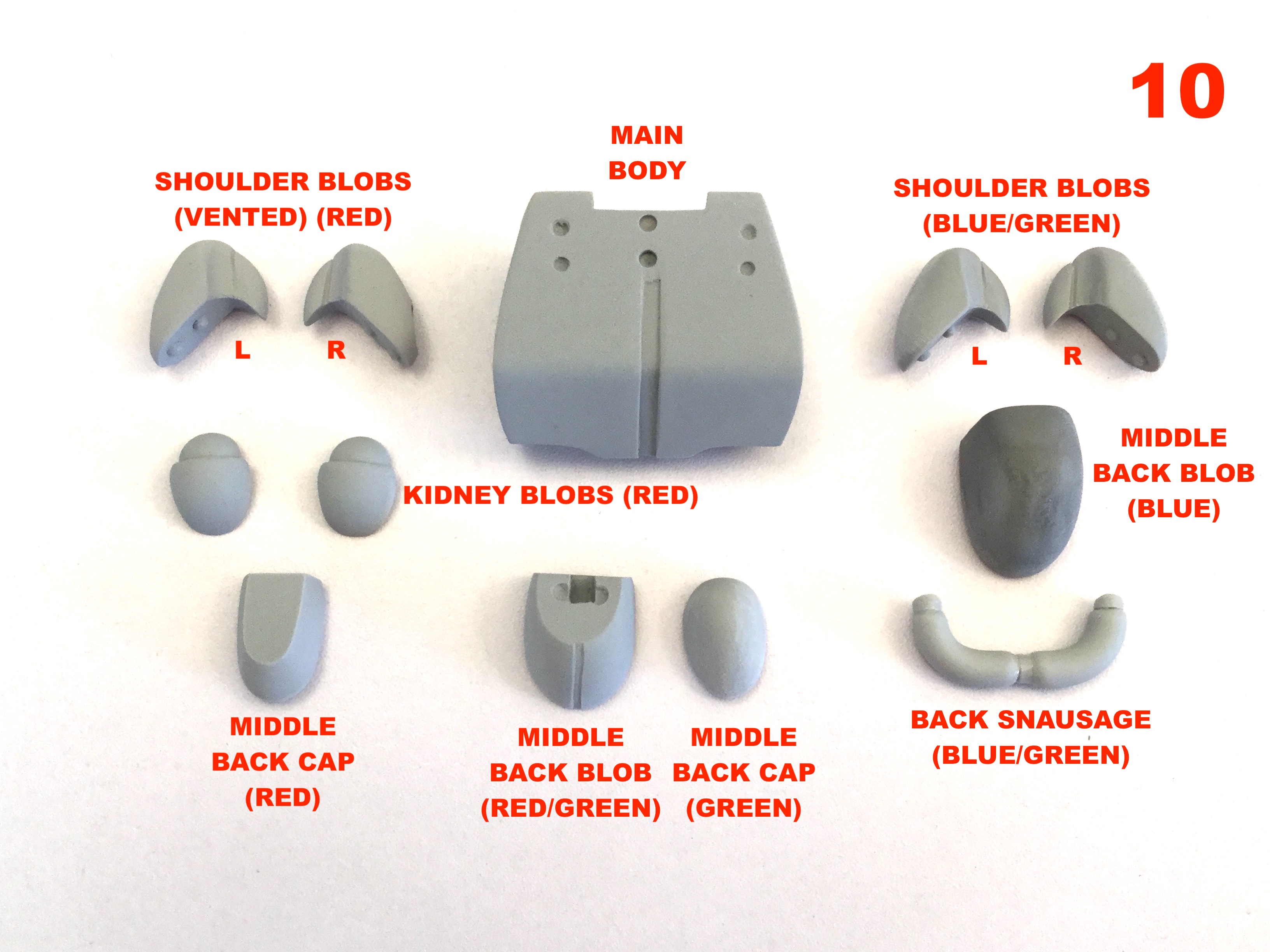

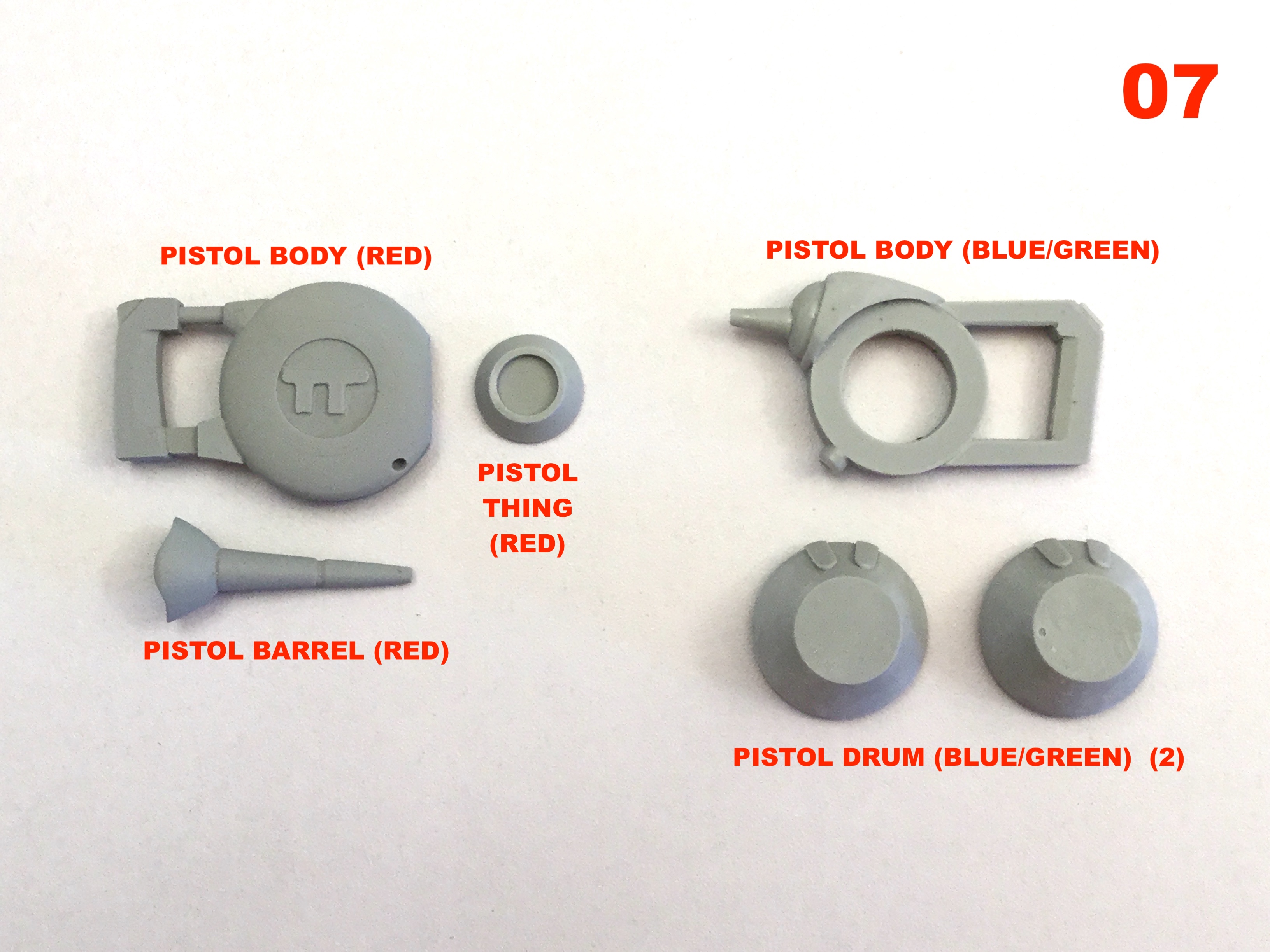

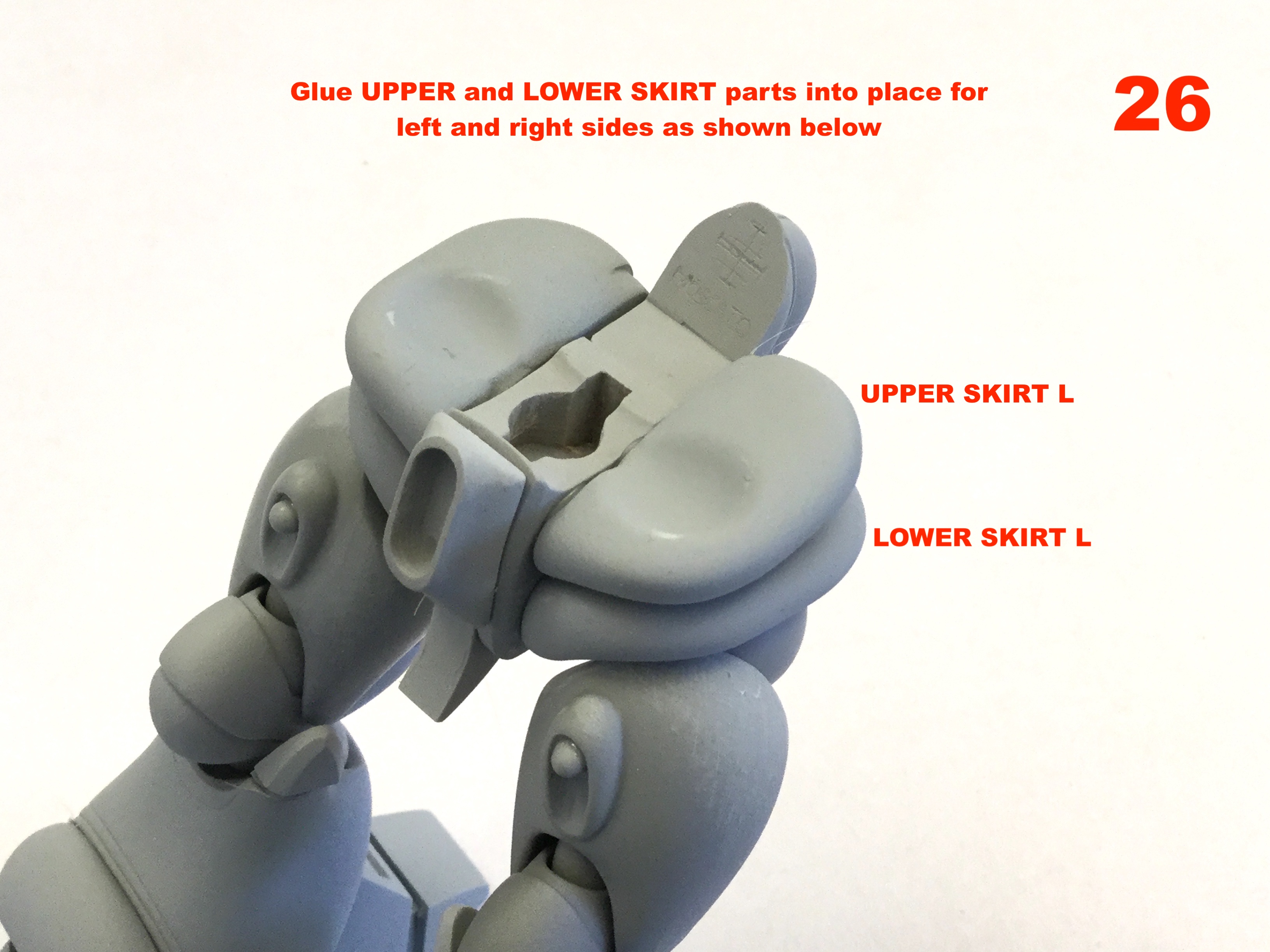

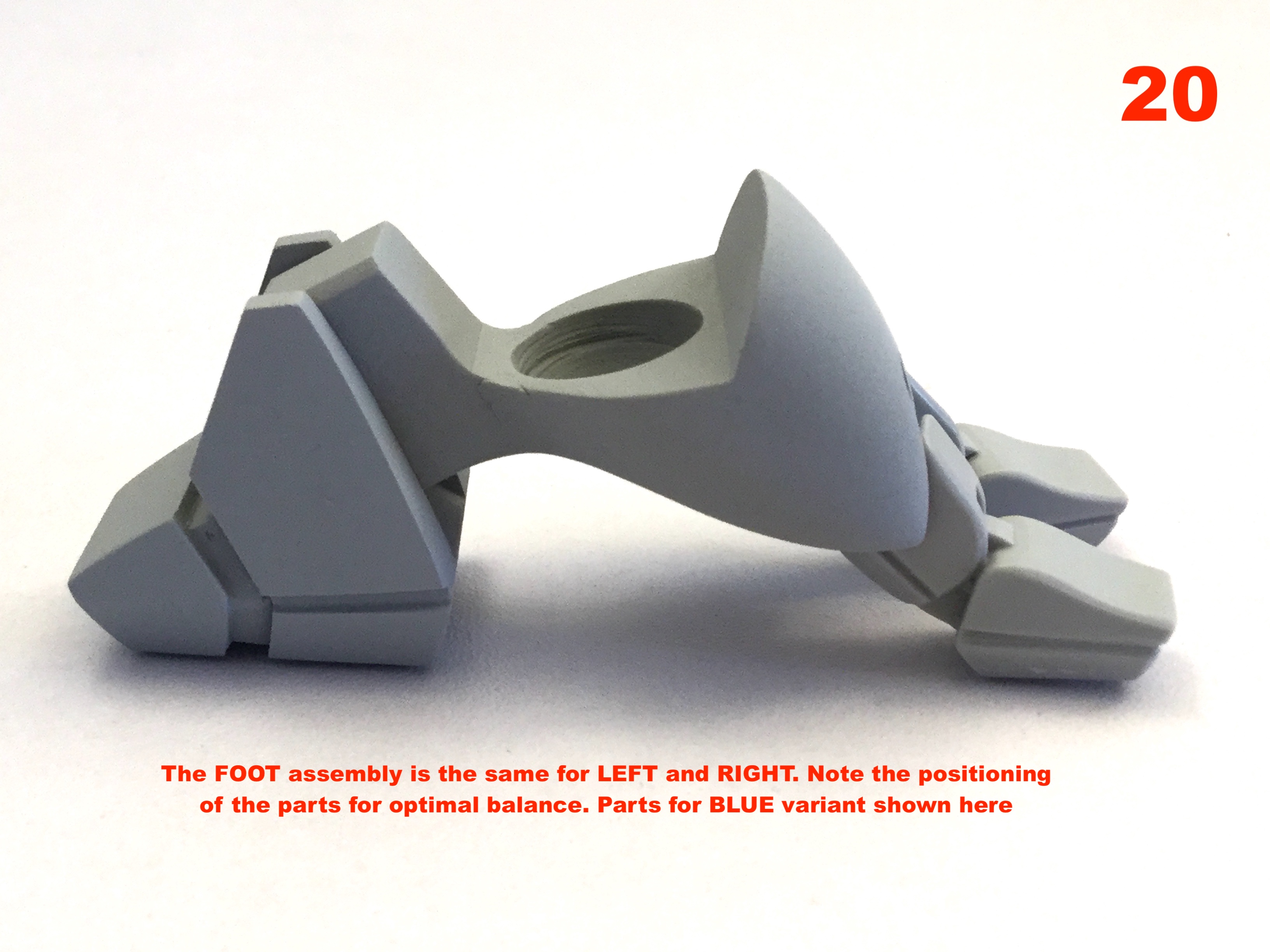

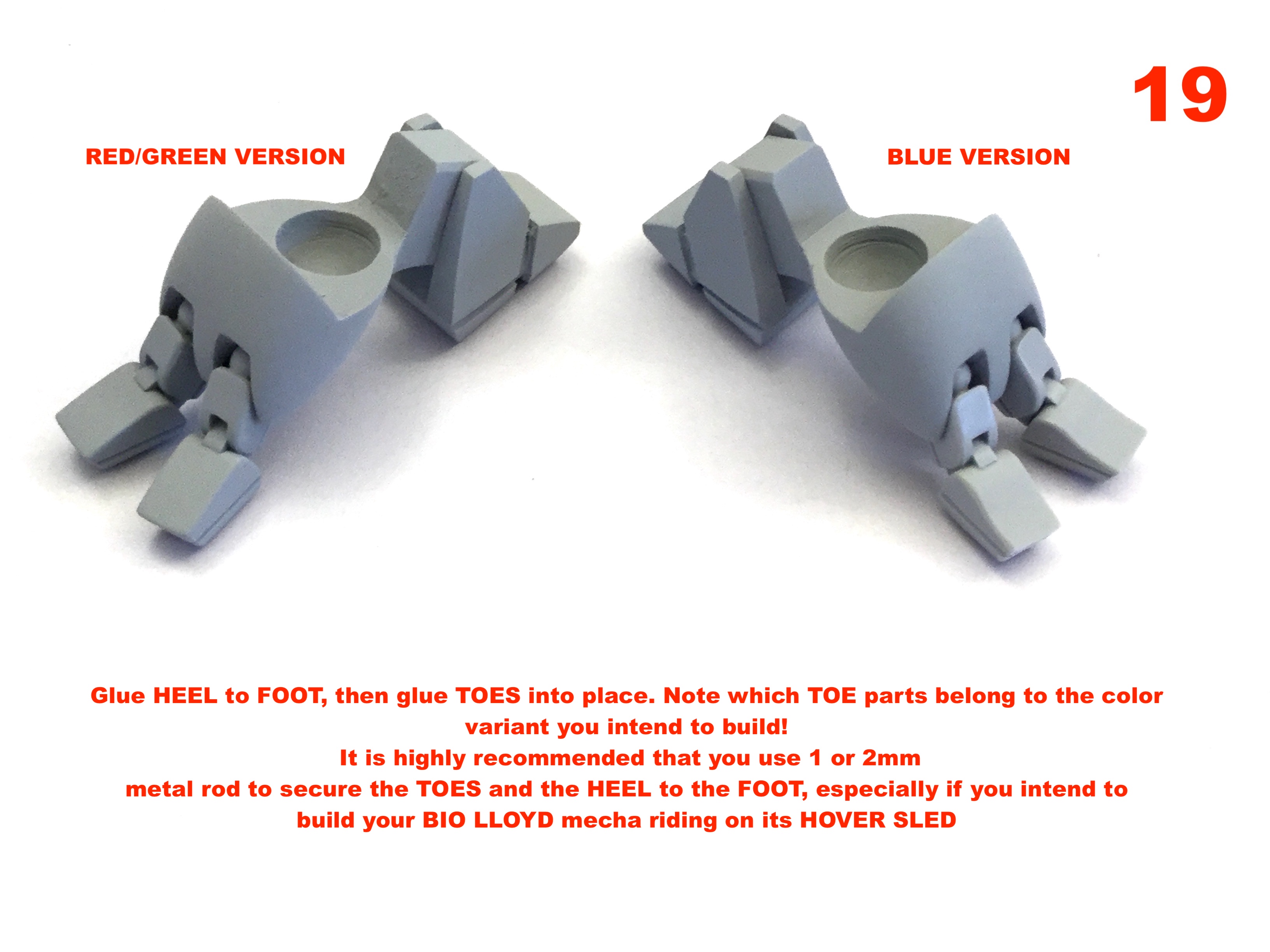

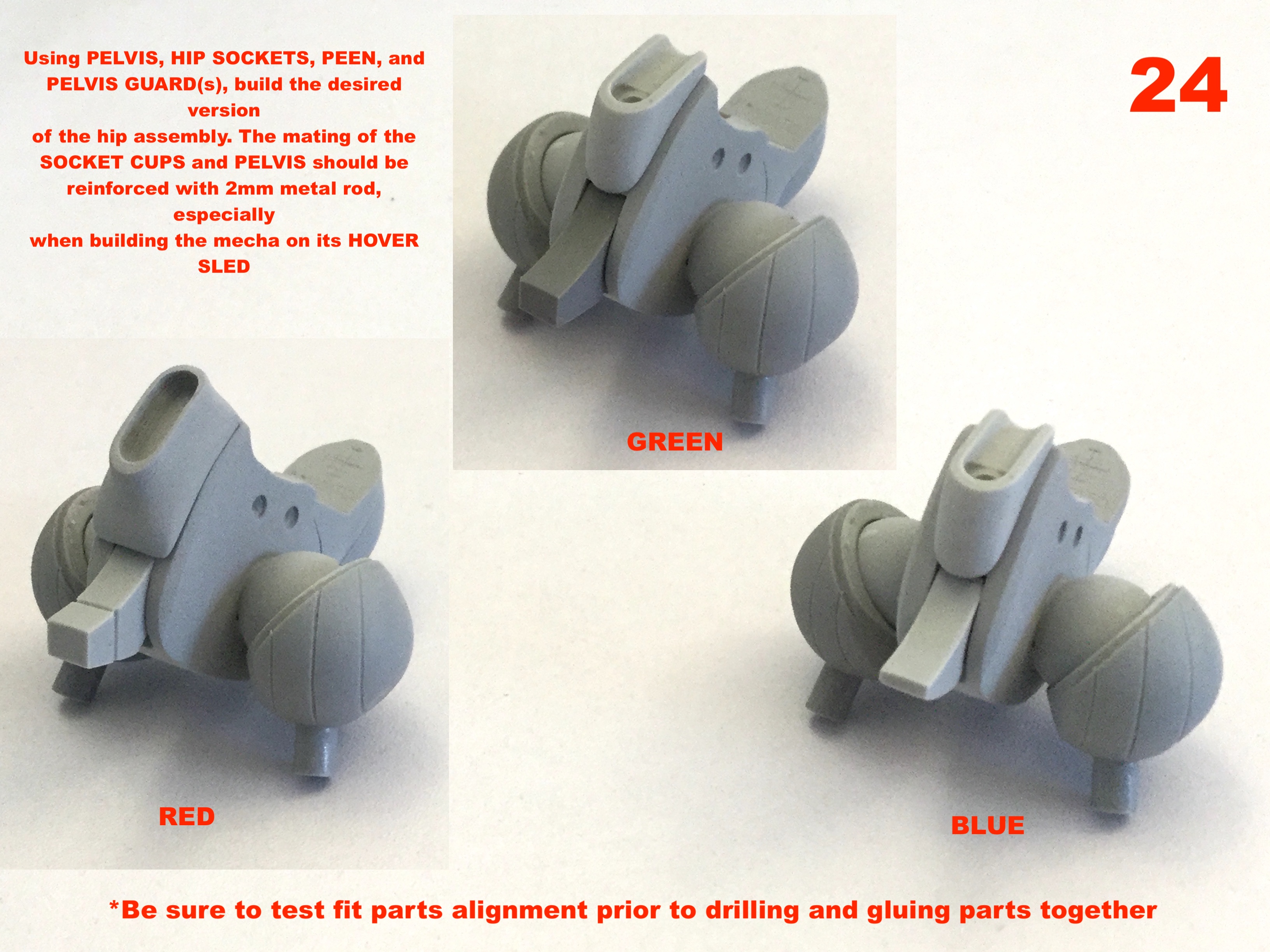

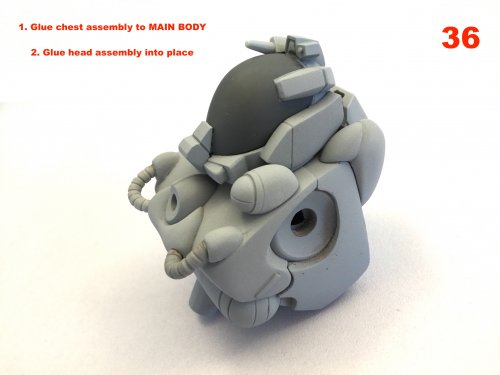

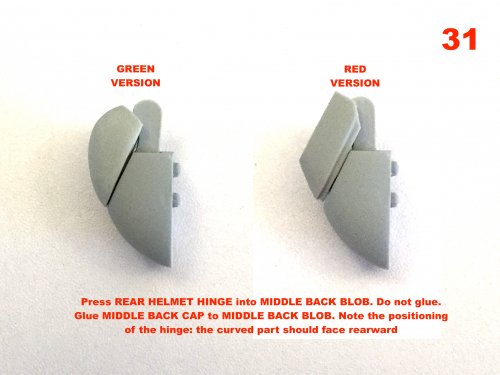

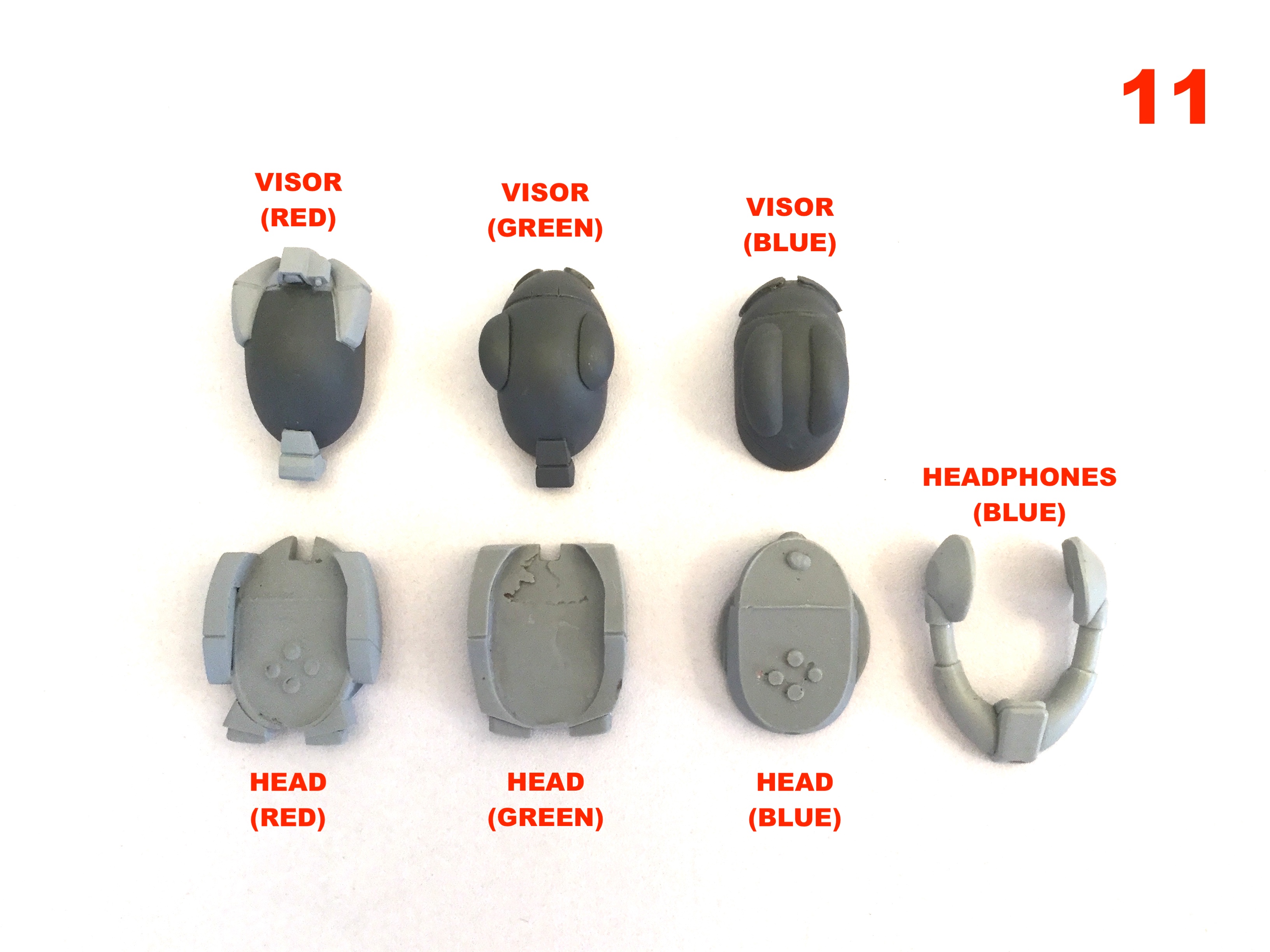

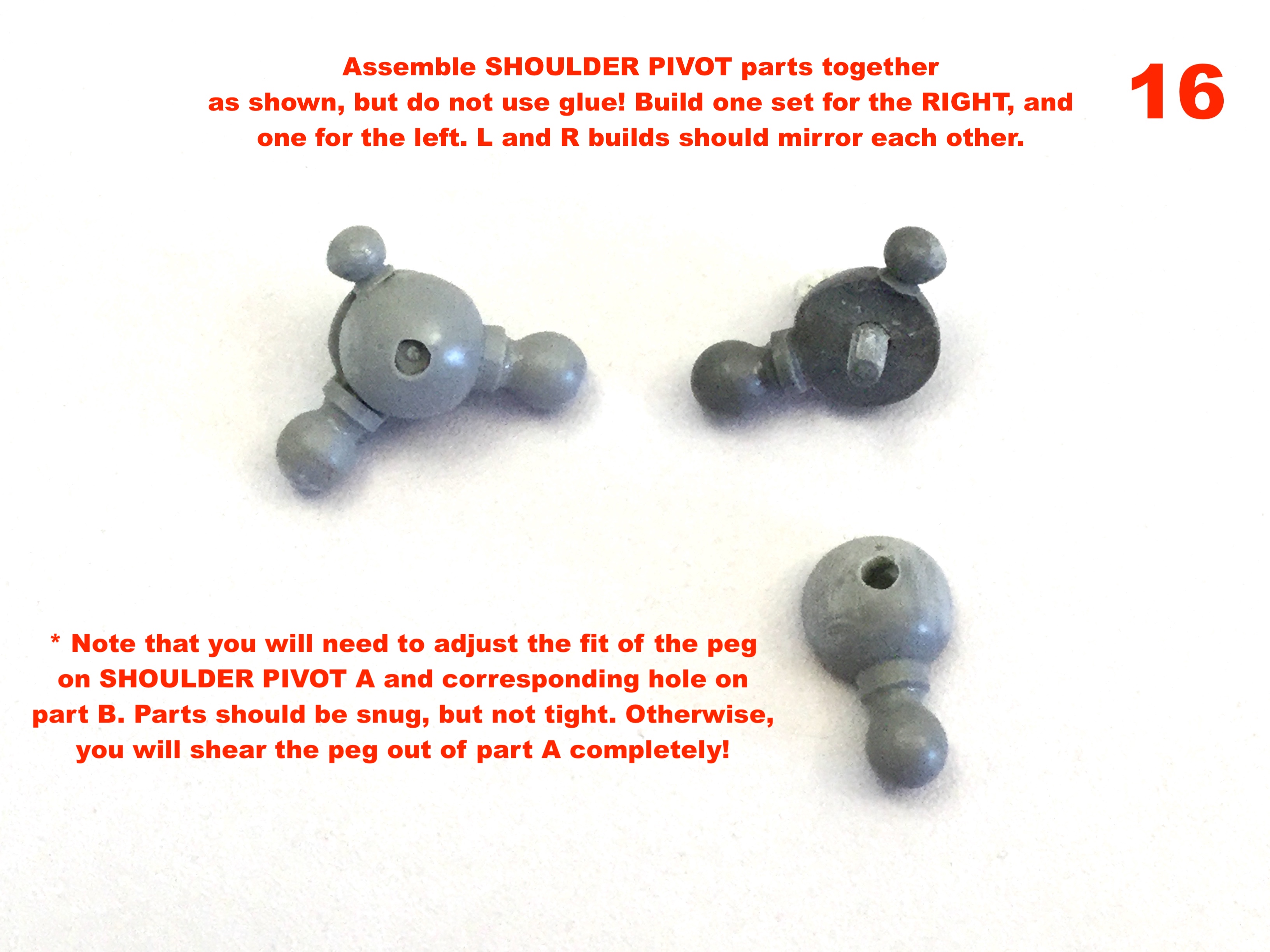

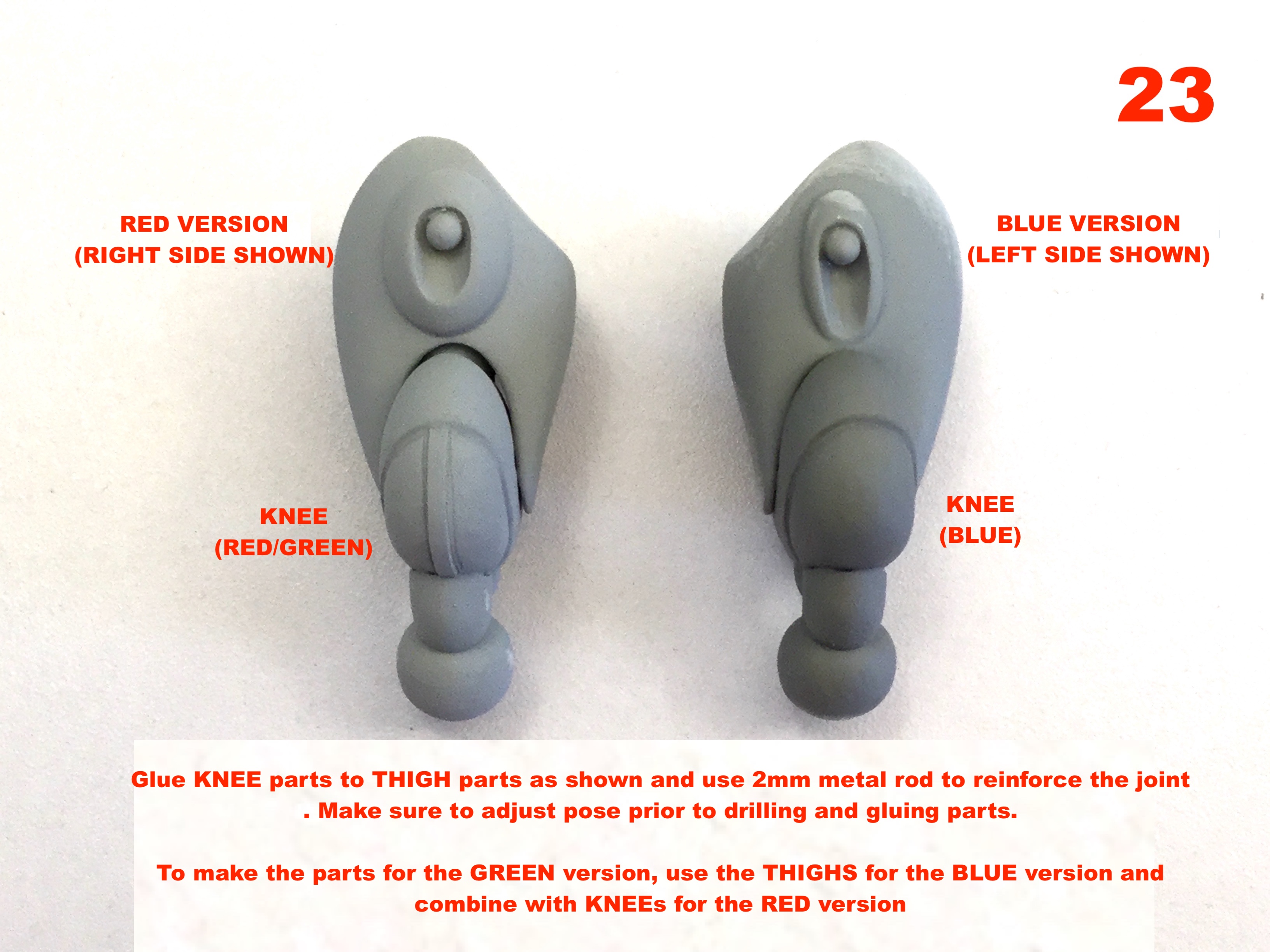

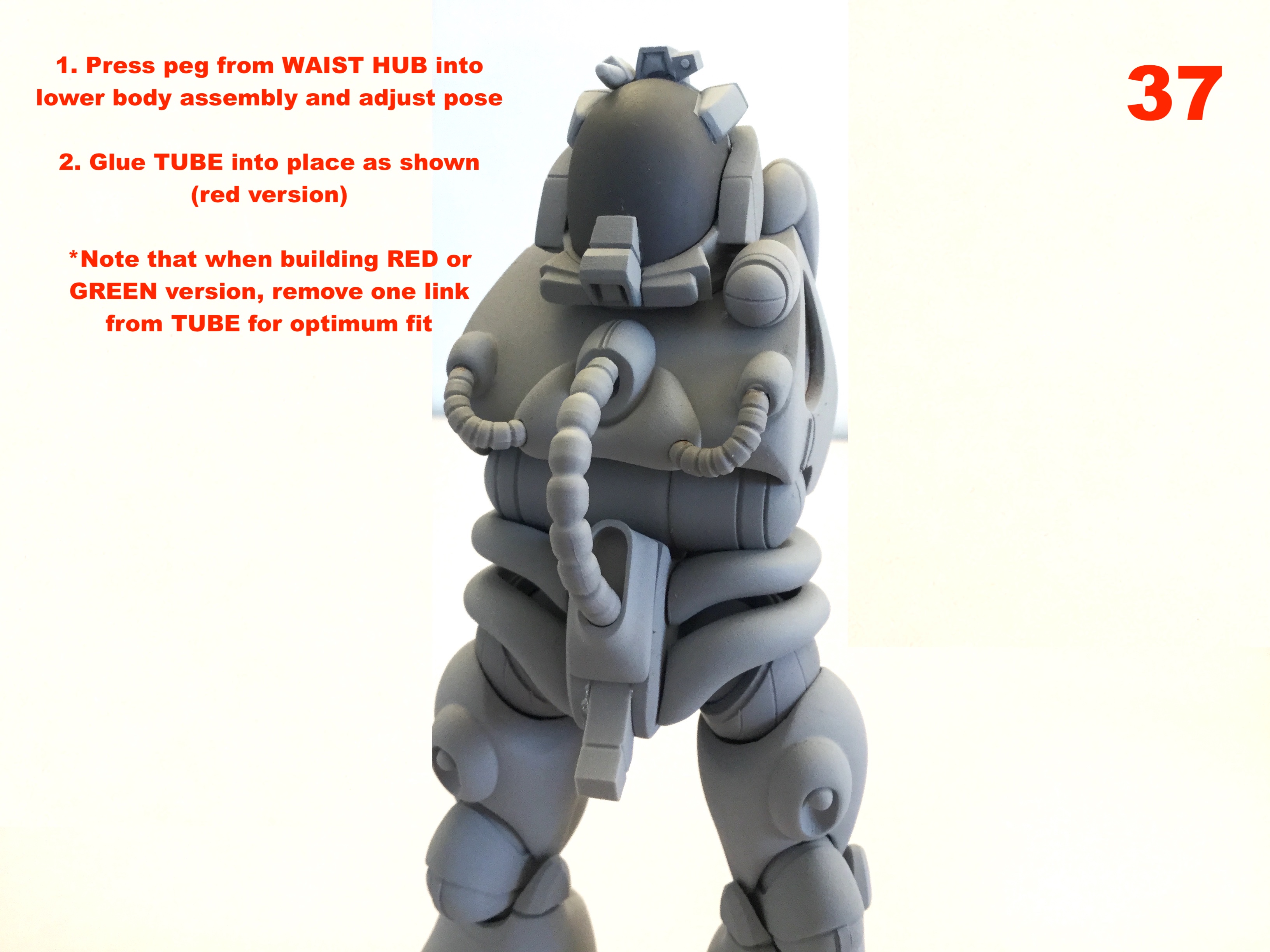

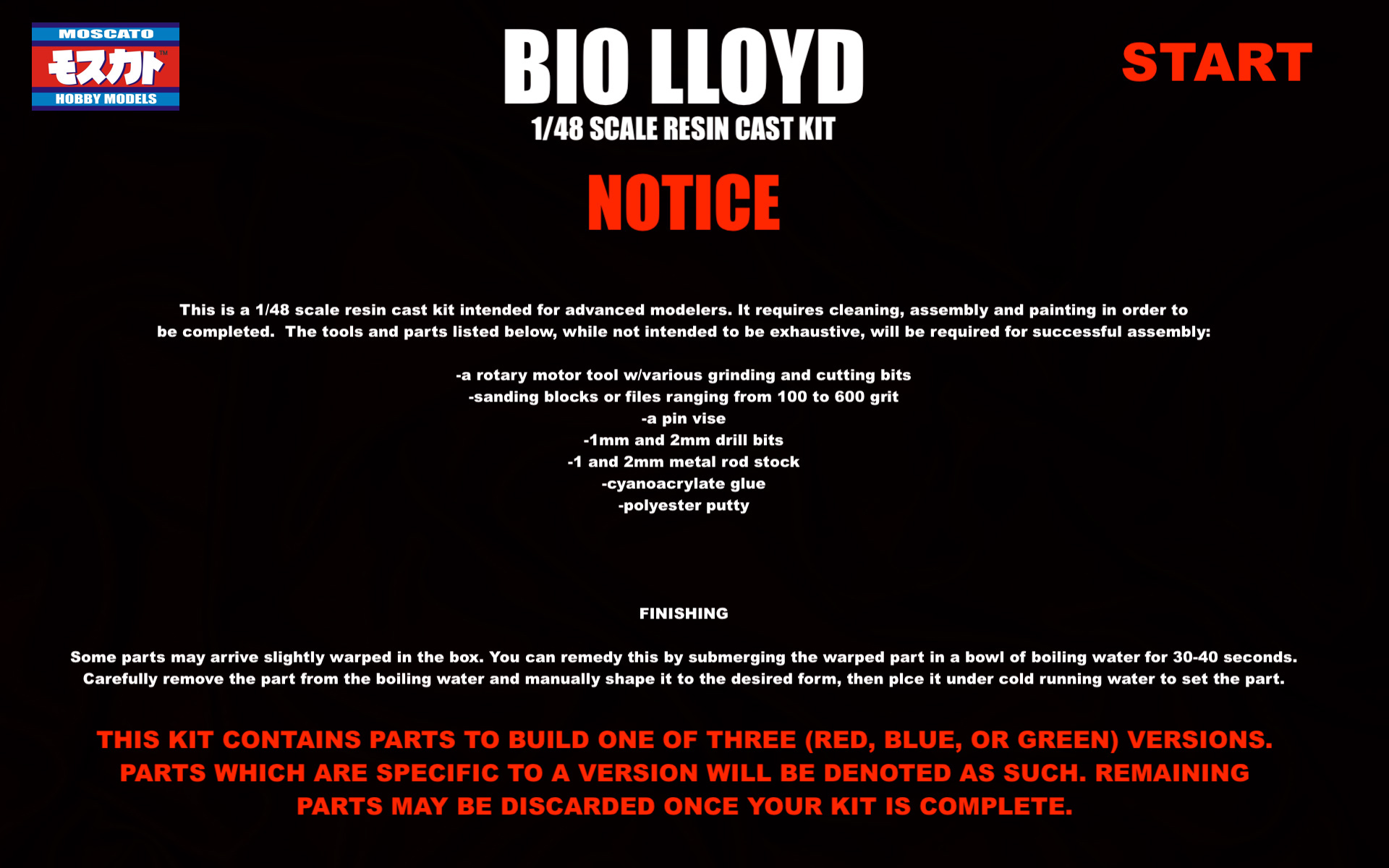

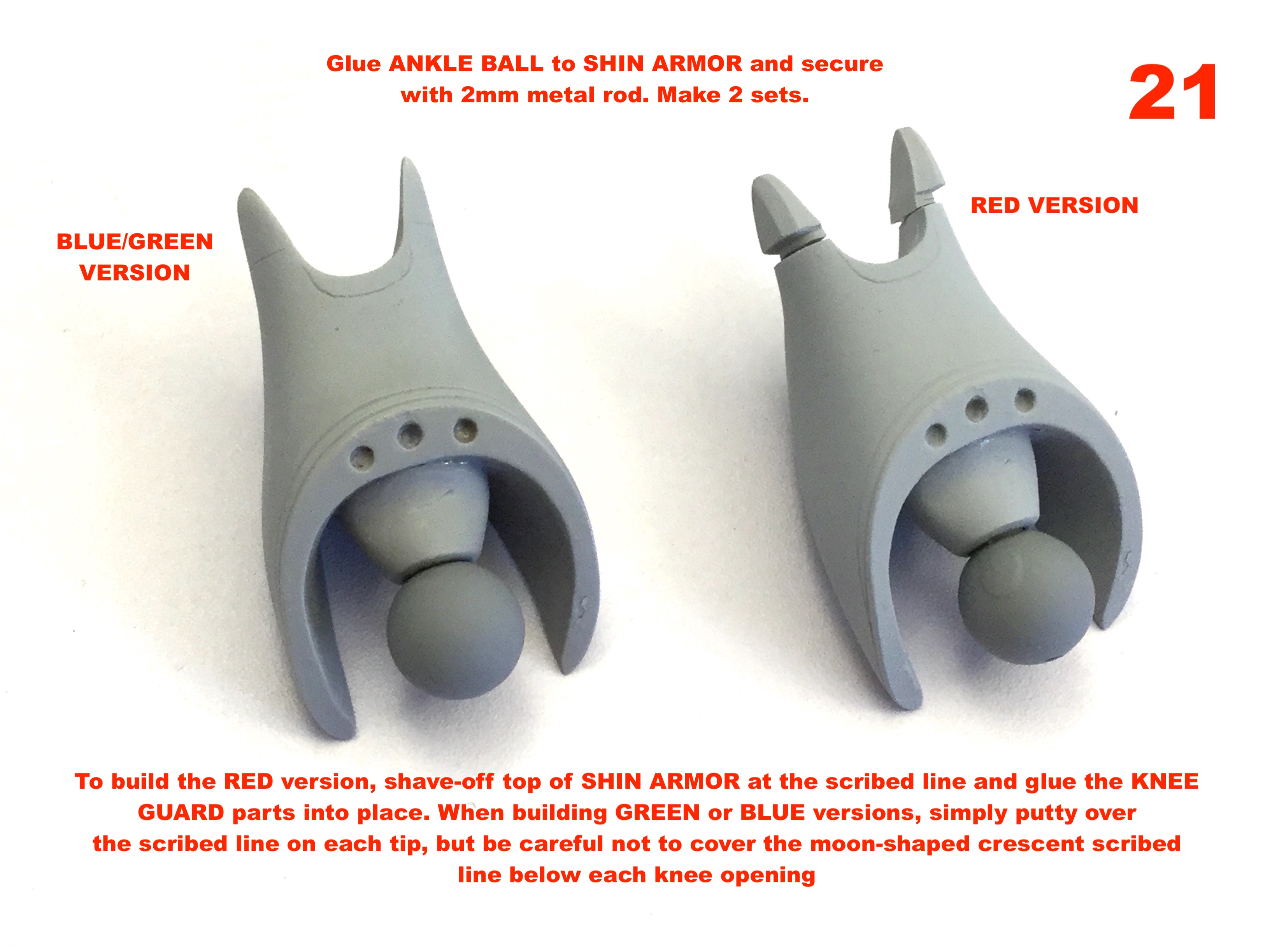

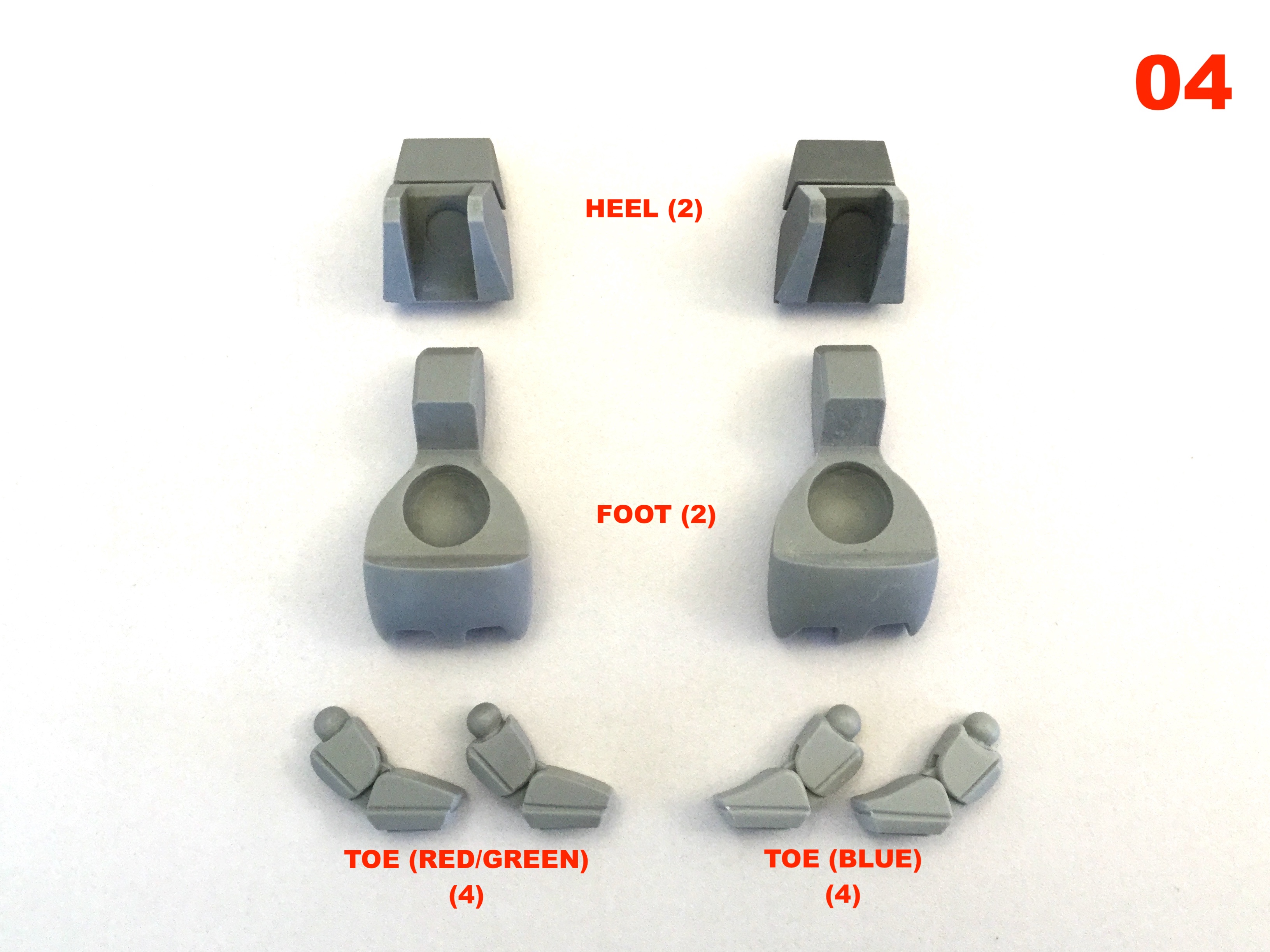

That said, I’ve quietly been casting the BIO LLOYD mechas over the course of the last week, and got almost half the kits made, so the molds have proven their worthiness! Hopefully by this time next week, the sled parts will all be molded too—stay tuned!



[Bolt]

Wowza!

[derex3592]

[Boobytrap]

I really hope you end up doing another run of these. Funds were tight the first time around. I have created a BIO LLOYD fund just so that I can drop some dollars the moment it becomes available (even if that moment is years from now). This work of art is just too beautiful to not have in my life. You are doing God's work good sir.

[captain america]

Captain’s log: April 14th, 2021.

Because the hover-sled for the Bio-Lloyd is comprised of some of the biggest parts I’ve cast in the last 15 years, I had to take some exceptional steps for the molding of the hulls. Last week you saw the adding of the gates and sprues, as well as the construction of the mold box. Understand that these are some of the more extreme procedures needed for large parts, but can easily be transposed to smaller parts as needed.

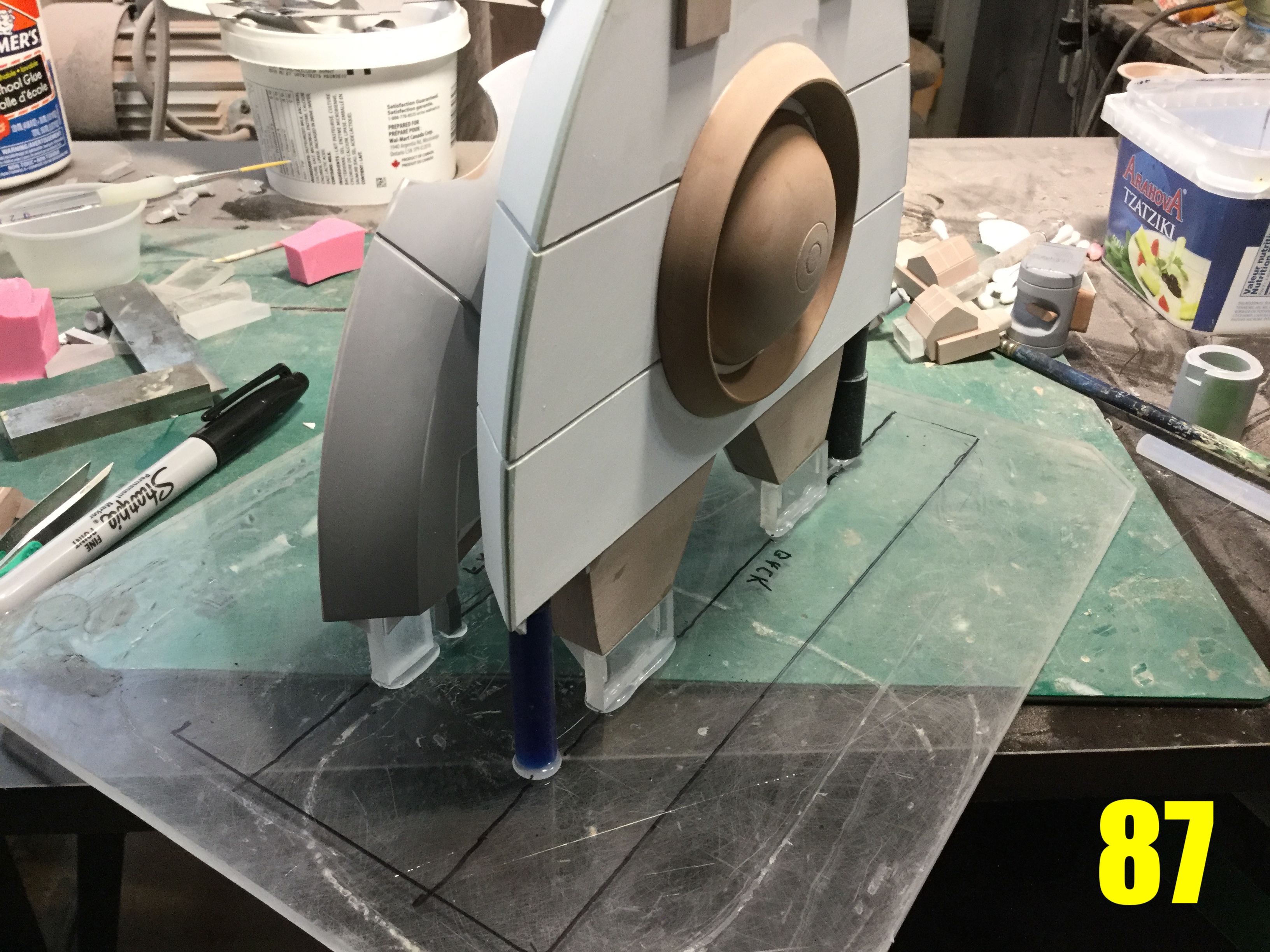

In pic 87, you can see that the whole part is hot-glued down to a 5mm acrylic base. You want to have a base thick enough to not flex under the weight of the box and then the silicone when poured, otherwise the part can detach and shift in the liquid silicone and ruin the whole mold.

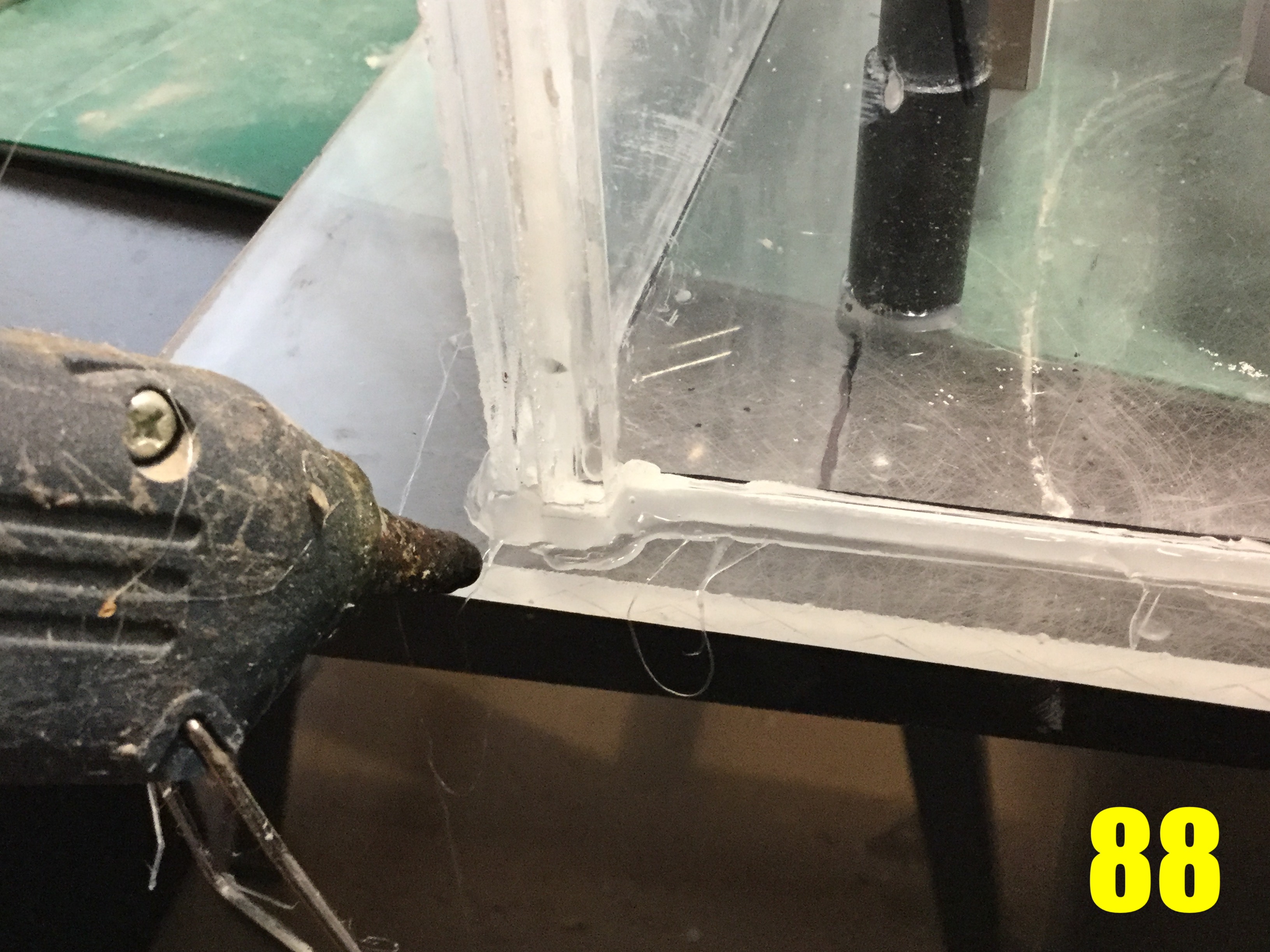

Pic 88: once the parts are attached to the base, the mold box is carefully placed and it too is hot glued to the base. You have to be very careful with this step; make sure the entire perimiter is sealed, otherwise the smallest gap will cause the mold to spring a leak!

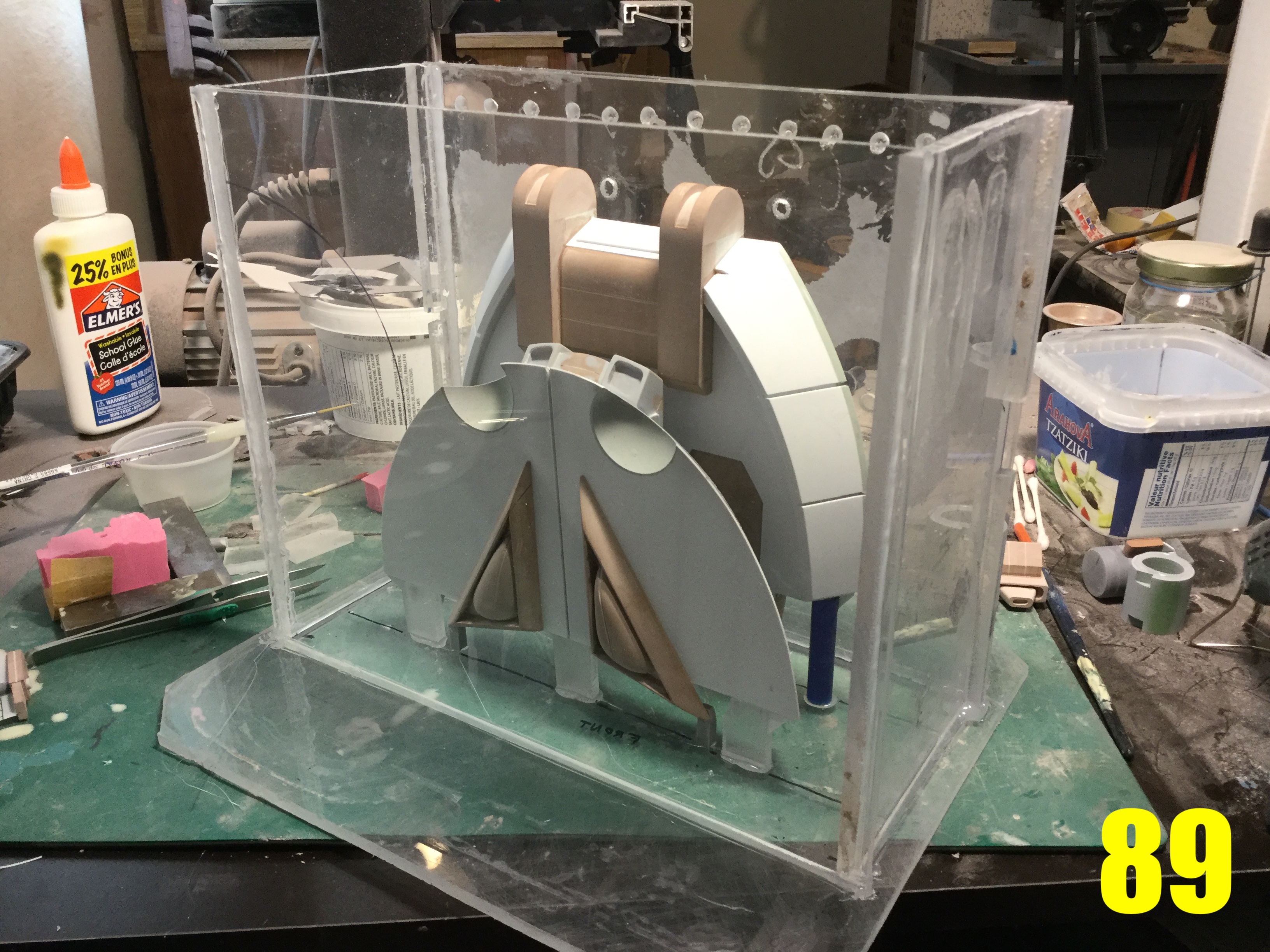

Pic 89: the whole box is sealed and now ready to accept the silicone rubber. You may notice that there’s lots of room inside the box, and this is by design: the bigger the part, the more resin it requires, and thus the more heat produced by the resin. Over time, the exothermic reaction will slowly cook the silicone and break it down, but the more mold material there is, the more the heat can be dissipated and thus preserve the mold.

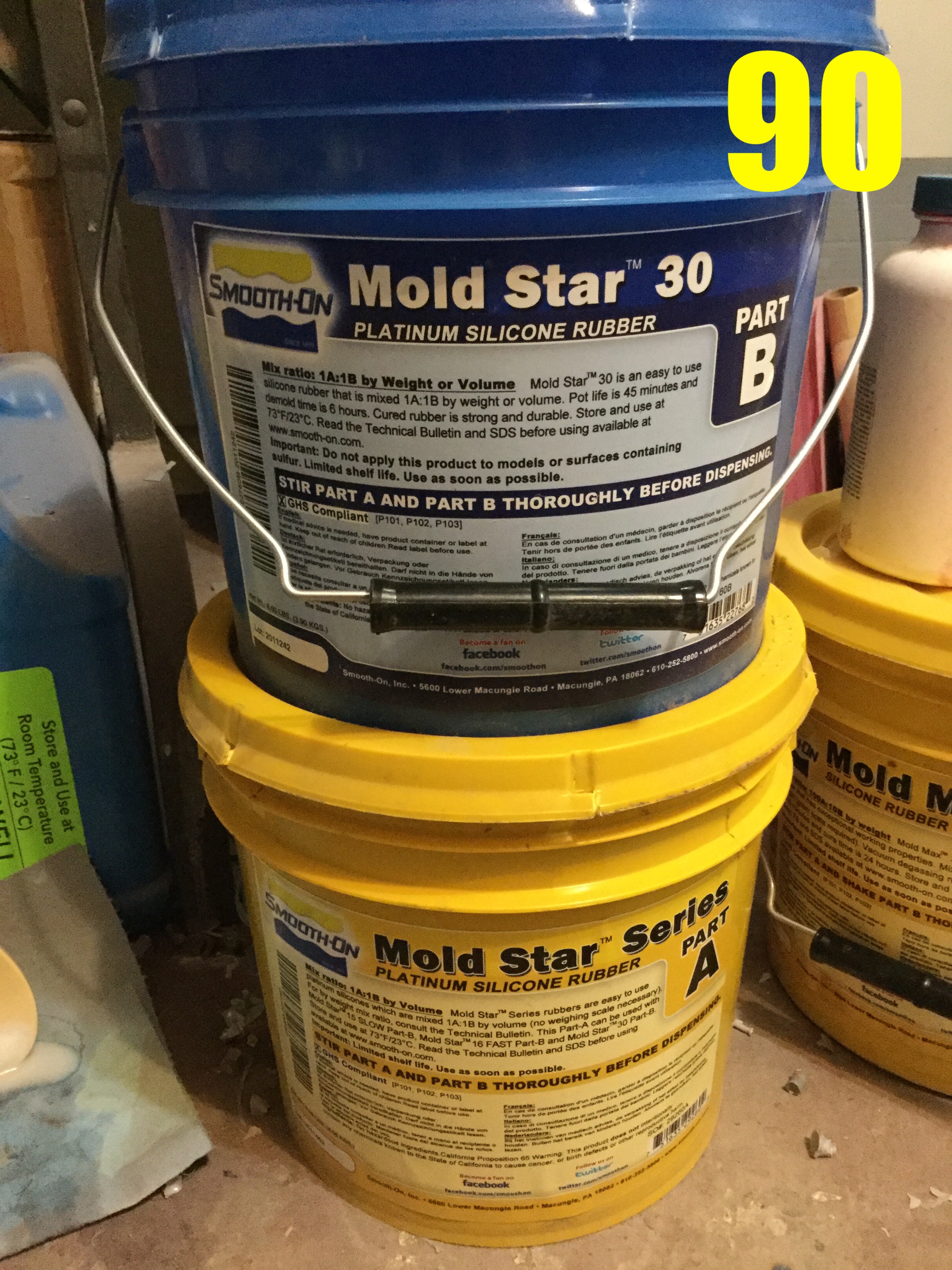

Pic 90: I worked-out some of the bugs in using the Mold Star silicone, so this is what I’ll be using. One distinct advantage is the very short cure time: a scant 8 hours as compared to the 24 hours needed for MOLD MAX, and because it’s platinum based and contains no ammonia, I don’t have to let the mold air-out for the next 2-3 days.

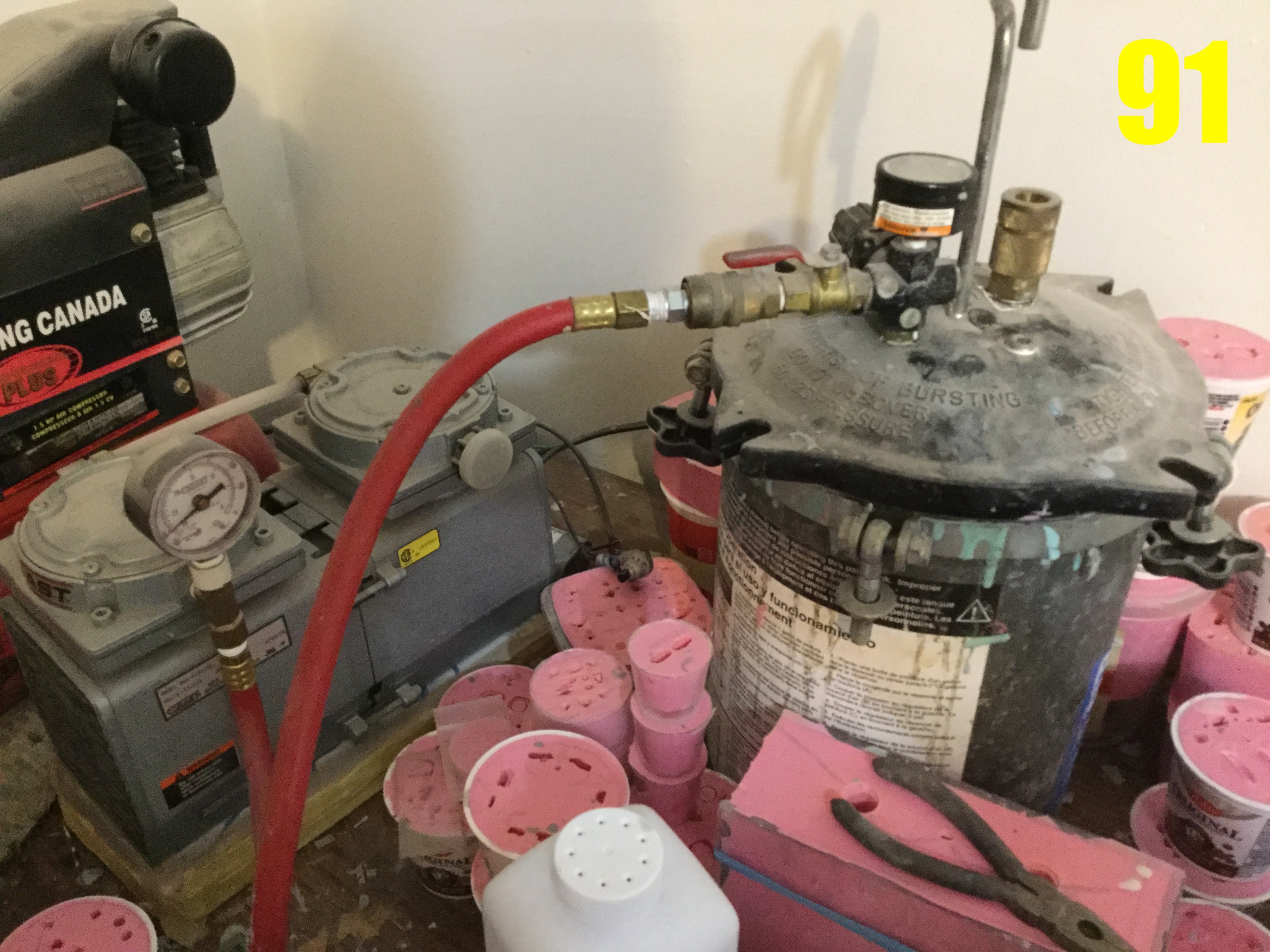

Pic 91: even though Mold Star 30 is low viscosity, it still needs to be degassed before pouring, so after I mix the two parts thoroughly, they go into the vacuum chamber for a few minutes.

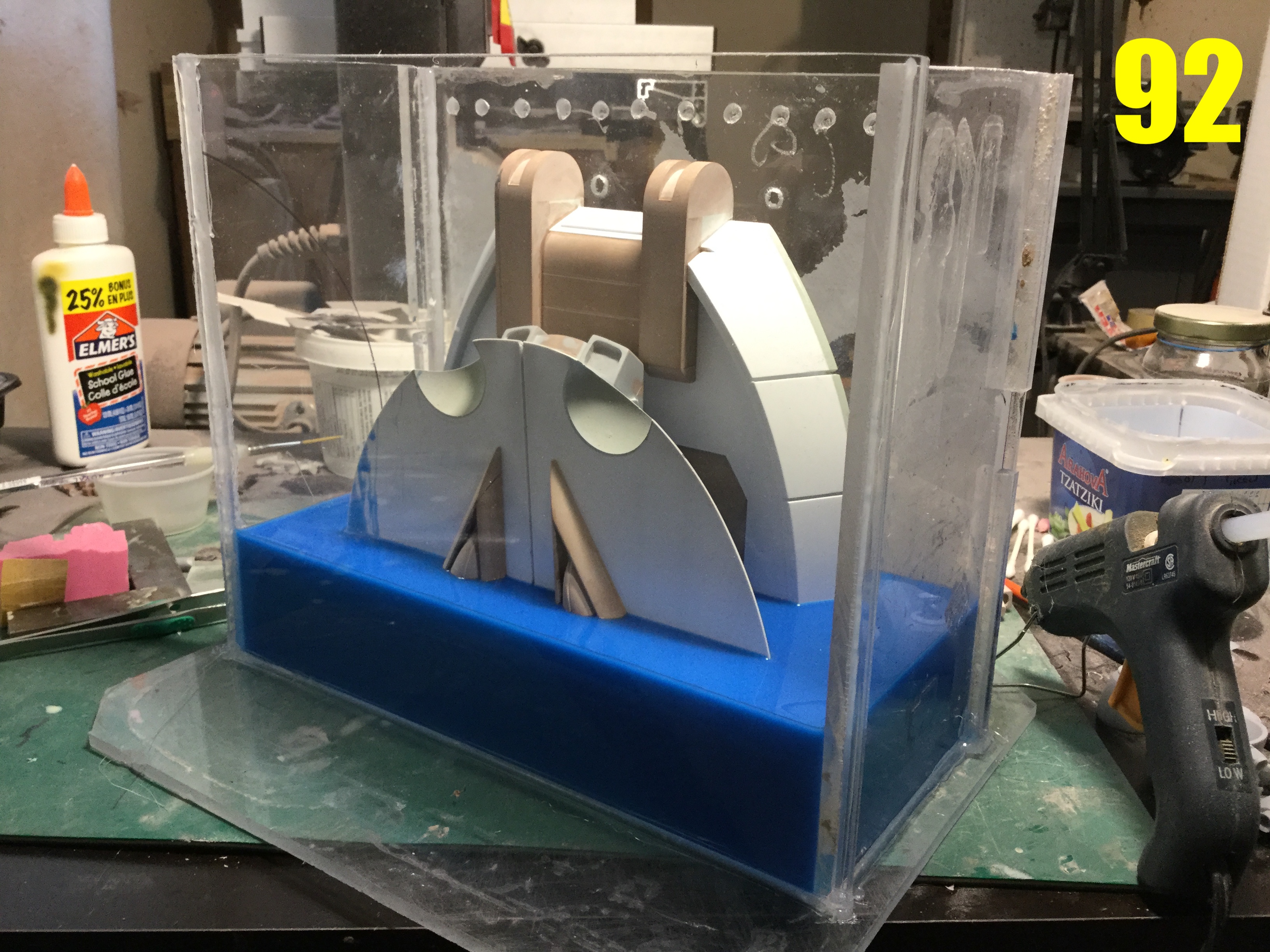

Pic 92: another critical trick you need to use with large molds like these is to pour it in 3-4 parts. The idea being that you pour the first part a quarter of the way and let it partly cure: in doing so, the silicone will gel and help seal the bottom of the mold. You have to remember that the sheer weight of the silicone will push against the mold box and if it’s not properly braced, can cause it to burs open. Ask me how I know…

Once that first part turns relatively tacky, I can pour the rest of the mold (still in stages) until the parts are fully submerged.

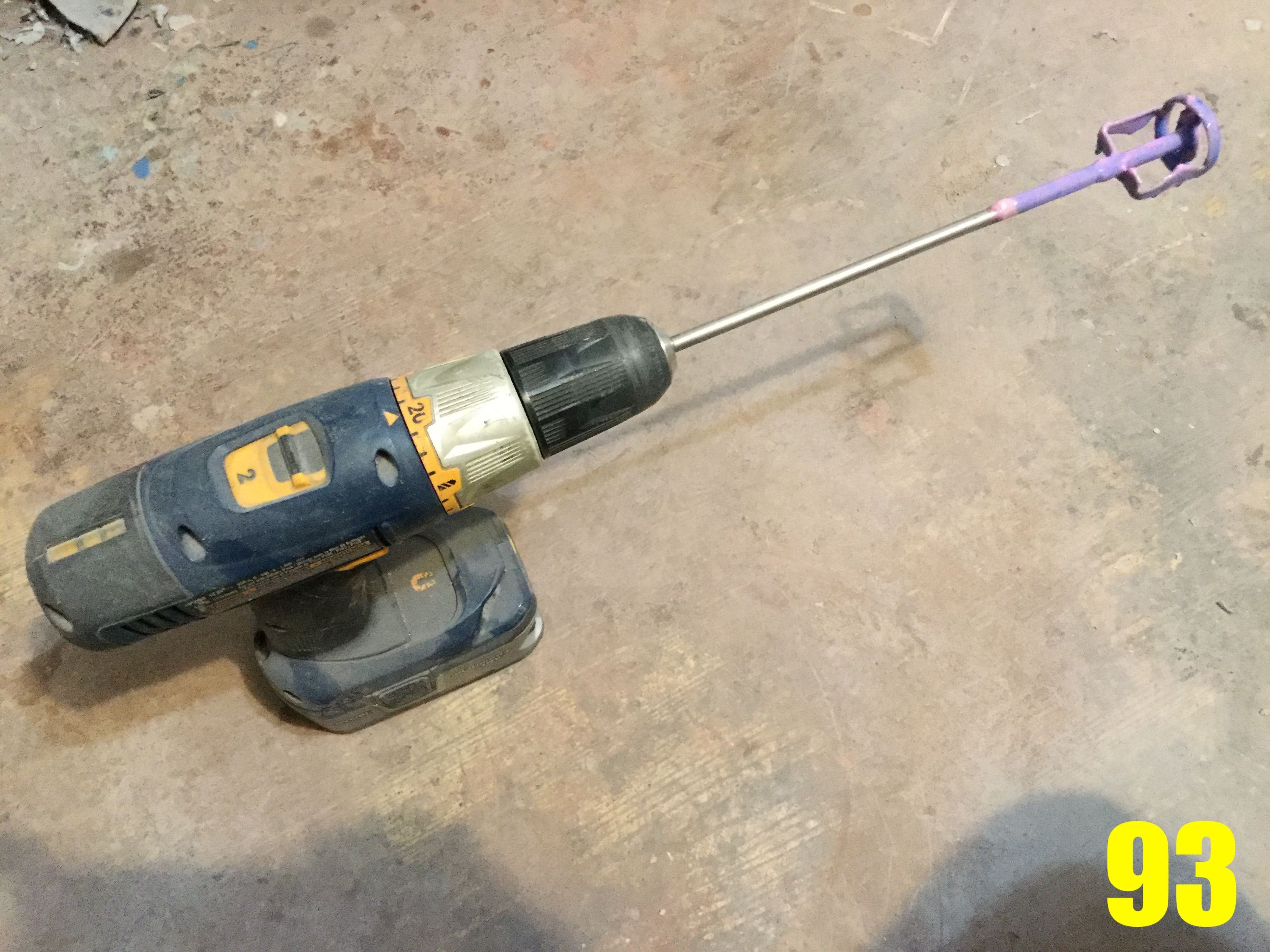

Pic 93: an important tool when mixing silicone rubber is a squirrel cage mixer, which you see attached to my drill. Hand mixing, particularly for anything over 500ml, is neither fast nor thorough enough, so a good mixer will ensure a uniform mix, and no uncured surprises.

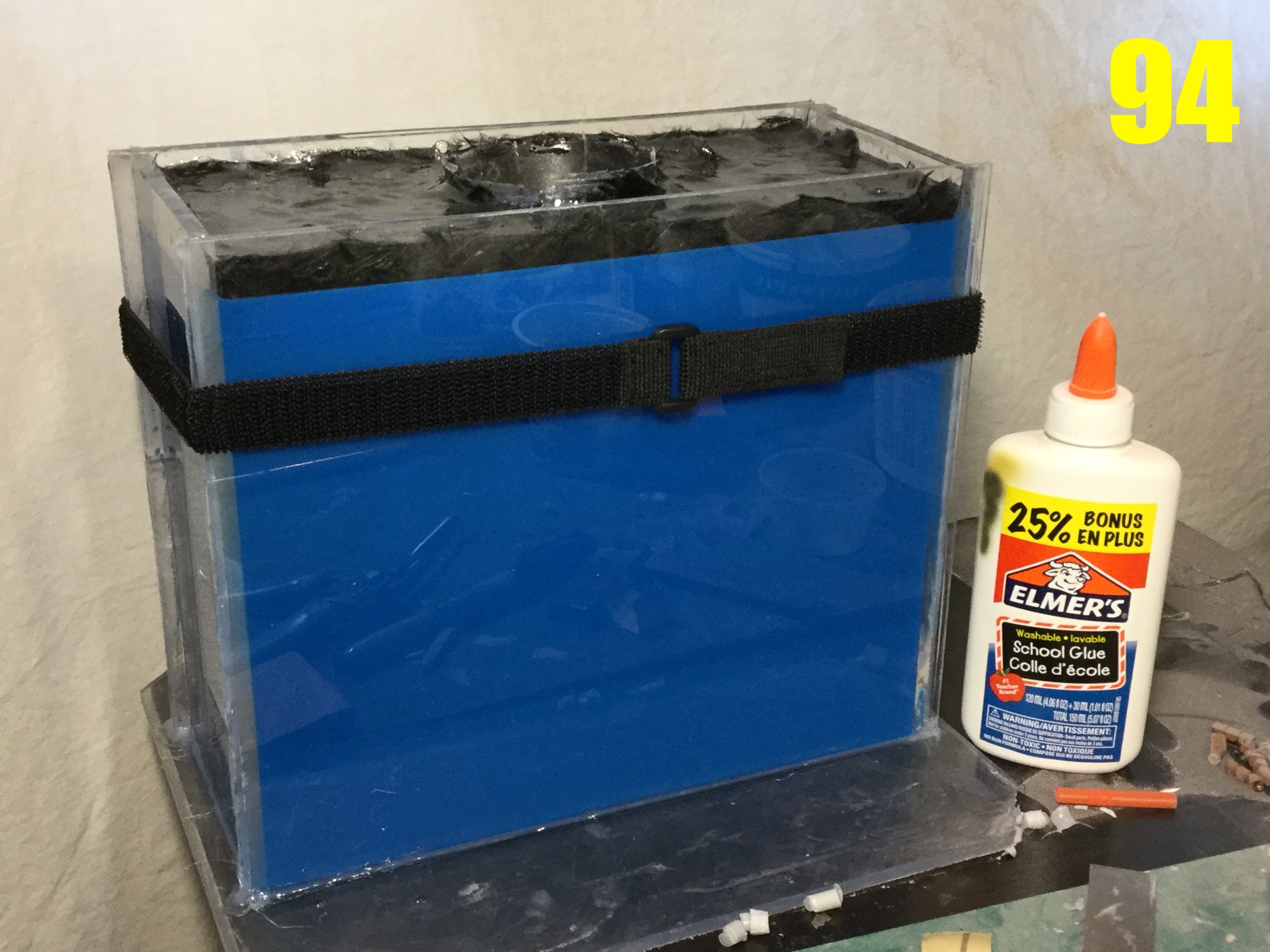

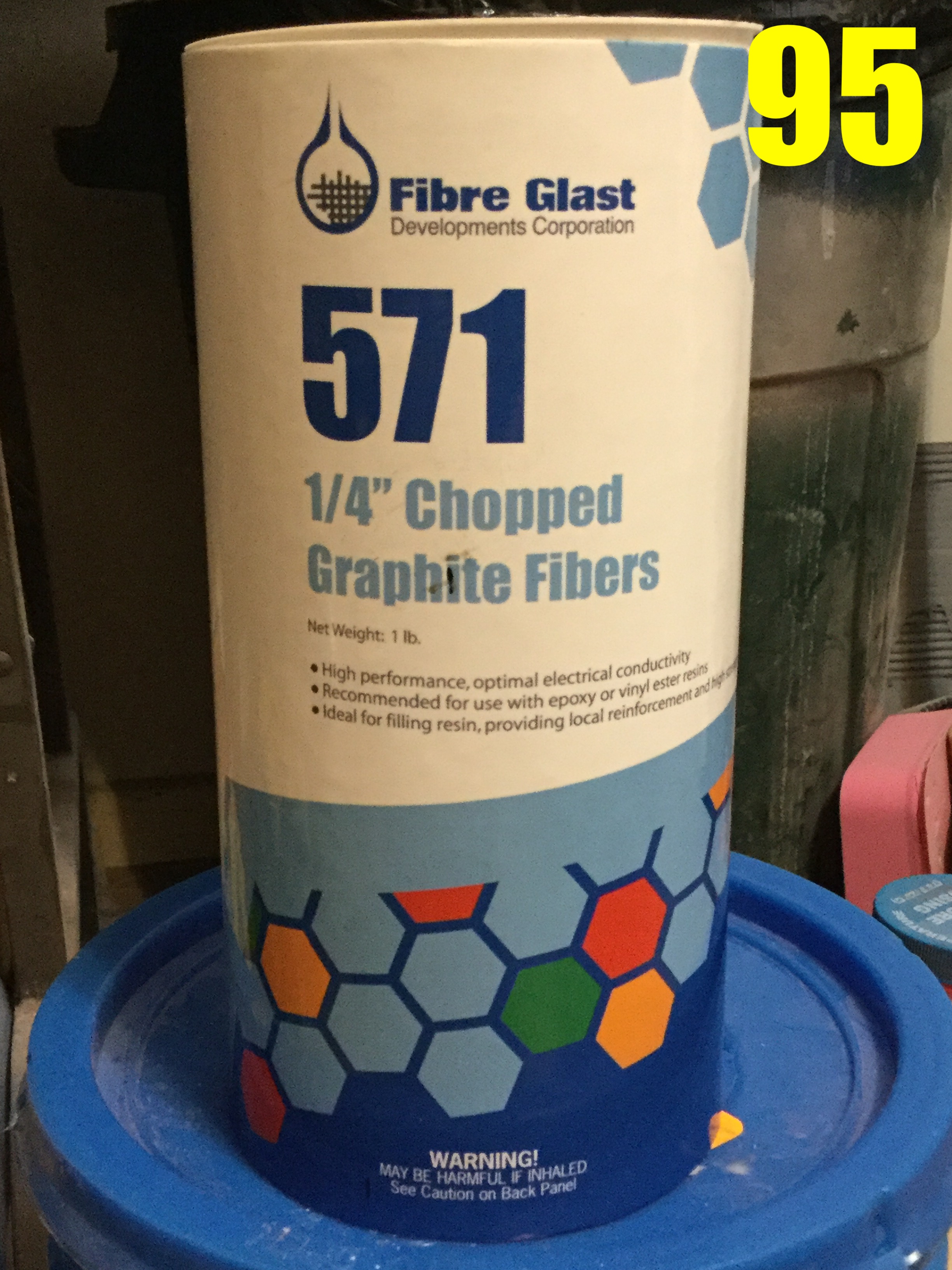

Pic 94: the mold is now cured! Before demolding, I need to create a reinforced bottom to support the mold, and since this is one heavy mold, I didn’t want to take the chance of just using resin and have it fail, so I mixed the resin with some chopped carbon fiber for added reinforcement; I’m just extreme like that.  The exact product I used is shown in pic 95.

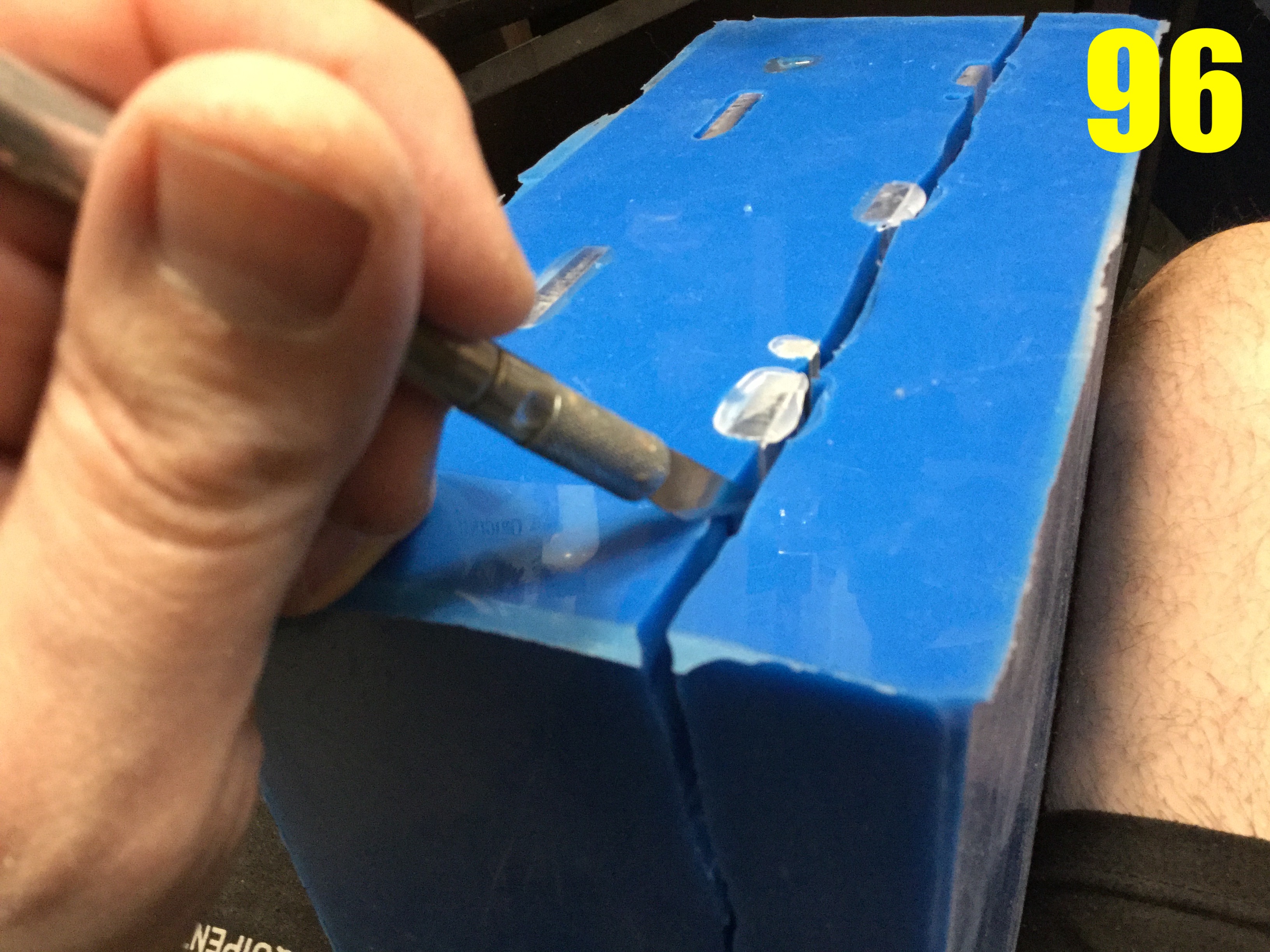

Pic 96: now that the reinforcement has also fully cured, I can proceed to the extraction of the masters. Using my trusty hobby knife and a new blade, I carefully cut the mold open and extract the masters.

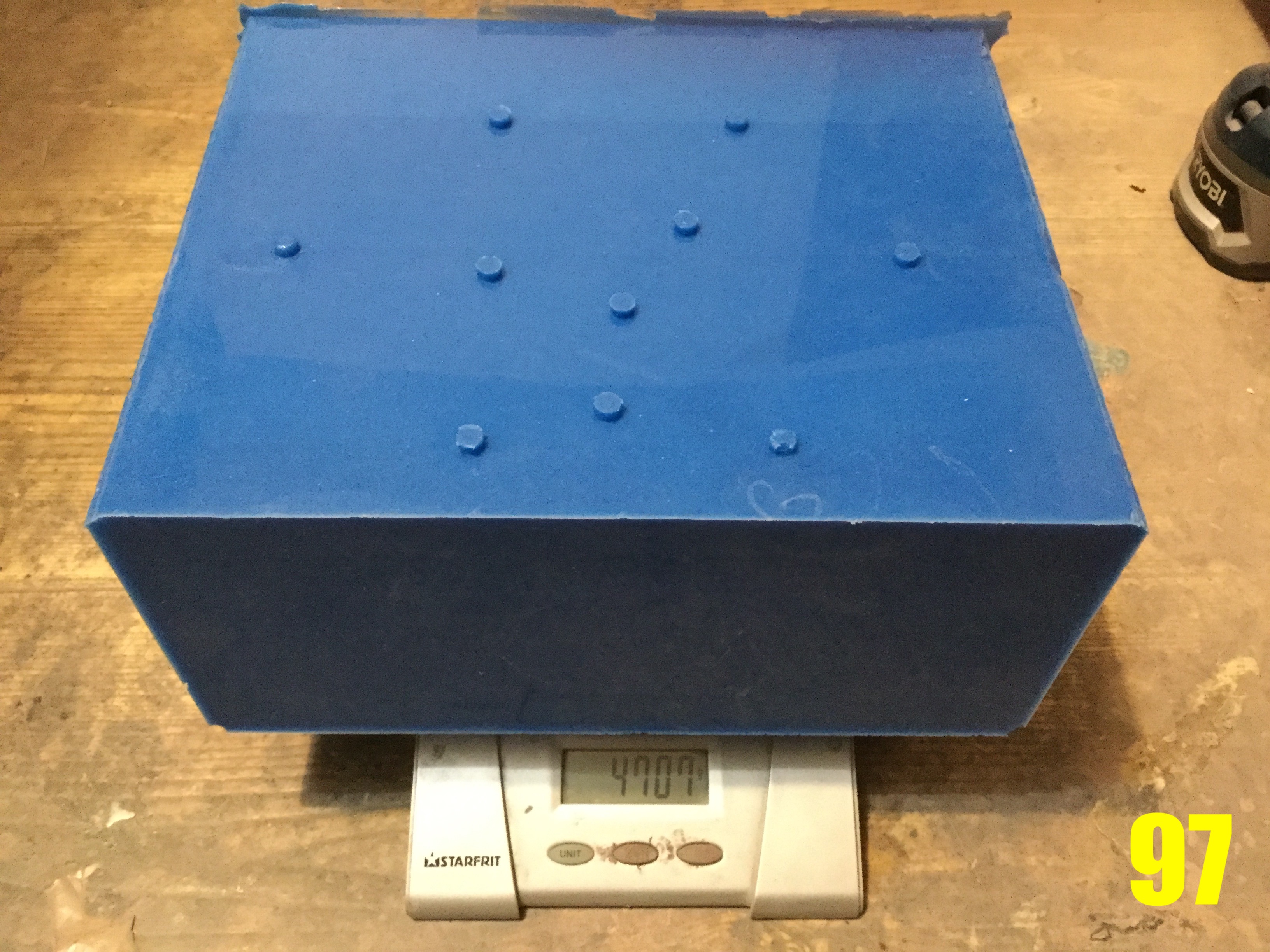

Pic 97: 4.7 kilos, baby!! That’s a little over 10lbs for you Imperialists, and this is without the box, and he masters extracted. Now the real test will be the castings themselves.

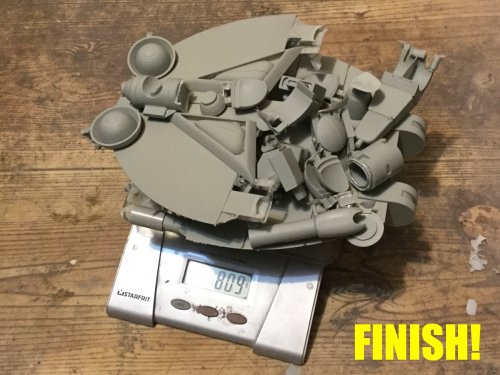

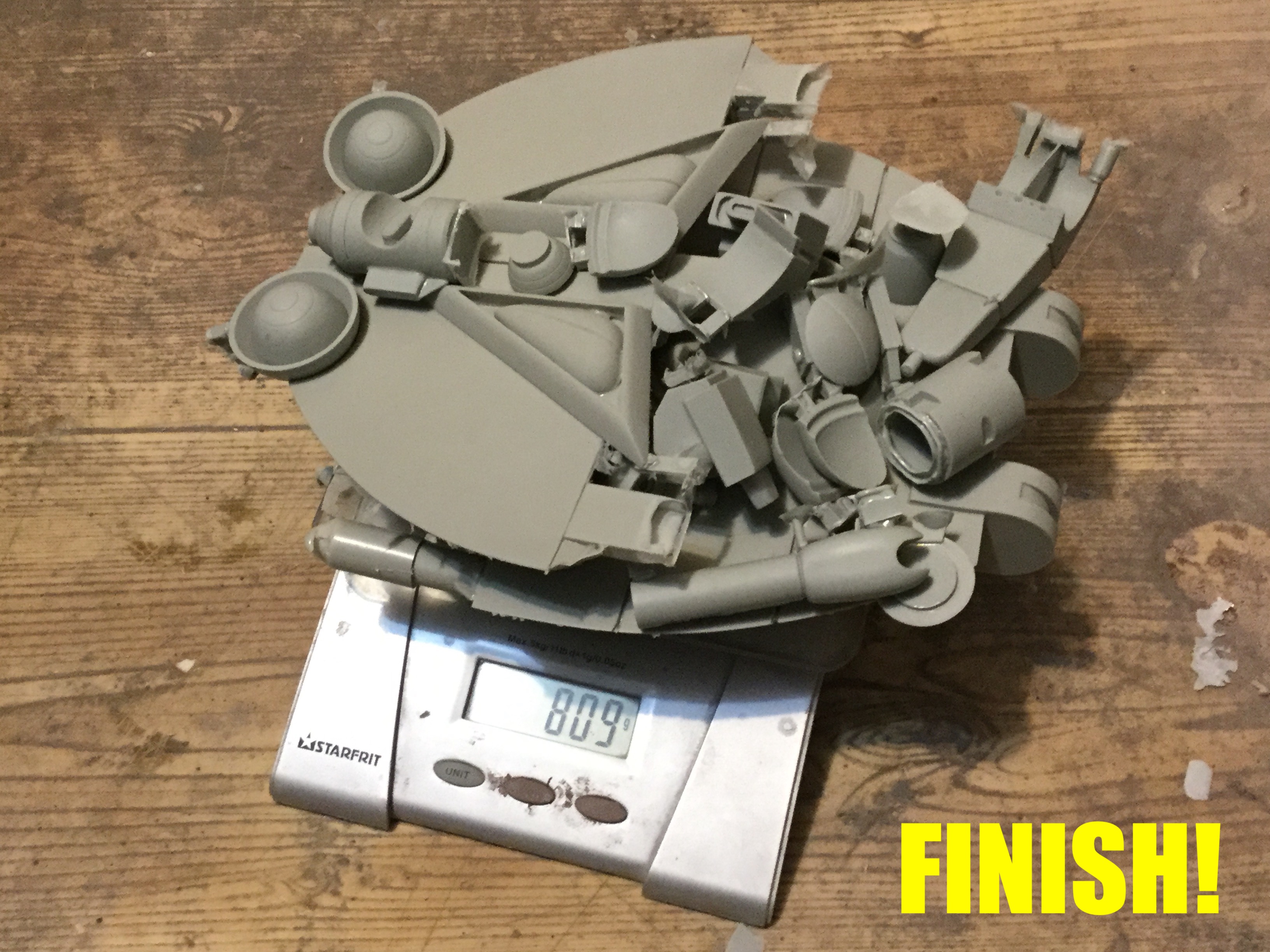

The molds are a success: 850ml of resin just for the sled parts, and another 400 for the Bio Lloyd mecha, so 1250g of resin for one kit, excluding the rubber parts. As I type this, production is already underway, and this brings my 1/48 BIO LLOYD tutorial to a close. I sincerely hope that even if you never get around to using any of these techniques, that you still learned a few things, and come away with an appreciation of old-school model making, as well as all the time, effort and planning that goes into making a model like this.
