Gatsu Posted September 6, 2016 Posted September 6, 2016 Hello, i need to ask a question to the expert modelers here: does exist a production of tiny magnets of various shapes and dimensions for modelists?? I'm thinking about using micro magnets to fix the issue with the pegs in the vf-1 1/72 wich should block the legs in fighter mode. Quote
Darth Mingus Posted September 6, 2016 Posted September 6, 2016 Hi Gatsu, This is the site I use when I need really small magnets: http://www.kjmagnetics.com/products.asp?cat=1 You can check out WMCheng's build up on the Bandai VF-25F on using magnets to hold parts together: http://www.macrossworld.com/mwf/index.php?showtopic=691 Quote
Gatsu Posted September 6, 2016 Author Posted September 6, 2016 (edited) Wow, thank you that site looks great! WMCheng's works are gorgeous, is here a way to find the pics of all his works??? Has he put them in a thread or something? I mean the finished job not the step by step. P.S. Do you know who can i ask to know what kind of magnet dimension and shape should i use for a specific fix of that kit? Somebody who knows the Bandai vf-1 kit... Edited September 6, 2016 by Gatsu Quote
NZEOD Posted September 7, 2016 Posted September 7, 2016 (edited) look to the N rating for the strength, higher the N number the stronger the magnet will be. I use N45 5mm x 3mm magnets to hold my Hasegawas onto their display cases slightly inverted. 3 on Perspex sticks to match with 3 hidden inside the model is enough. For weapons and things I use TINY little 2mm ones rated at N50 Word of warning. Keep them MILES away from any kids as to swallow a couple at this strength is to invite disaster, pain and death within the intestinal tract. Treat them as lethal until they are mounted into place. Edited September 7, 2016 by NZEOD Quote
Gatsu Posted September 7, 2016 Author Posted September 7, 2016 look to the N rating for the strength, higher the N number the stronger the magnet will be. I use N45 5mm x 3mm magnets to hold my Hasegawas onto their display cases slightly inverted. 3 on Perspex sticks to match with 3 hidden inside the model is enough. For weapons and things I use TINY little 2mm ones rated at N50 Word of warning. Keep them MILES away from any kids as to swallow a couple at this strength is to invite disaster, pain and death within the intestinal tract. Treat them as lethal until they are mounted into place. Yes, i undertsand, i have a cat, anyway... i ll be very cautious. The magnets should not be too strong to be difficult to be separated... i should use them to replace those tiny pegs that block the legs in fighter mode... which are about a parallelepipedon of 1 mm thick and 2 mm large.... i d like to simply inserta magnet inside the holes in the legs and attach in some way the other magnet in the dorsal piece... i d like to post a pic but as usual there is not a function to post an image from my pc here. If i click on "image" it askes me an URL!! Quote
Mintox Posted September 7, 2016 Posted September 7, 2016 Yep as mentioned the 1x2mm are really a great way of securing panels etc on kits. Quote
mechaninac Posted September 7, 2016 Posted September 7, 2016 ... i d like to post a pic but as usual there is not a function to post an image from my pc here. If i click on "image" it askes me an URL!! When you click on the [Reply to this topic] window you're presented with some basic posting functionality, but if you hit the [More Reply Options] button to the right of [Reply], you'll be given a few more options including the ability to attach files; just scroll down until you see the [browse...] button under the Attach Files heading: Click on [browse...], select your picture file off your HD, Click [Attach This File], Click Add to Post to have it show up directly on the post instead of as an attachment, Click [Preview Post] to get I preview ( all the way on top) of how the post will look, make any adjustments you may deem necessary., Click [Add Reply]. That's how I included the dancing banana animated gif, and it will work with most picture formats too. Quote
MechTech Posted September 10, 2016 Posted September 10, 2016 Peanut butter with a baseball bat...! Yeah, K&J is great. I got their smallest one to put ordinance on a 1/350 model. There would be no other way to make them removable than to glue them without sacrificing detail. - MT Quote
Gatsu Posted September 30, 2016 Author Posted September 30, 2016 i do not understand their unit of mesurement: what's this " they use in fractions?? Is it a "inch"? How much would it be in "mm"?? Quote
NZEOD Posted September 30, 2016 Posted September 30, 2016 Google the conversion and you'll find a calc you can enter the inch figure in to get mm 1/8in is about 3mm Quote
Gatsu Posted September 30, 2016 Author Posted September 30, 2016 (edited) Does anybody know why their shipping fees are so fool?? They asked 17,5$ for italy for 1,5 $ of very tiny magnets that weight nothing. And with UPS they asked 117$!!! Edited September 30, 2016 by Gatsu Quote
Gatsu Posted September 30, 2016 Author Posted September 30, 2016 Yep as mentioned the 1x2mm are really a great way of securing panels etc on kits. Mintox, can you say me what are the 2x1mm magnets? I m not able to find them look to the N rating for the strength, higher the N number the stronger the magnet will be. I use N45 5mm x 3mm magnets to hold my Hasegawas onto their display cases slightly inverted. 3 on Perspex sticks to match with 3 hidden inside the model is enough. For weapons and things I use TINY little 2mm ones rated at N50 Word of warning. Keep them MILES away from any kids as to swallow a couple at this strength is to invite disaster, pain and death within the intestinal tract. Treat them as lethal until they are mounted into place. Nzeod i m not able to find 2mm magnets at N50, they have only n42 and N52 and there are not that small as you say in N52 Quote
NZEOD Posted September 30, 2016 Posted September 30, 2016 (edited) no idea how you fail to find stuff with google search but this took me 1min 30secs to track down... http://www.ebay.com/itm/2mm-x-1mm-Tiny-Neodymium-Disc-Magnets-N50-New-Super-Strong-100-or-200-pcs-/201549388904?var=&hash=item2eed479c68:m:m-p8IcDFXkc6zuOwEgs8ZlQ 2mm x 1mm n50, 100 pack Edited September 30, 2016 by NZEOD Quote
Gatsu Posted October 3, 2016 Author Posted October 3, 2016 no idea how you fail to find stuff with google search but this took me 1min 30secs to track down... http://www.ebay.com/itm/2mm-x-1mm-Tiny-Neodymium-Disc-Magnets-N50-New-Super-Strong-100-or-200-pcs-/201549388904?var=&hash=item2eed479c68:m:m-p8IcDFXkc6zuOwEgs8ZlQ 2mm x 1mm n50, 100 pack Have you ever spoke about e-bay? No, the subject of discussion was that K&J shop. Quote
NZEOD Posted October 3, 2016 Posted October 3, 2016 (edited) Just jump on ebay or alibaba or what ever the Chinese one is. You'll find most things there. No idea what the K&J shop is, never used it. Edited October 3, 2016 by NZEOD Quote
Gatsu Posted October 4, 2016 Author Posted October 4, 2016 i was referring to that shop people suggested here... Quote
NZEOD Posted October 4, 2016 Posted October 4, 2016 For you and I outside of the States eBay and Amazon are just as easy. That 1mm x 2mm pack I suggested is super cheap and would last you for a few models. I'm going to be testing the bigger ones to their max by trying to mount one of the ES-11D Cats Eyes upside down in one of my Wall Display cases! That should be nerve racking fun!! Close to 1Kg held upside down be 3 magnetic points only....what could go wrong! Quote
Gatsu Posted October 5, 2016 Author Posted October 5, 2016 For you and I outside of the States eBay and Amazon are just as easy. That 1mm x 2mm pack I suggested is super cheap and would last you for a few models. I'm going to be testing the bigger ones to their max by trying to mount one of the ES-11D Cats Eyes upside down in one of my Wall Display cases! That should be nerve racking fun!! Close to 1Kg held upside down be 3 magnetic points only....what could go wrong! But i need blocks of 4mm x 3mm x1mm and 3x2x1 not round one... i m still looking around. Quote
NZEOD Posted October 5, 2016 Posted October 5, 2016 (edited) Gees I'm good to you... Your 4mm x 3mm x 1mm N52 (strongest grade) blocks: http://www.ebay.com/itm/Tiny-magnets-4x3x1-mm-N52-grade-neodymium-block-small-craft-4mm-x-3mm-x-1mm-/162074206481?var=&hash=item25bc602111:m:mAWOSdazRPio9ORlB9DMZzA Your 3mm x 2mm x 1mm N52 (strongest grade) blocks: http://www.ebay.com/itm/50-Tiny-Magnets-3x2x1-mm-N52-Neodymium-Blocks-small-strong-rare-earth-neo-/162219935139?hash=item25c50fc5a3:g:W3MAAOSwYshUaOTt International shipper based in the UK so not too far from you and WAAAAYYYY cheaper than K&Js. Easy as. Edited October 5, 2016 by NZEOD Quote
Gatsu Posted October 6, 2016 Author Posted October 6, 2016 (edited) Thank you but they don t ship to italy for some reason... that s why i wasn't able to find it by myself with ebay italia... How have you done the reasearch? What words have you used? Edited October 6, 2016 by Gatsu Quote
Gatsu Posted October 14, 2016 Author Posted October 14, 2016 Found in an italian web shop!! Thanks everybody Quote

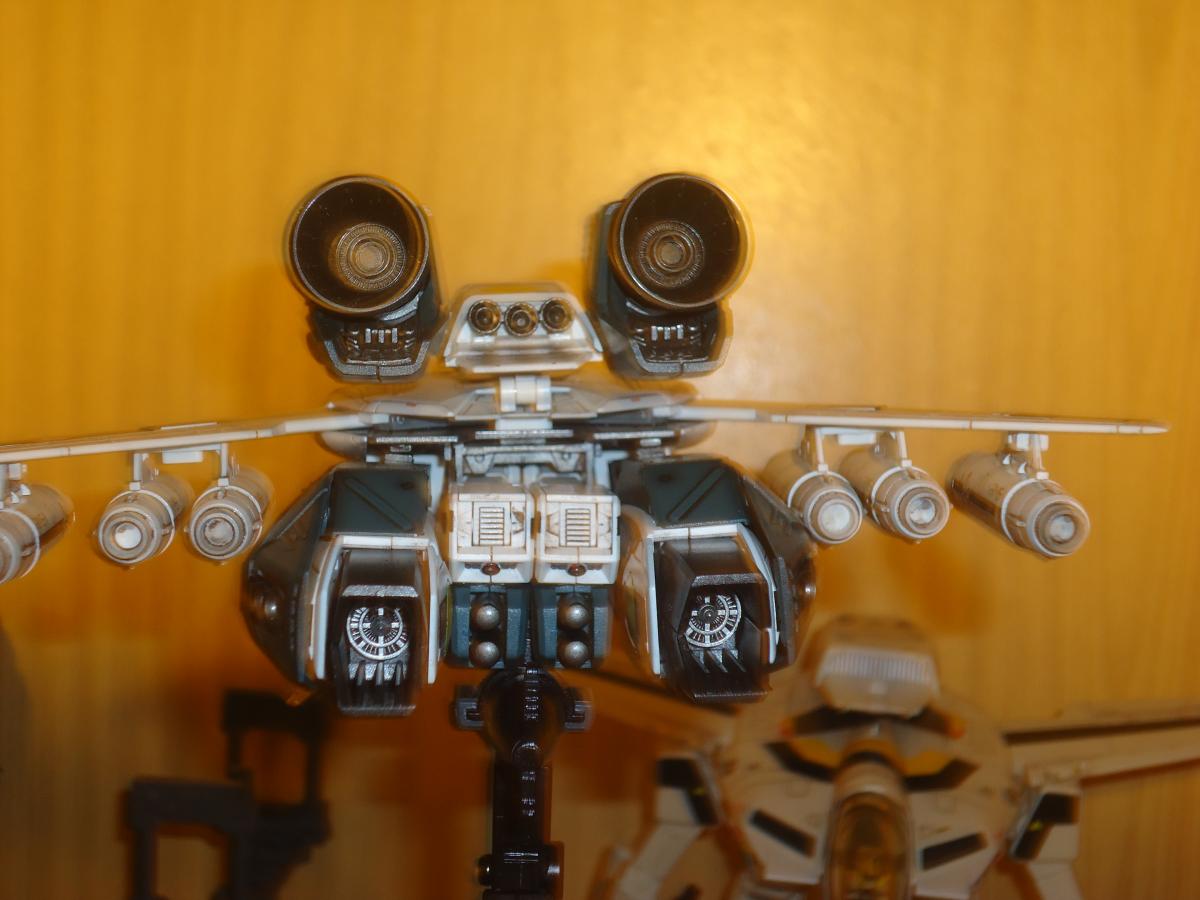

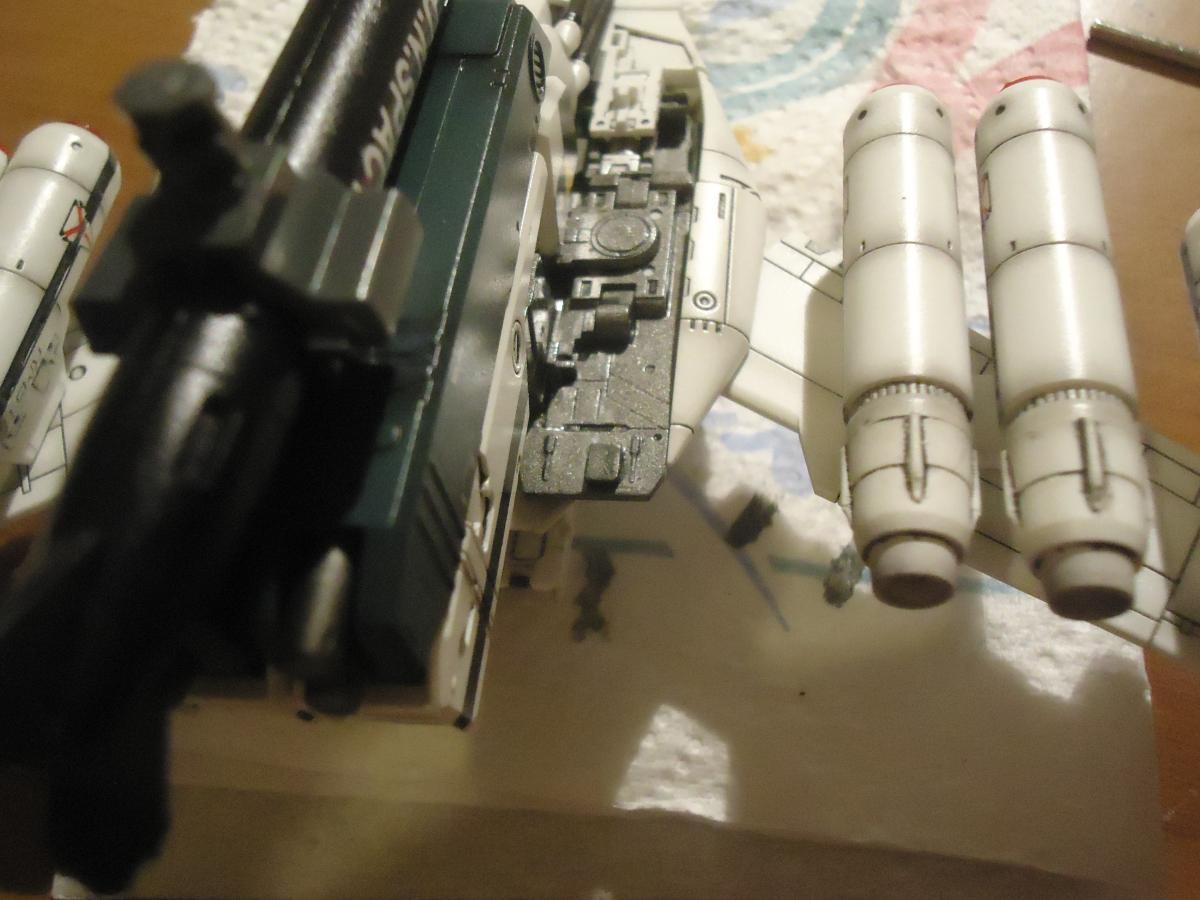

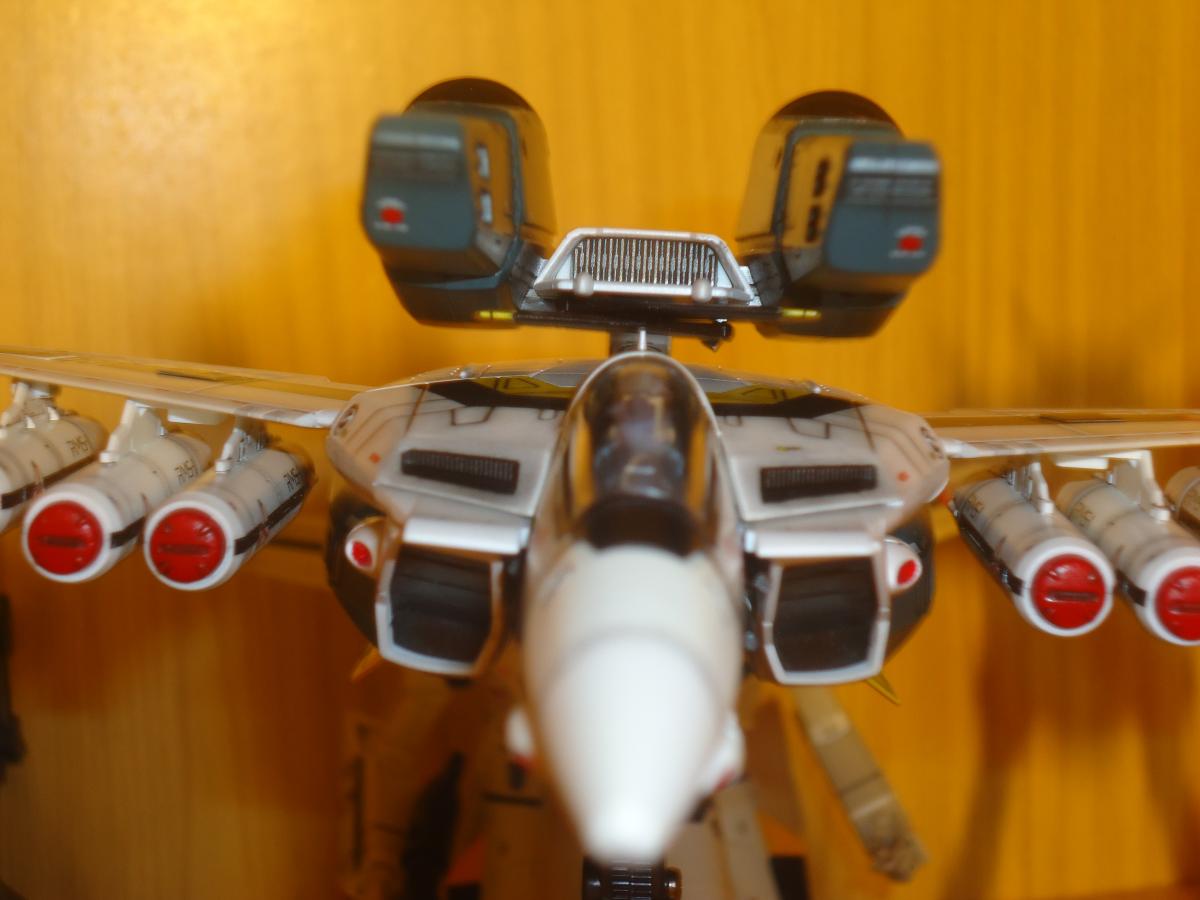

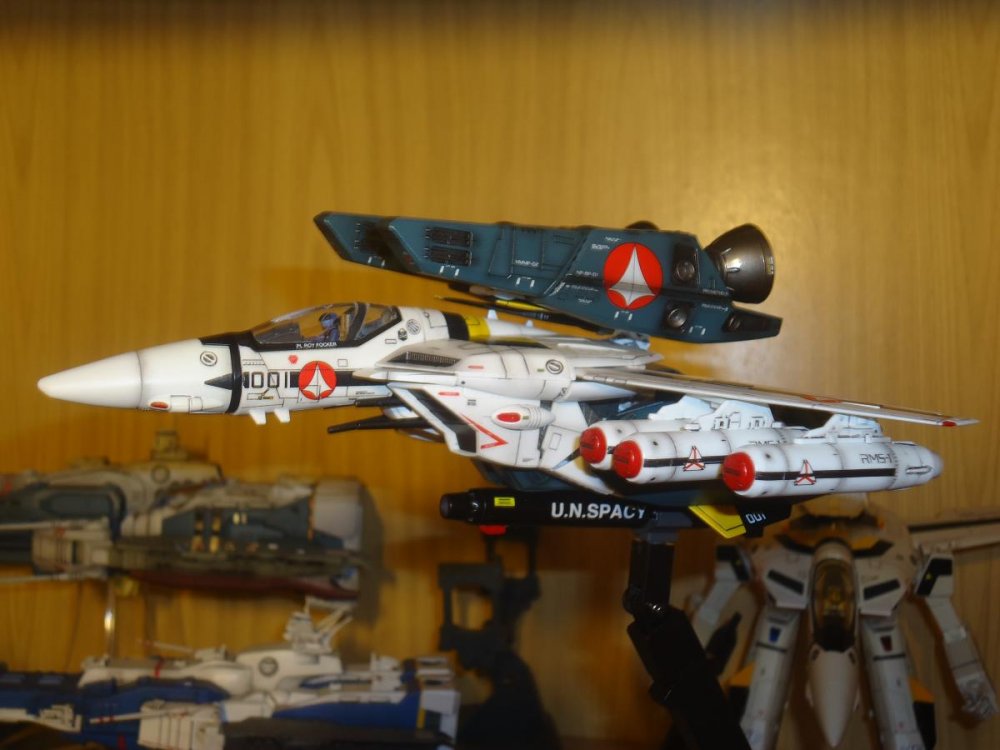

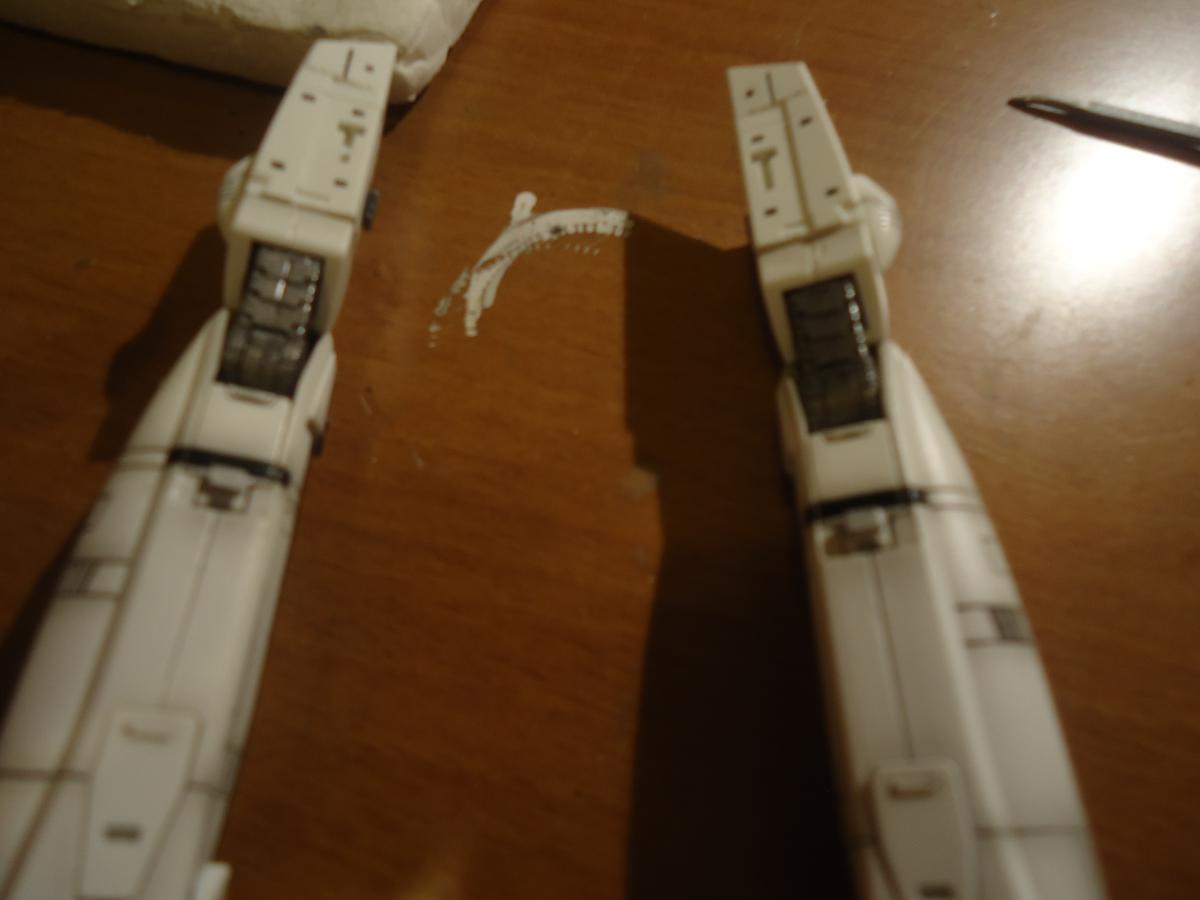

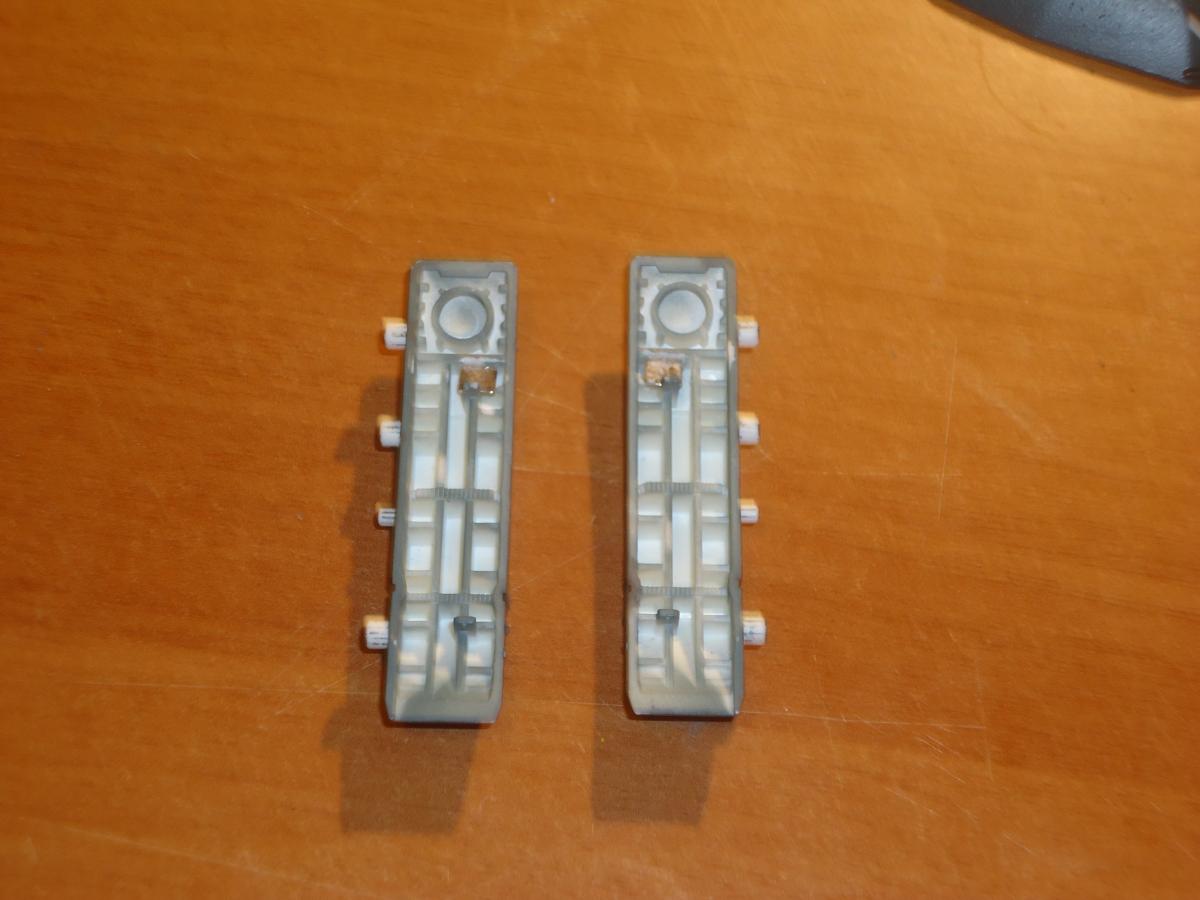

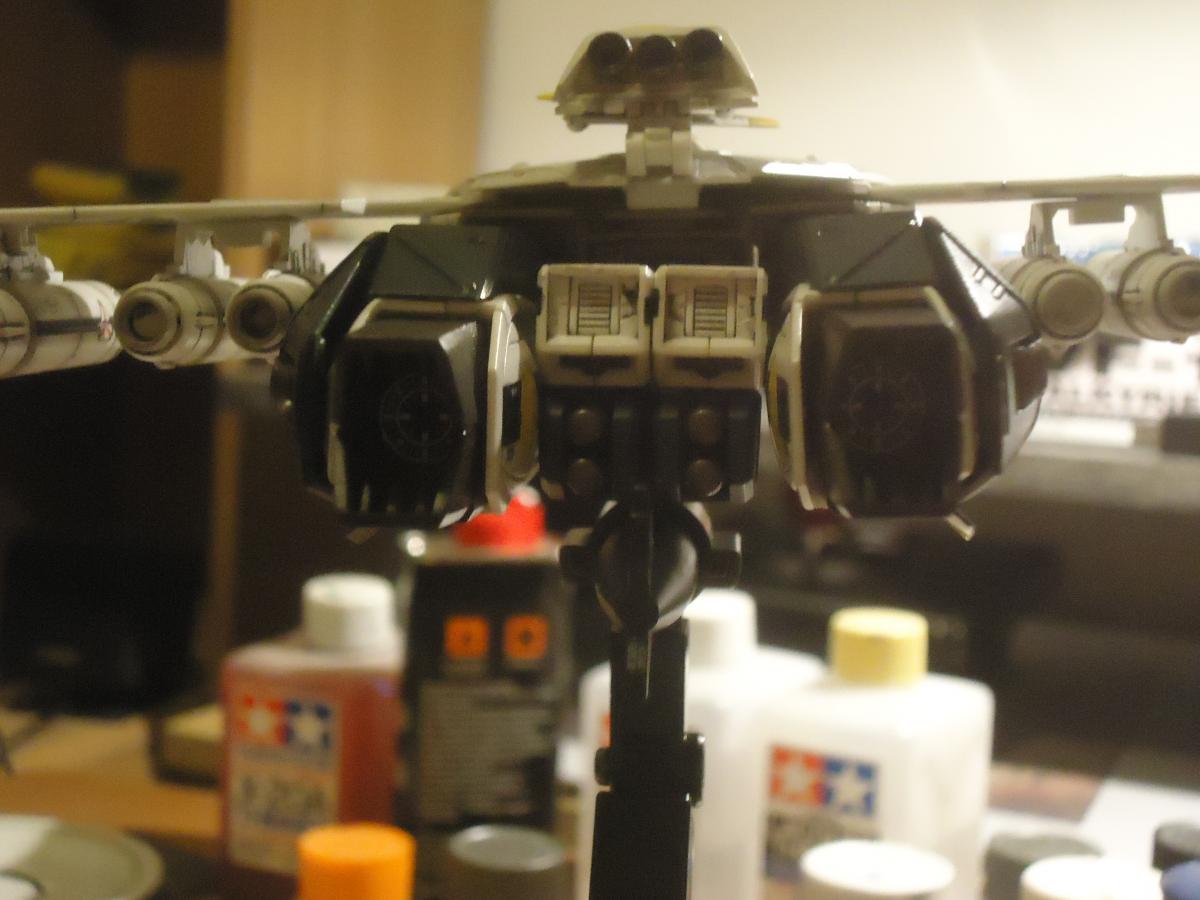

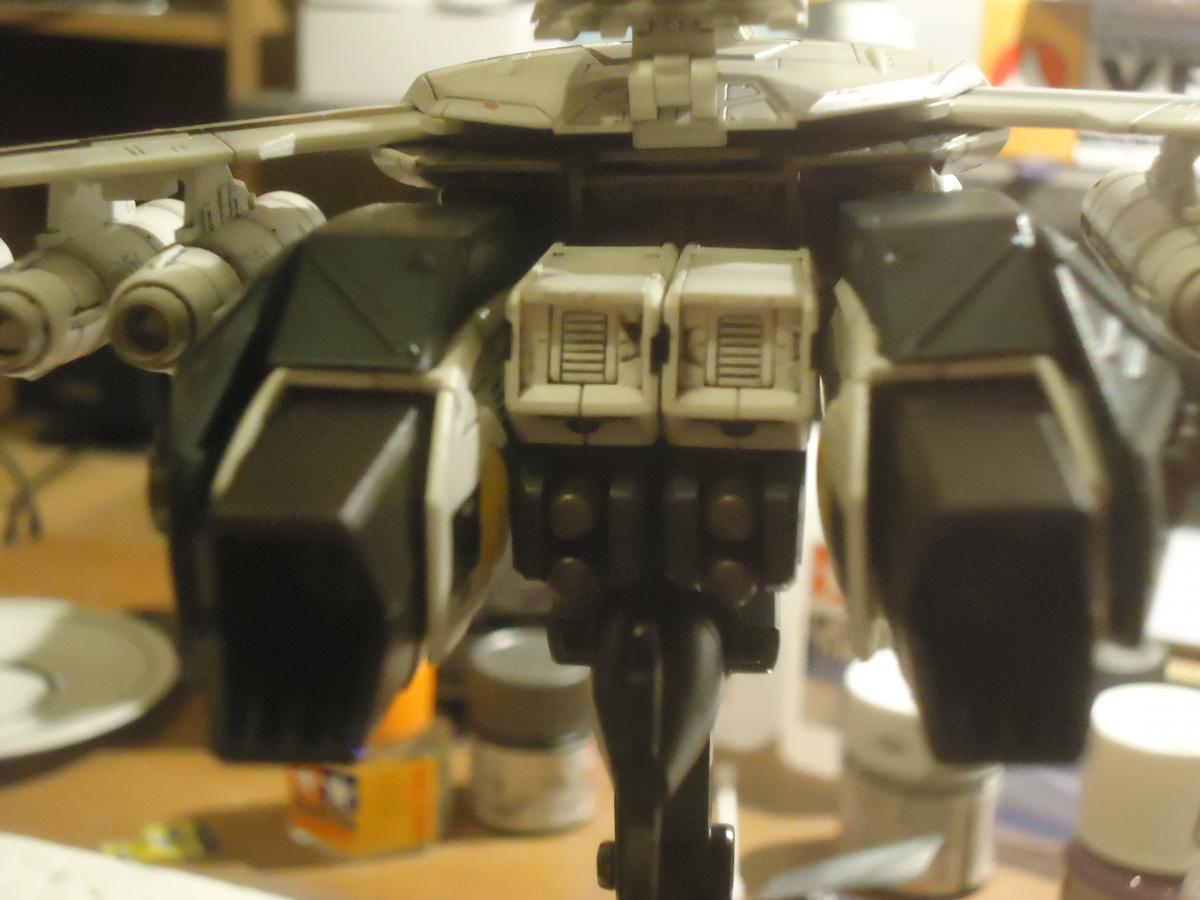

Gatsu Posted October 16, 2016 Author Posted October 16, 2016 Fixed canopy and the small magnets modification. I used 2 different magnets size 3mmx2mmx1mm and 4mmx3mmx1mm. It was an easy fix, i just glued with super glue the magnets to the legs and armour, then i dug some space on the legs armor parts for 4x3 magnets to connect to the legs 3x2 magnets. Quote
MechTech Posted October 19, 2016 Posted October 19, 2016 That came out great! NZEOD is a nice guy! -MT Quote
NZEOD Posted October 19, 2016 Posted October 19, 2016 NZEOD is a nice guy! -MT yeah... no. no I'm not Quote
