November 15 2013

Captain's log, Friday!!

The first update of the Mo-Suu-Pii-Dah Inbitoh begins now. In my usual fashion, I have elected to catalog the building process as closely as I can without getting putty on my camera lens… Which almost happened a couple of times …

I feel that I need to preface this first update by saying that of all the Anime mecha subjects I've tackled, this one is perhaps the most inconsistent in terms of line art. To further compound matters, I don't think that the designers really gave much thought to the joints on Inbits in general: more often than not, the joints, particularly in the legs, just look like a series of blob-shapes that are somehow supposed to move and allow for articulation. Alas, have no fear, I'm an expert in the interpretation of Anime magic!

Since the line art is so variable from one view to the next, I decided to focus on the principal beauty shot for this mecha (pic 001) and simply try to harmonize all the other views with this one. With that said, the journey begins!

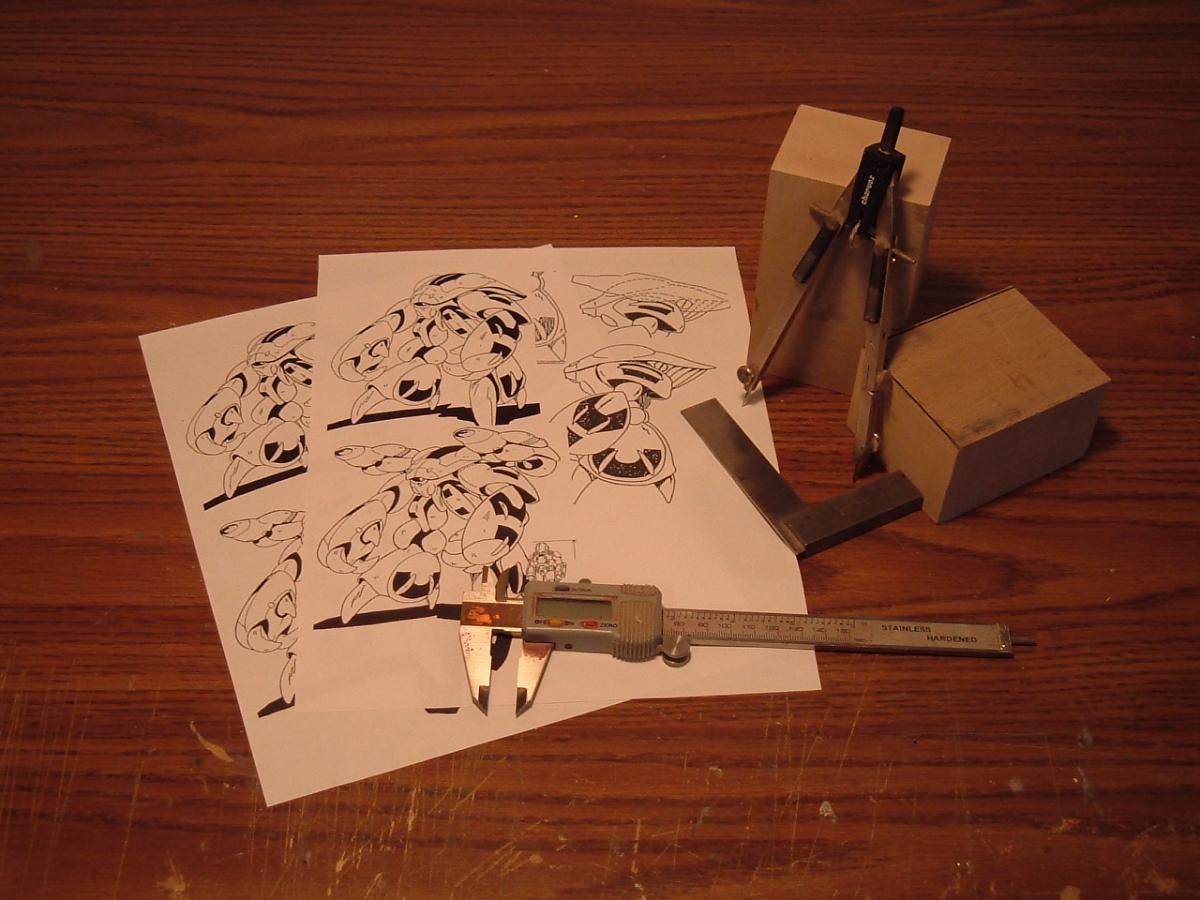

Pic 01: these are the blocks of modeling board and basic tools that I use when commencing a build. I also print-out some same-size line-art, which comes in very handy for reference.

Pic 02: I first begin by chopping my larger modeling board blocks into smaller, more manageable pieces.

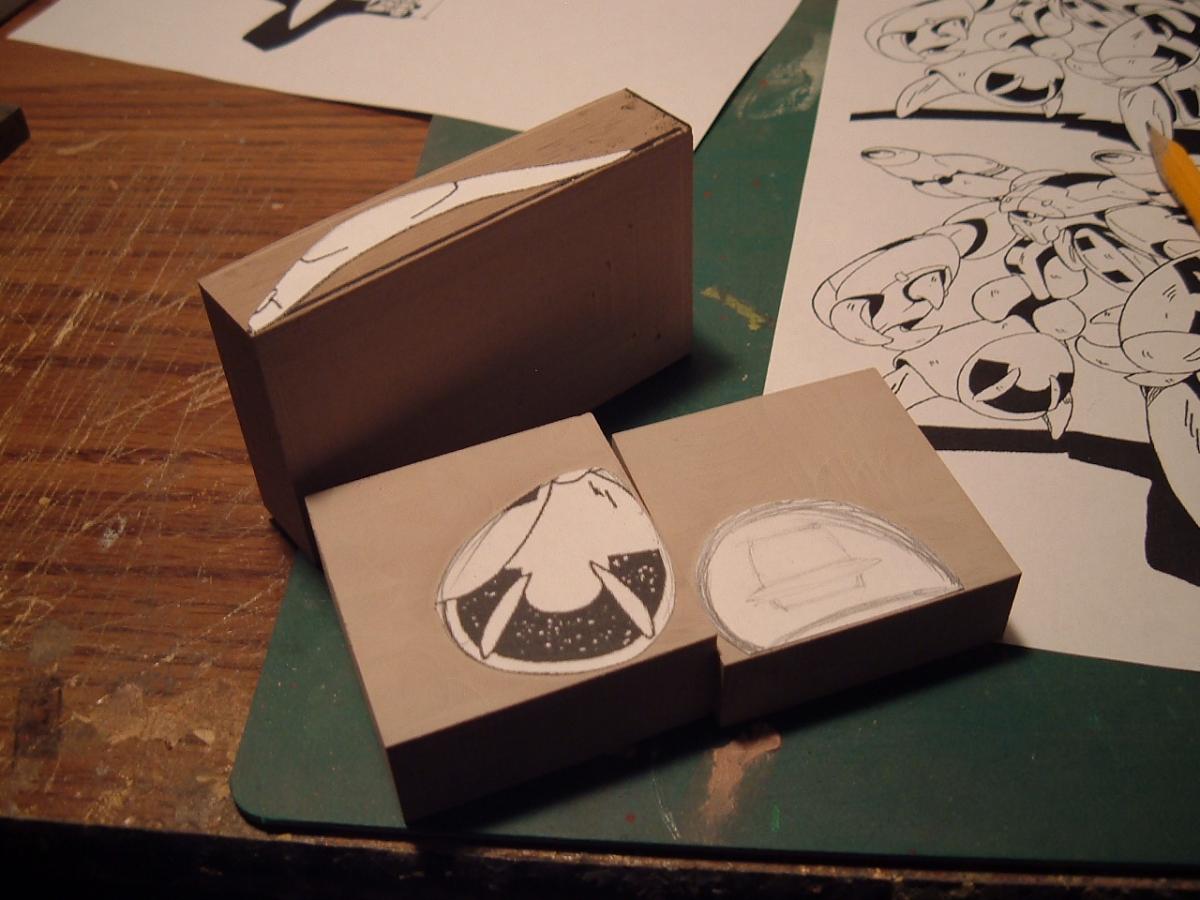

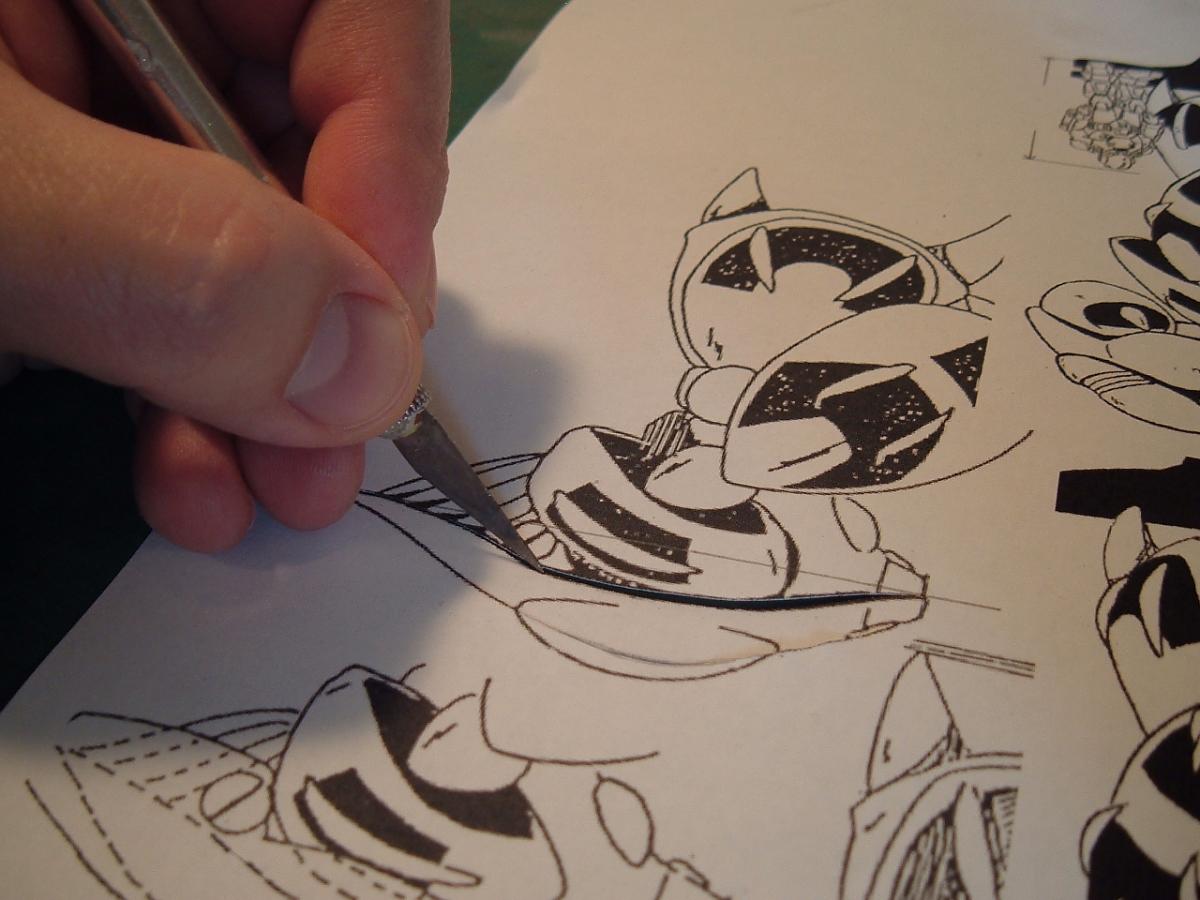

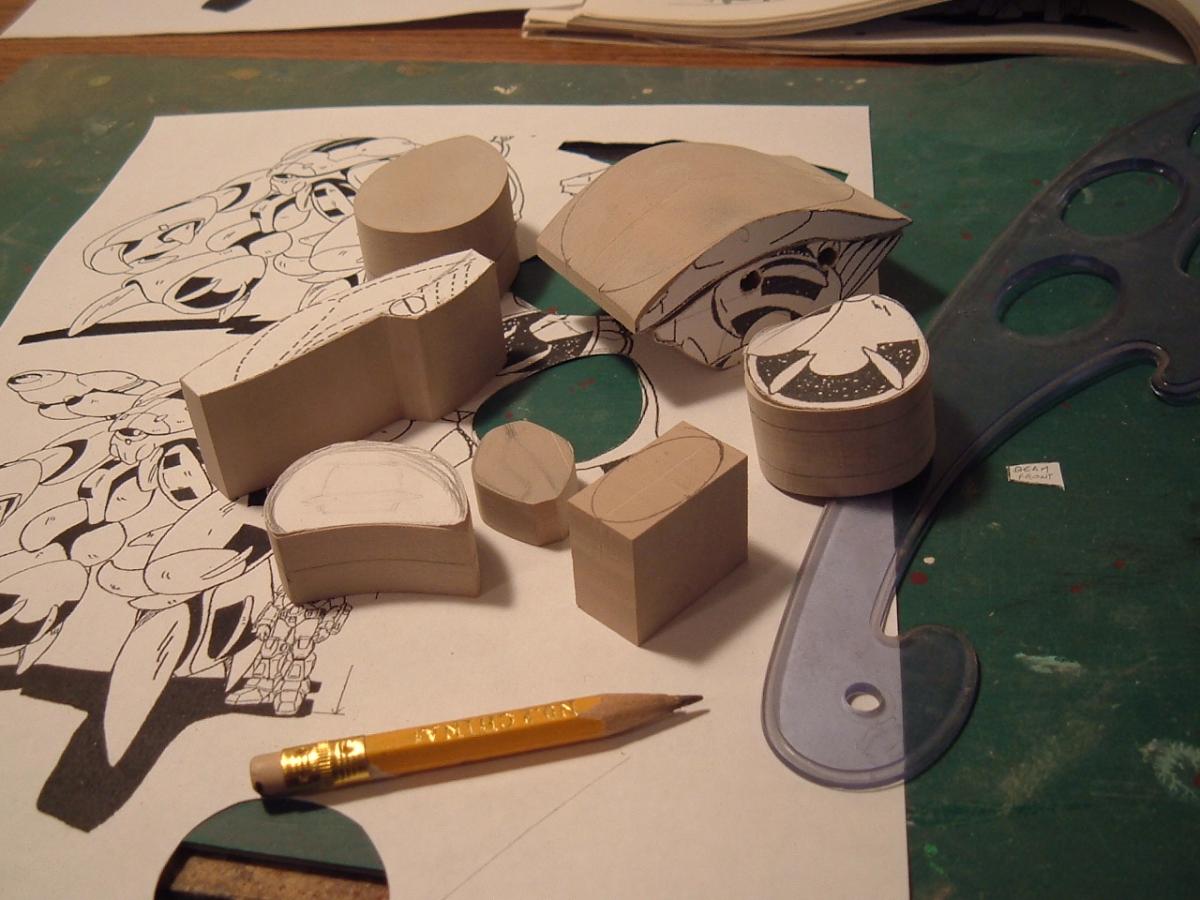

Pic 03: Next, I take my line-art and carefully cut-out certain key parts to maintain a really tight build spec.

Pic 04: since certain components appear only in perspective, I use my compass to measure and then draw certain other components if I feel I need to. For more mechanical components, I will draft on the computer, but due to the very organic nature of this subject, I have elected to render free-hand.

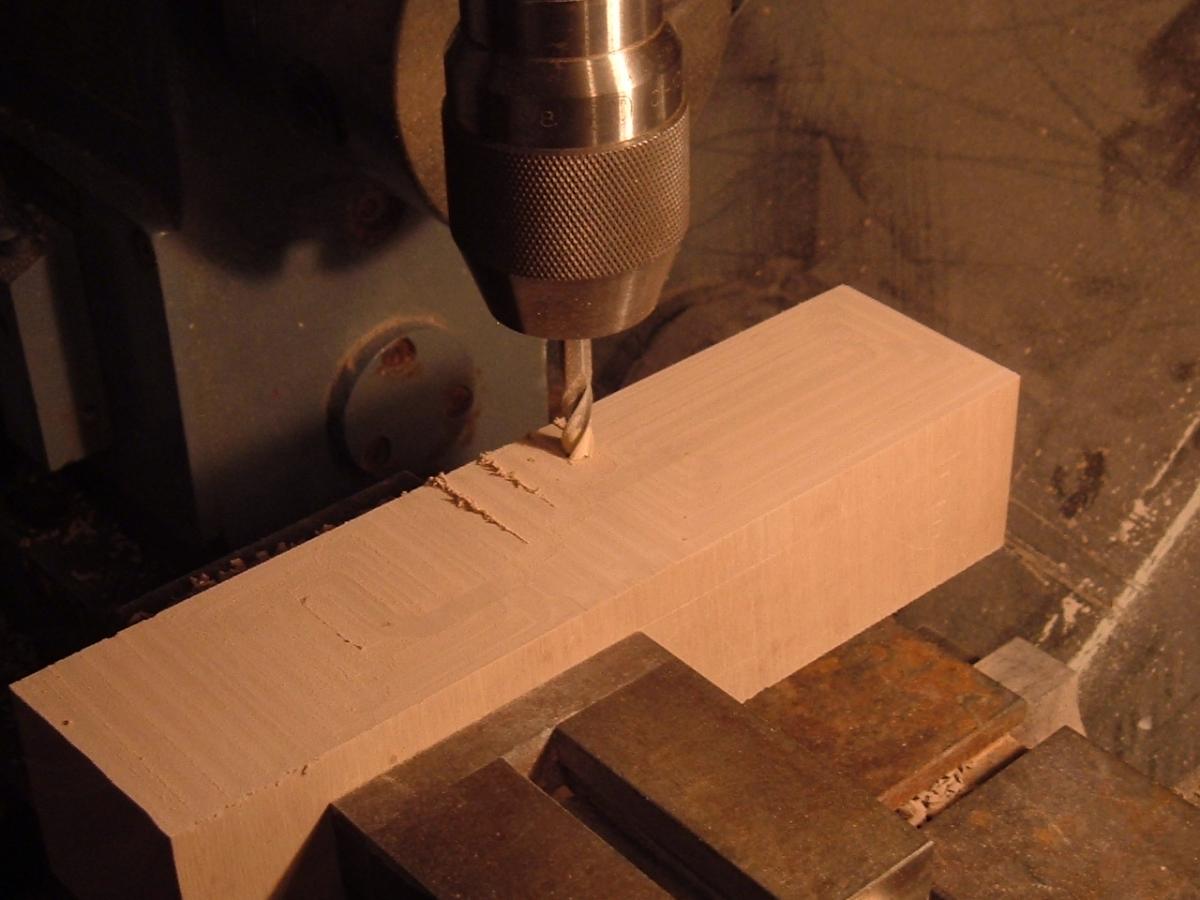

Pic 05: my smaller blocks were insufficient, so here I am prepping another block on the mill. It's important to maintain perfectly right angles: this helps make the transfer of proportions much more exact.

Pic 06: I stick my paper cut-outs directly to the modeling board to make the sculpting of parts easier.

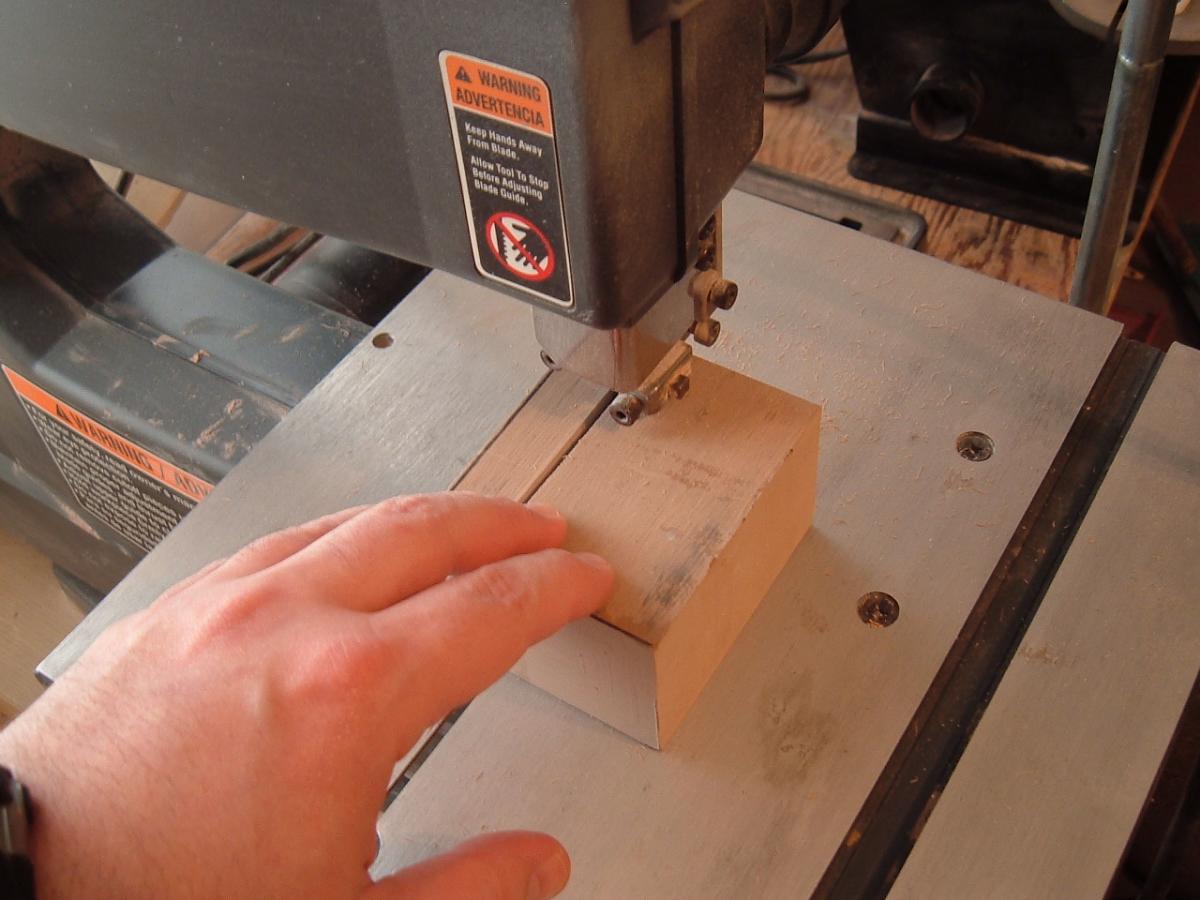

Pic 07: using the band saw, excess material is removed, but I'm mindful not to cut too close, since it's much more work to add material than to remove it.

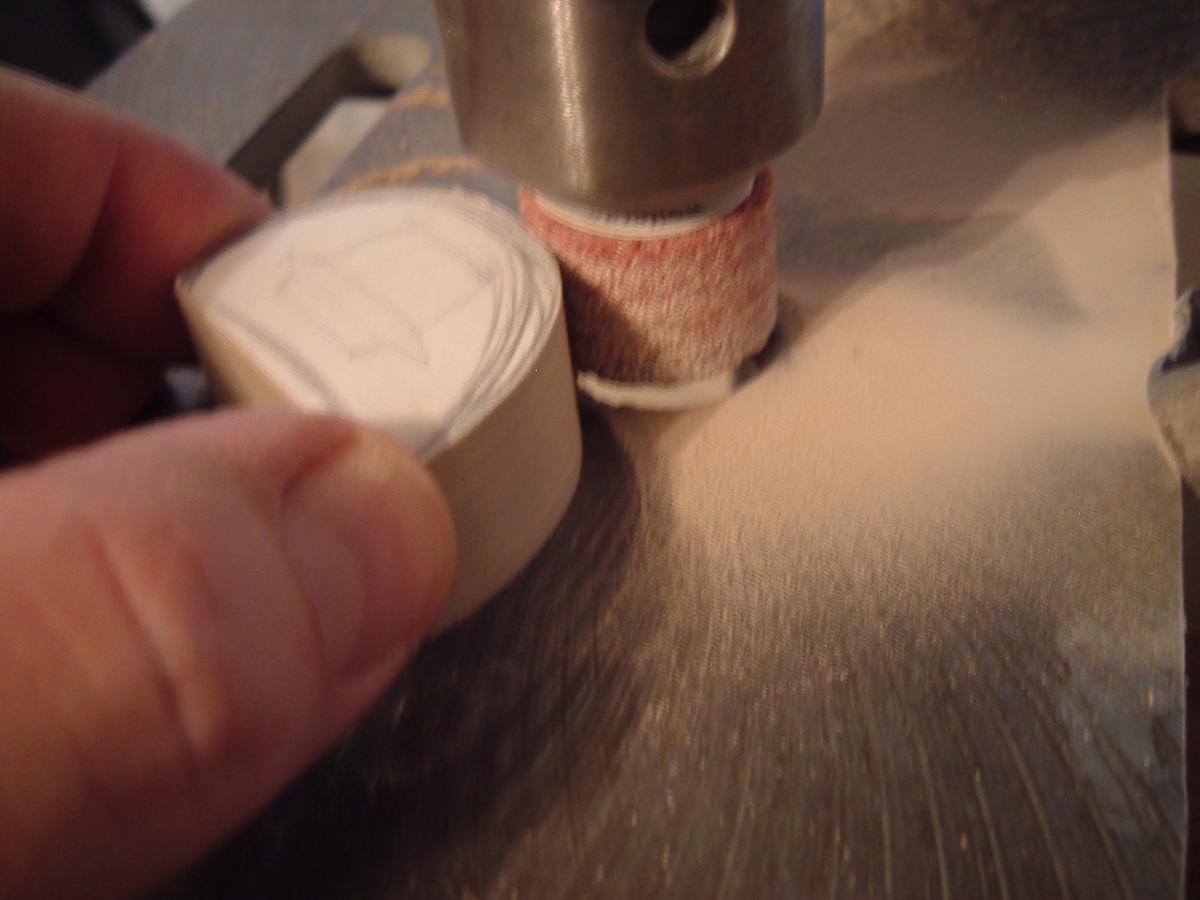

Pic 08: I use a grinding bit on a drill press to remove as much excess material as possible, all while maintaining a right angle on the part. I try to keep parts square for as long as possible, so as to make the verification of dimensions much easier.

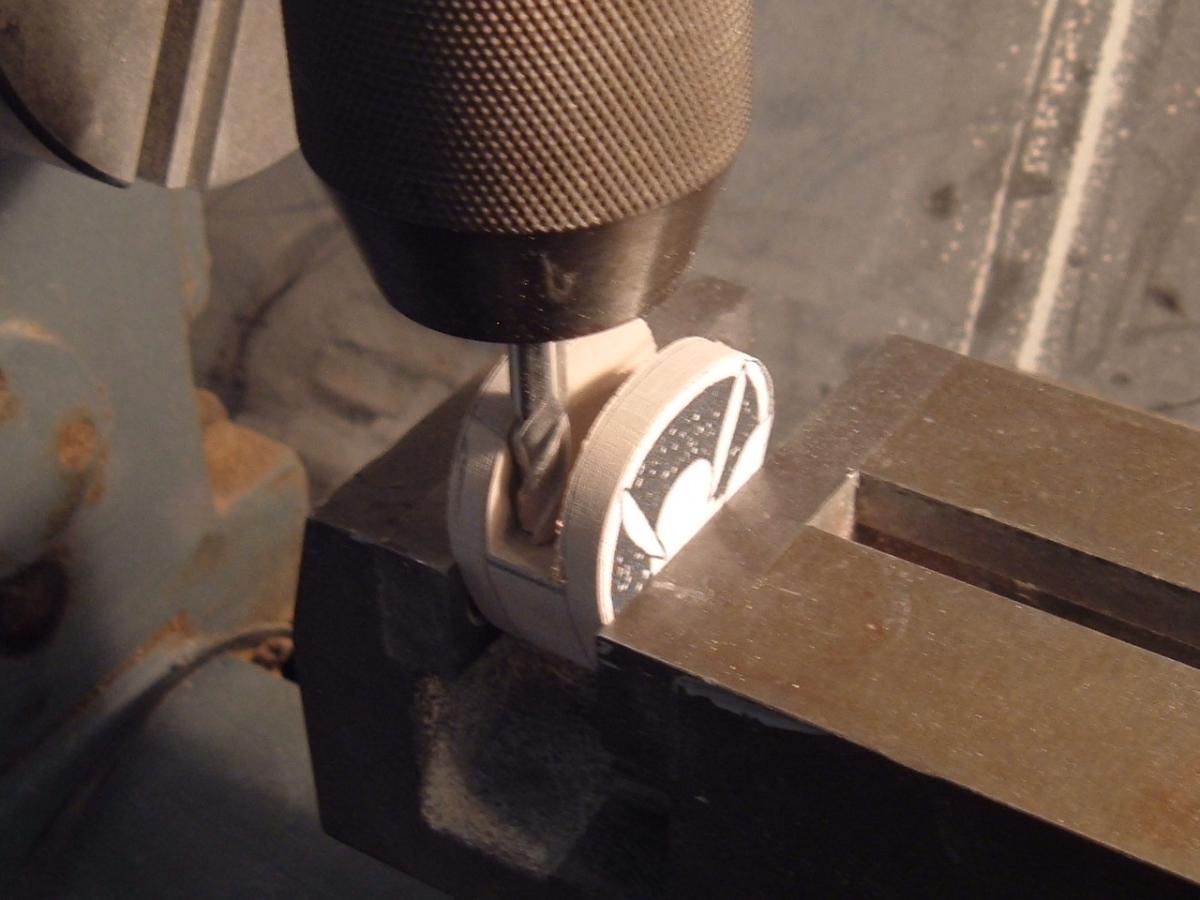

Pic 09: the upper crab armor goes under the mill. I use my machine to remove material incrementally in complex, curved areas: it becomes a kind of manual CNC job where I remove material in tiny steps forming a curve, which I can then sans smooth later.

Pic 10: the main components, still in their crude, blocky form.

Pic 11: this is the "calf" armor. I'm machining out the openings for the joints while the parts still have square angles. Makes machining much easier.

Pic 12: now comes the fun (and dusty) part: using my dremel, I now begin to carefully round-out the given shapes. This particular piece will become the forearm.

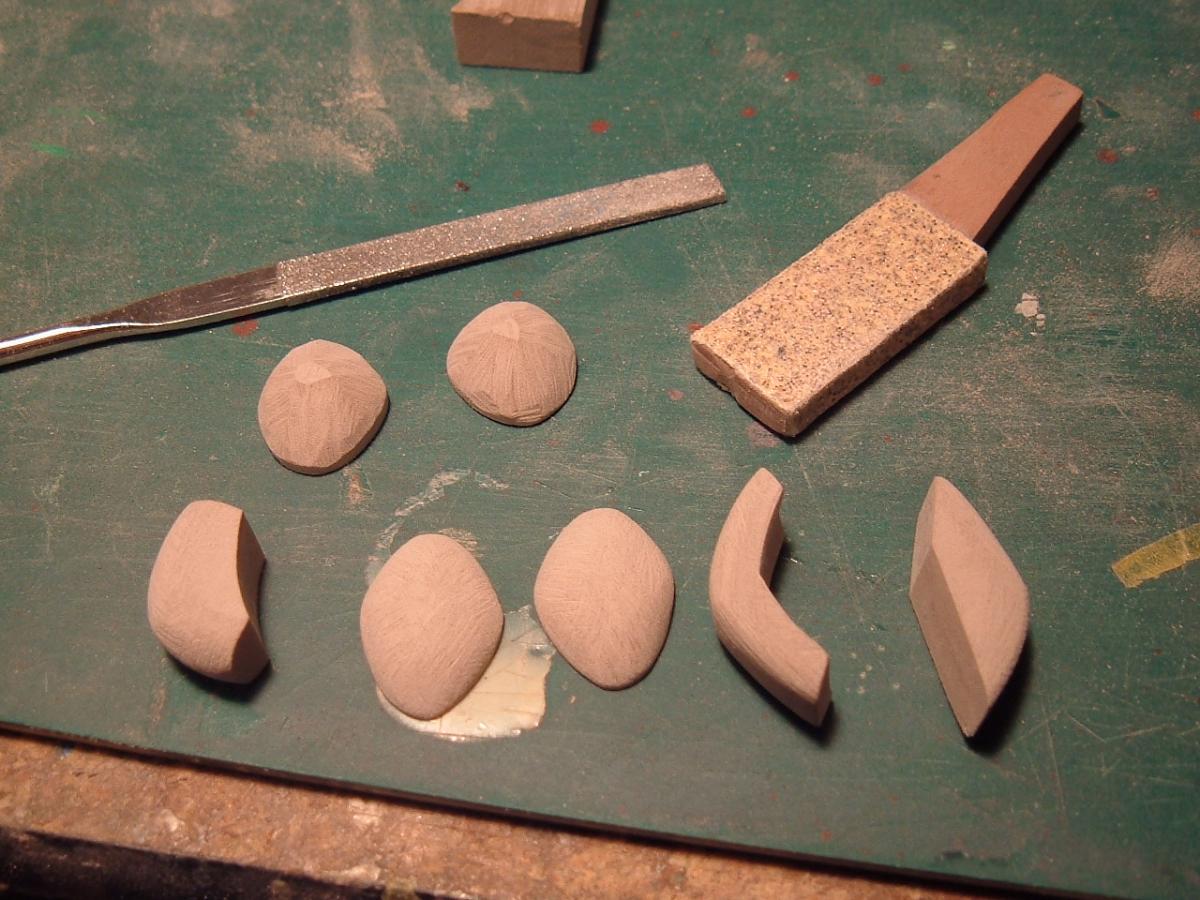

Pic 13: a cluster of very carefully-crafted "blob" joint parts. This is a particularly tedious step, as the parts have to look convincingly blobby, but still be identical left to right. A considerable amount of time and effort was expended to get them all just right, and then somehow fit together.

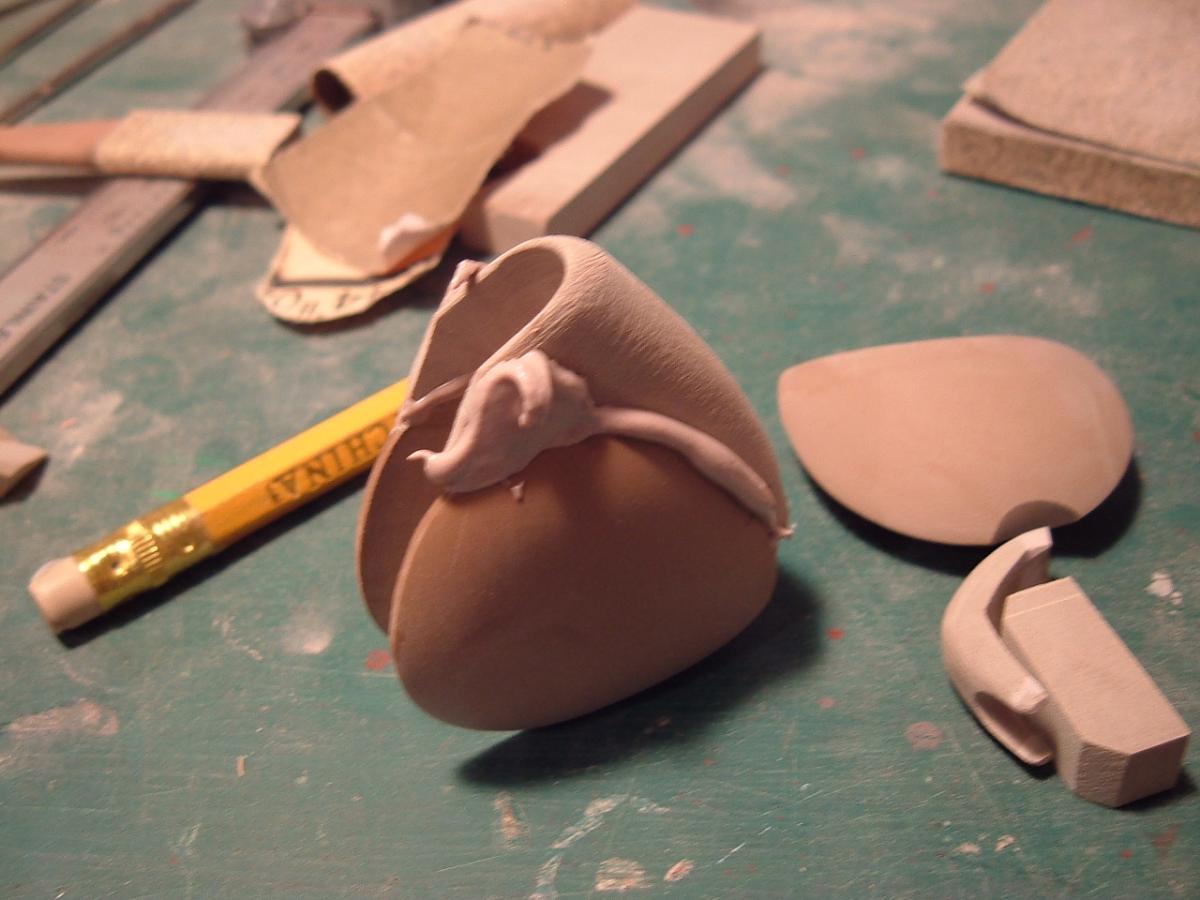

Pic 14: the lower leg calf component, now adequately rounded is used to fit the shin armor. I use a kind of "putty smash" technique to ensure that these very organic parts all fit like a glove.

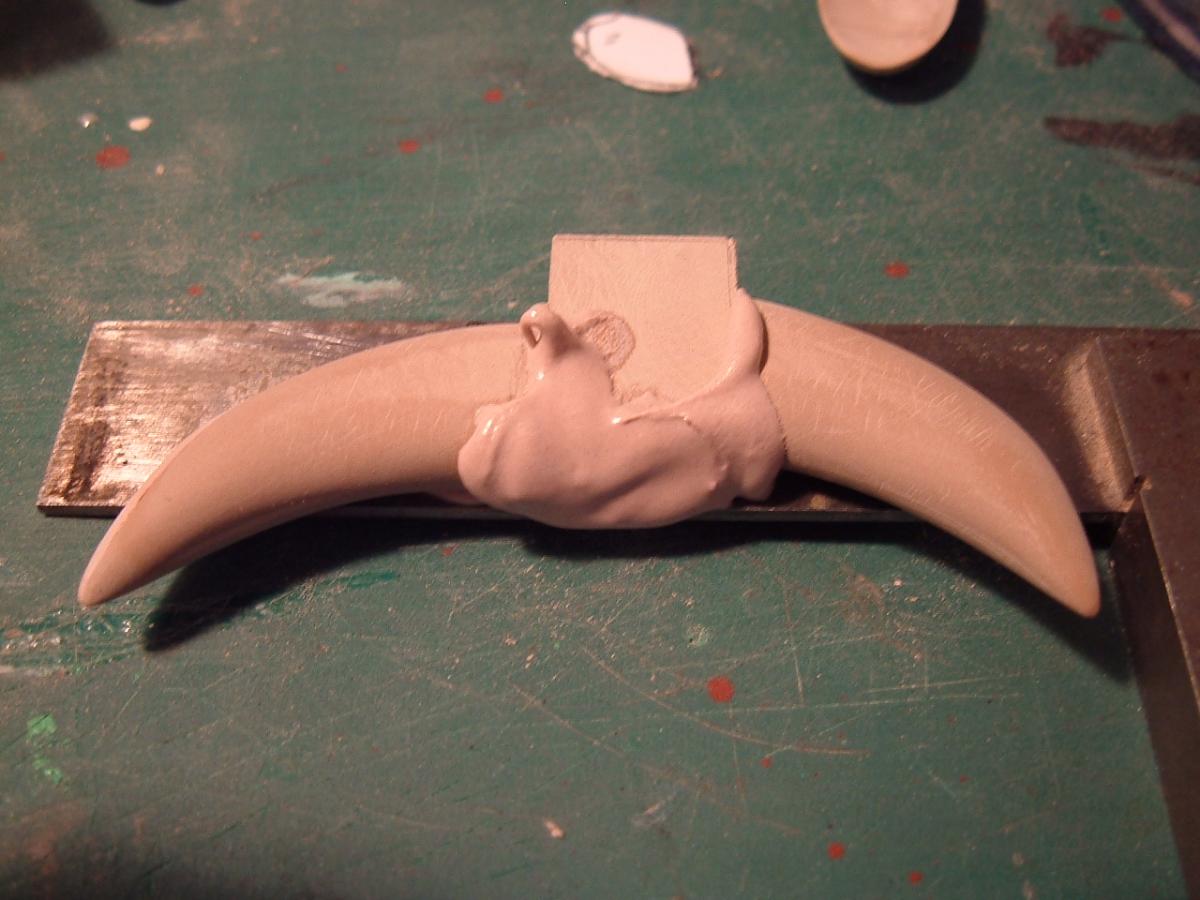

Pic 15: the toe/foot claws were too short, so here I am widening them. Don't worry about that blob of putty, it will all be cleaned up.

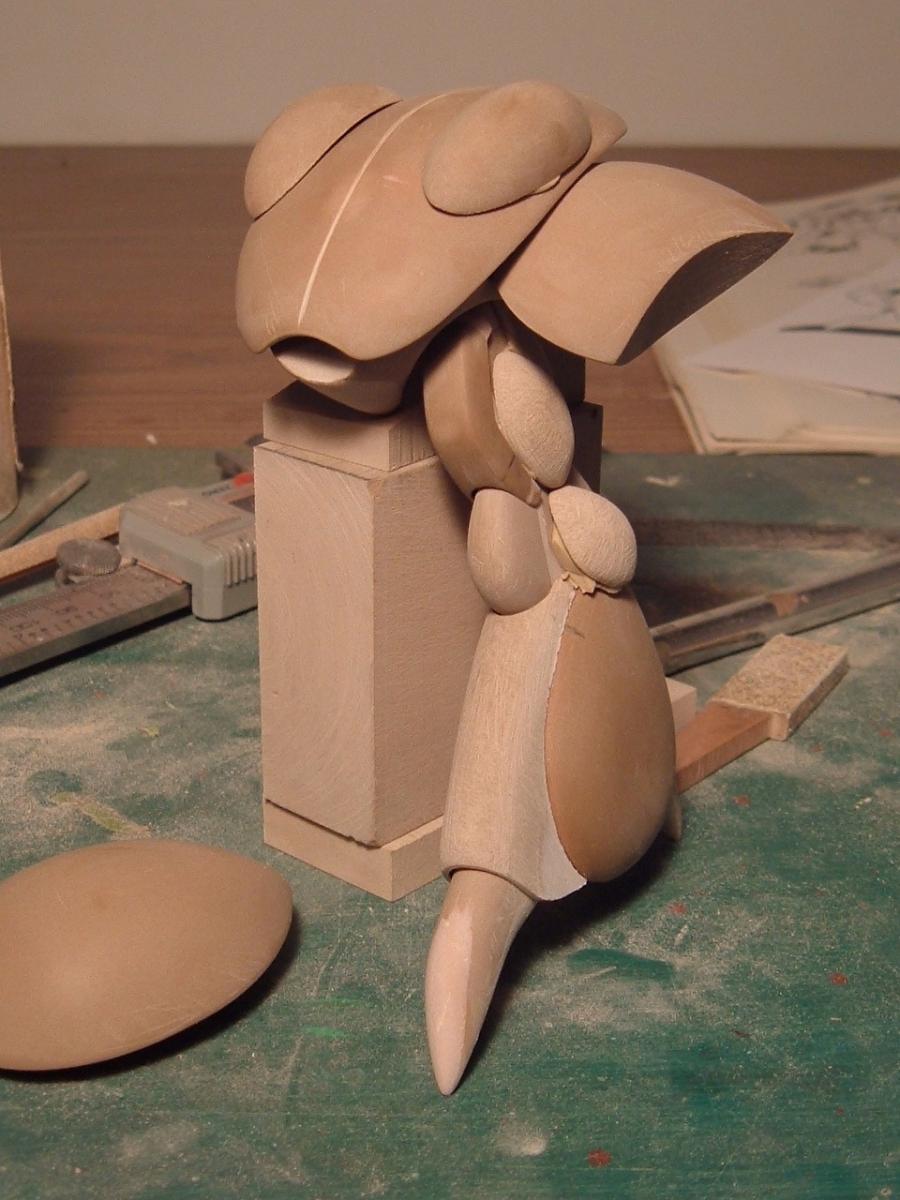

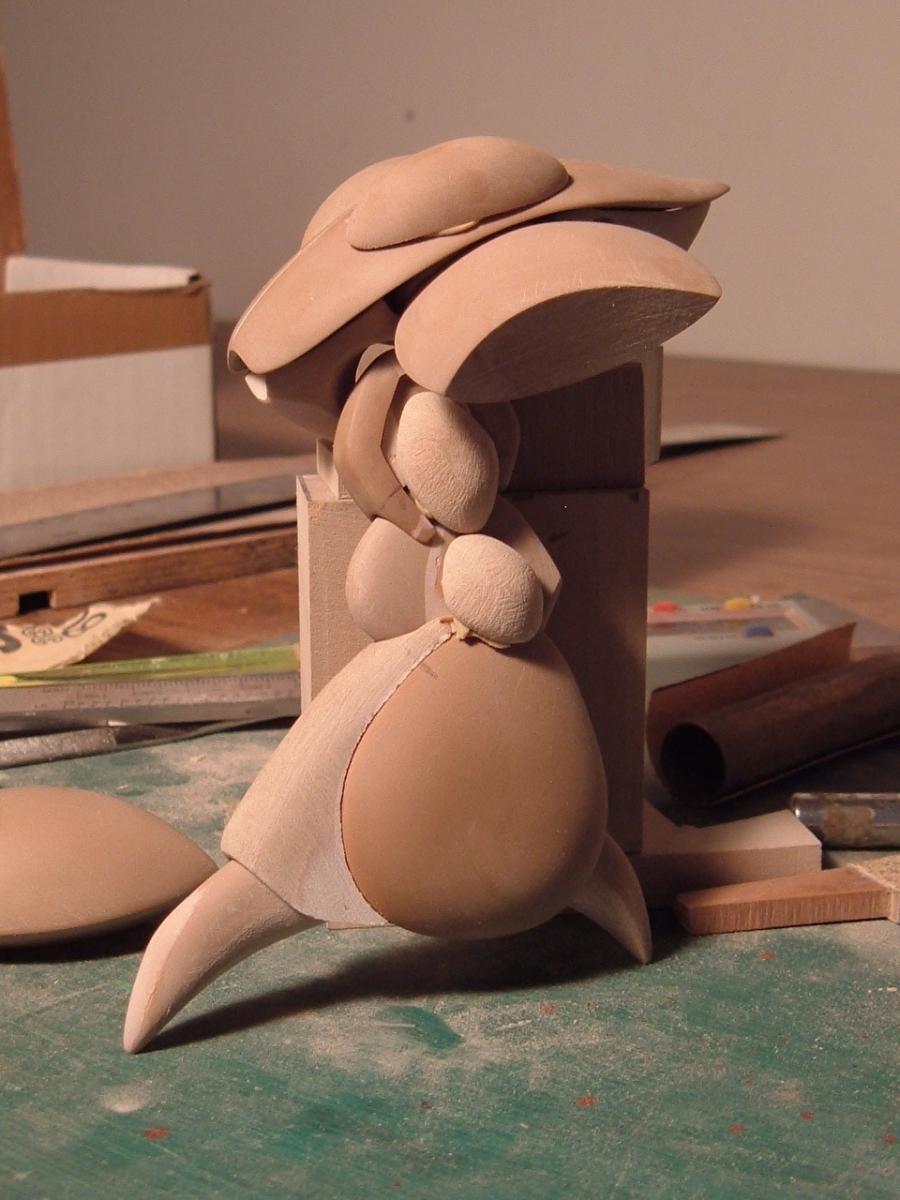

Pics 16 and 17: a very quick and crude test-fit, courtesy of some plasticine to hold the parts together. Not too shabby if I do say so myself.

That's pretty much it for this week's update. Next week comes the fun of adding all those wonderful details… And beam guns!
