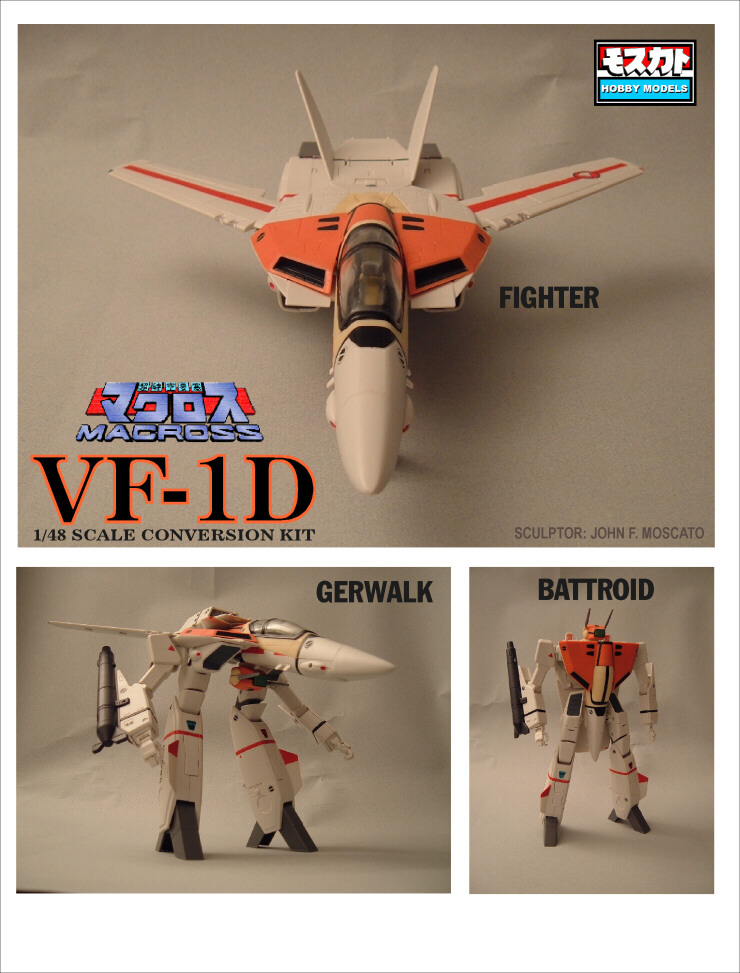

captain america Posted November 3, 2005 Author Posted November 3, 2005 This is how it looks overall. Quote
Mechamaniac Posted November 3, 2005 Posted November 3, 2005 (edited) Cap, can you give some battroid transformation instructions?. When I did my test fit (and also going by Haterist's post) it looks like the head mount plate doesn't have much to attach to in battroid. Also, what do you recommend to tighten up the head pivot (up and down) on the turret axels? Also, it may help in your instructions if you give some glue points for the fuselage halves. Did you glue along the length of the fuselage? And if so, how well does it hold up when you transform, or open the front landing gear? On the standard VF, the gap increases between the fuselage halves when you open the front gear, or when you transform. Edited November 3, 2005 by Mechamaniac Quote
promethuem5 Posted November 3, 2005 Posted November 3, 2005 Crap....I need to find the right size drill bits and some of that plastic rod.... noone around me sells that stuff. Oh...and I need a valk. Quote

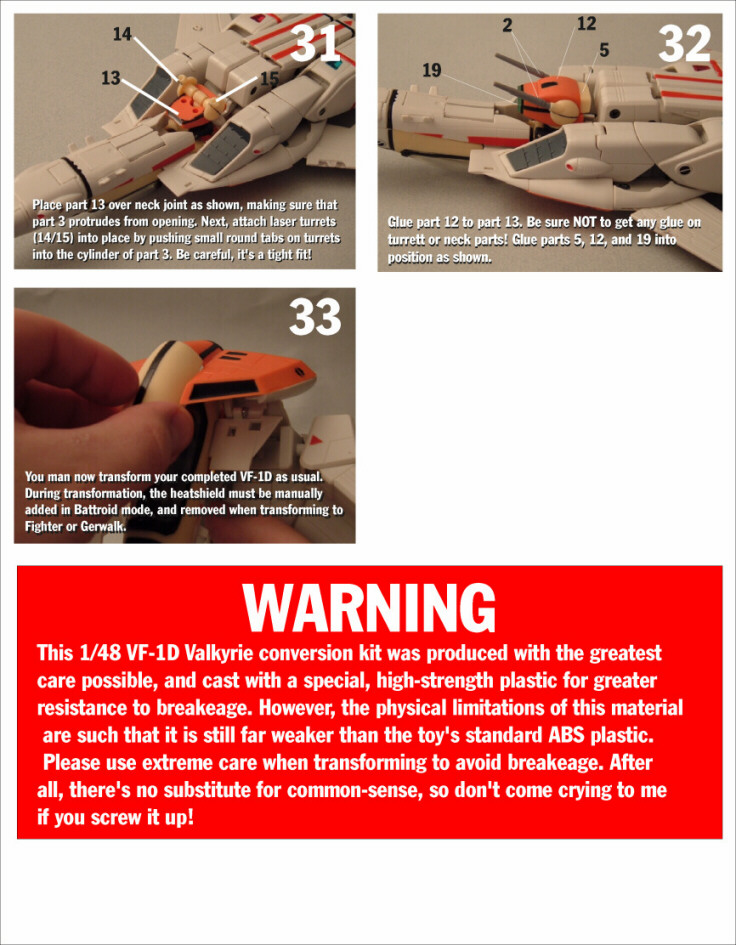

captain america Posted November 3, 2005 Author Posted November 3, 2005 (edited) Cap, can you give some battroid transformation instructions?.Yamato already provided transformation instructions with the VF-1. The sequence is literally the same. I've tried it, and there are no transformation issues/problems When I did my test fit (and also going by Haterist's post) it looks like the head mount plate doesn't have much to attach to in battroid. I don't quite understand what you mean, can you elaborate please? Also, what do you recommend to tighten up the head pivot (up and down) on the turret axels? A dab or two of CA glue at the friction points. Let cure. This will increase tension and alleviate floppiness. Also, it may help in your instructions if you give some glue points for the fuselage halves. Did you glue along the length of the fuselage? Yes. And if so, how well does it hold up when you transform, or open the front landing gear? Quite well if handled gently. Please read disclaimer On the standard VF, the gap increases between the fuselage halves when you open the front gear, or when you transform. That's cos it hasn't been glued together properly. I barely tacked both halves of mine together, and they hold fine. 341755[/snapback] Edited November 3, 2005 by captain america Quote

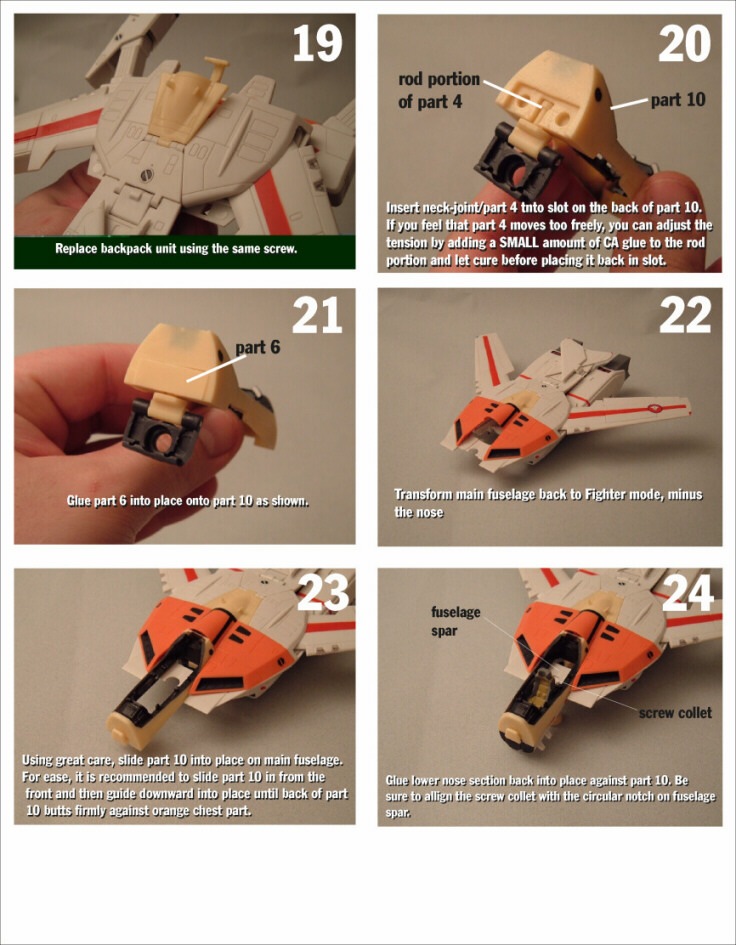

Mechamaniac Posted November 3, 2005 Posted November 3, 2005 I know the transformation sequence is the same, my question about Battroid was mainly regarding the head mount plate. On the standard VF-1, the head plate locks down in between the ends of the groove in the bottom of the fuselage (the head groove). This locks the head into place. With the D, since the upper half of the fuselage (part 10) is longer than the bottom half of the fuselage, the head mount cannot lock down between the ends of the groove in the bottom of the fuselage. So, the head sits on a side to side pivot caused by the rod portion of part 4 (see steps 20 and 21). Hope that helps. Thanks! Quote

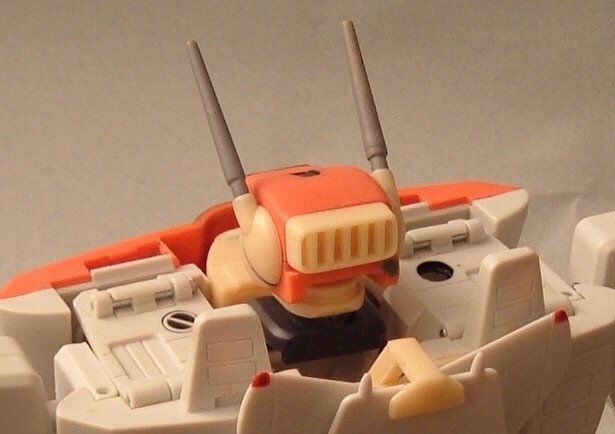

captain america Posted November 3, 2005 Author Posted November 3, 2005 (edited) True, the head has no locking mechanism in Fighter mode... Or Battroid, for that matter. The solution to this is actually rather simple, even if it's perhaps imperfect in the grand scheme of things: as mentioned in the instructions, you can (and should) use a small amount of CA glue on the neck joint parts: placing a dab on all the areas that have friction or rub against each other. When the CA glue dries, it is both hard, and slightly increases the volume of the contact area, thus increasing "tightness" and thus prevents the parts from flopping-around. As you can see in the pic below, the head litteraly "hangs" over nothingness. Without the tightness in the joints, the head would just flop backwards into the chasm below. Tightness is the key. Edited November 3, 2005 by captain america Quote
Mechamaniac Posted November 3, 2005 Posted November 3, 2005 Cool, that about covers it. Thanks Cap! Note - If you use the bracket that comes with the Fast Pack set, the head mount will sit on that. It won't lock into place, but it will at least sit and not be suspended. Quote
Godzilla Posted November 3, 2005 Posted November 3, 2005 Wow. Very detailed. Too bad I am not getting this. Quote
captain america Posted November 3, 2005 Author Posted November 3, 2005 Wow. Very detailed. Too bad I am not getting this. 341928[/snapback] You're not? Quote
Mechamaniac Posted November 3, 2005 Posted November 3, 2005 Wow. Very detailed. Too bad I am not getting this. 341928[/snapback] You're not? 341956[/snapback] Yeah, he doesn't have a spare valk to customize... Quote
Godzilla Posted November 3, 2005 Posted November 3, 2005 Wow. Very detailed. Too bad I am not getting this. 341928[/snapback] You're not? 341956[/snapback] Yeah, he doesn't have a spare valk to customize... 341963[/snapback] Actually, I am not sure about the sturdiness and the the gummy canopy and such. No insult to you Capt. You did a hell of a job and you need to be commended. It is that I need time to make it. The cooking of the canopy and sand papering requires a lot of time. (I am a perfectionist since I am not real happy with my VF-1A TV max and I want to start over. )The time needed for me to work on it is not there. I just moved and working 50 plus hours a week with a 2 hour drive round trip to go to my parent's home and not to mention I will be in China for weeks or months... Quote
captain america Posted November 3, 2005 Author Posted November 3, 2005 Hi Godzilla. Actually, the gummy canopy issue was resolved early-on into the project, so no more cooking of parts is necessary. Quote
Godzilla Posted November 4, 2005 Posted November 4, 2005 Well that is good news. Still... Maybe I need to comission Kurt or someone to do the job. Quote
Kurt Posted November 4, 2005 Posted November 4, 2005 Well that is good news. Still... Maybe I need to comission Kurt or someone to do the job. 342223[/snapback] That can be arranged. Let me know if you are interested. Capt - I am going to try and cure the canopy in the oven this weekend. I hope it works. Quote
Majestic Posted November 6, 2005 Posted November 6, 2005 Is there an online source for metric drill bits this size? I look up "metric drillbits" but get only full sets that are upwards of $20. Quote
Die, Alien Scum! Posted November 6, 2005 Posted November 6, 2005 Is there an online source for metric drill bits this size?I look up "metric drillbits" but get only full sets that are upwards of $20. 342608[/snapback] Just use English drill bits. You can get these any decent hardware store, like Ace. 2.7mm = 0.1063" = roughly #36 drill bit 1.93mm = 0.076" = roughly #48 drill bit You can get these individually for $3 to $4 each. Quote
valkyrietestpilot Posted November 6, 2005 Posted November 6, 2005 wow,nice job on the kit & instructions.you can really see that you spent alot of time with the details on this.is that andy's donor 1J in your instructions? i can't wait to see your 1D kit next time i visit andy.your custom skills make me wish i had a spare valk to convert Quote
cambodian tire Posted November 7, 2005 Posted November 7, 2005 That's totaly cool cap! been gone for awhile is this kit been released yet? I'm still interested if it's not too late! Quote
vlenhoff Posted November 7, 2005 Posted November 7, 2005 How much does the 1D convertion parts cost? and, is anyone doing this covertion? Thanks, V!C Quote
kensei Posted November 7, 2005 Posted November 7, 2005 $80 USD before shipping. Check the other thread "1/48 VF-1D Conversion Kit enquiries." It's out now, and ready to ship. Some people have already got it. Quote
valkyrietestpilot Posted November 7, 2005 Posted November 7, 2005 "vlenhoff",forum member "mechamaniac" has this kit from the cap.he was the 1st to get it i believe.the valk you see in the caps instructions in the beggining of this thread is actually the 1J he gave him to try the kit out on.he now has it completely finished at home.pm him,he can really give you a 1st hand opinion on it & maybe show you some pics of it finished Quote
Mechamaniac Posted November 7, 2005 Posted November 7, 2005 Actually, the Cap is the now owner of the VF-1J I donated for the conversion process. What can I say?, [godfather]He made me an offer I don' refuse[/godfather] However, I did get both the pigmented, and the non-pigmented versions of this kit, and they are AWESOME. You will not be disappointed if you snag one. Unfortunately, my conversion is sort of stalled right now since I ran out of paint, and had to order more. That's what I get for being a Tamiya junkie, and picking an obscure-ass color... Quote
promethuem5 Posted November 8, 2005 Posted November 8, 2005 Anyone know if you can use the metal pincs form teh toy instead of plastic rod? Seems more durable and more convient for my bc/ noone around me sells styrene stock... Quote
Mechamaniac Posted November 8, 2005 Posted November 8, 2005 Anyone know if you can use the metal pincs form teh toy instead of plastic rod? Seems more durable and more convient for my bc/ noone around me sells styrene stock... 343138[/snapback] The only pin you will have to provide is the one for the backpack hook. All other pins are the stock pins. Quote
