Only on graph paper and 2d plotting in solidworks today. (Maybe on Sat or Sun will have basic part of 3d model to post), Design will be based on YF 19, tweak a bit of the Battroid leg shape, Fighter swan neck curve, vertical stabilizer storage and etc.

Done basic shape (few days needed to fine tune the shape/angles ) > Time to chop in parts > adding details > Test assemble >adjusting > Test assemble >Prototype printing >Printed parts assemble test

Since making of 1/48 VF 22plus, why not start 1/48 VF 19plus

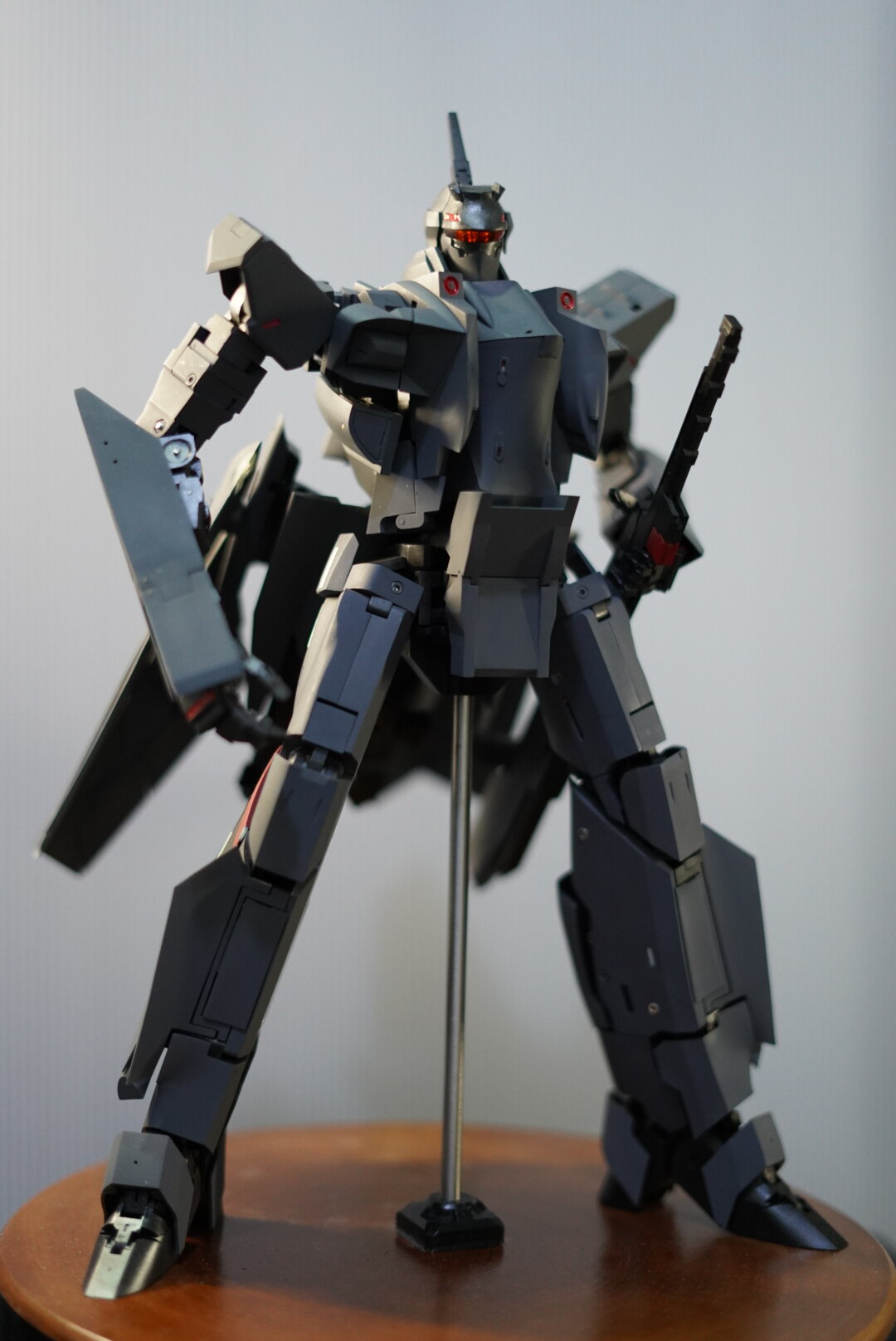

Confirmed side Fighter profile & Battroid profile VF-22 Plus Length 36.9 cm ± and Type 02 Length 37.8 cm, Type 01 Length 35.5 cm

Welcome !

@F18LEGIOSS2I'm excited to see your Legioss project, ideas you have put into it, etc. You can PM me if you have any question for the solidworks ya.

Yes, i have figure out a way to proper store the leg and we still have full main engine. I personally can't accept parts swapping or additional support parts hehe. [i sold my copy of bandai DX-YF 21, i try to accept it but i just can't do. That's why i start this project, i don't have another 10yrs wait for another version of YF/VF 21/22.]

Thanks (ﾉ◕ヮ◕)ﾉ*:･ﾟ✧

Taking references / inspirations from VF-X cover, hasegawa, yamato. (Ratio; Fighter nose to intake (4/4), intake to wing (4/4), wing to tips of stabilizer (2/4). Spec; a) must have engines display (removable cover), front intake actually have duct connected to hover mechanism and both rear engines. b) Battroid silhouettes have to close to Shoji Kawamori sensei's line art. c) transformation, wing platform as main core support of parts. d) have to look slim as nature of 21 & 22. d) named vf 22 plus is implement my transformation ideas into it, The silhouettes of fighter, gerwalk and battroid have to follow original creator. This are few specs i lists in my scoops.

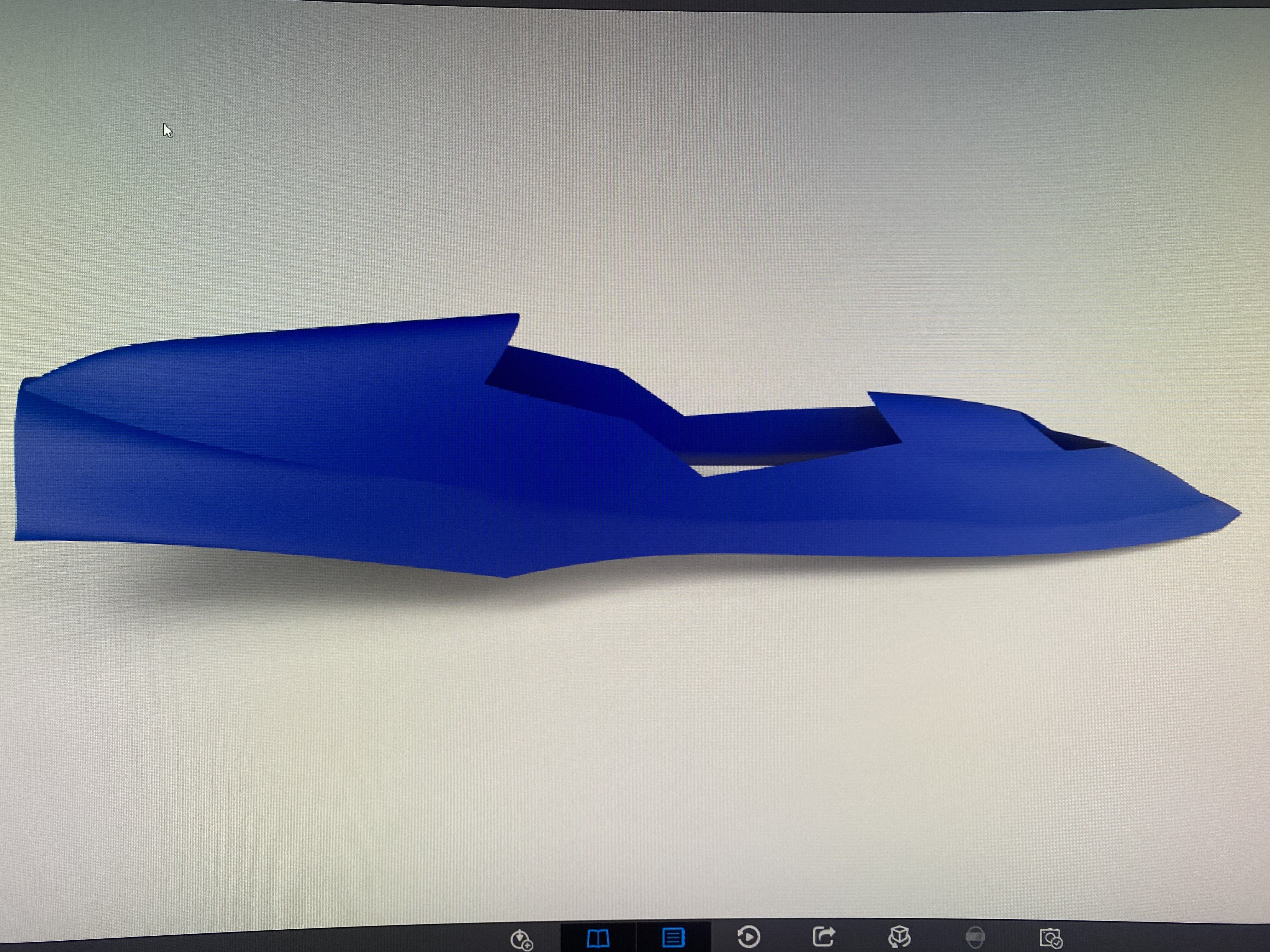

Initial block out in solidworks sketches for Battroid height close to Type 02 plus or minus

Thank you. Lists of Scoop of works; one of it is have to be far better than Bandai respectively.
